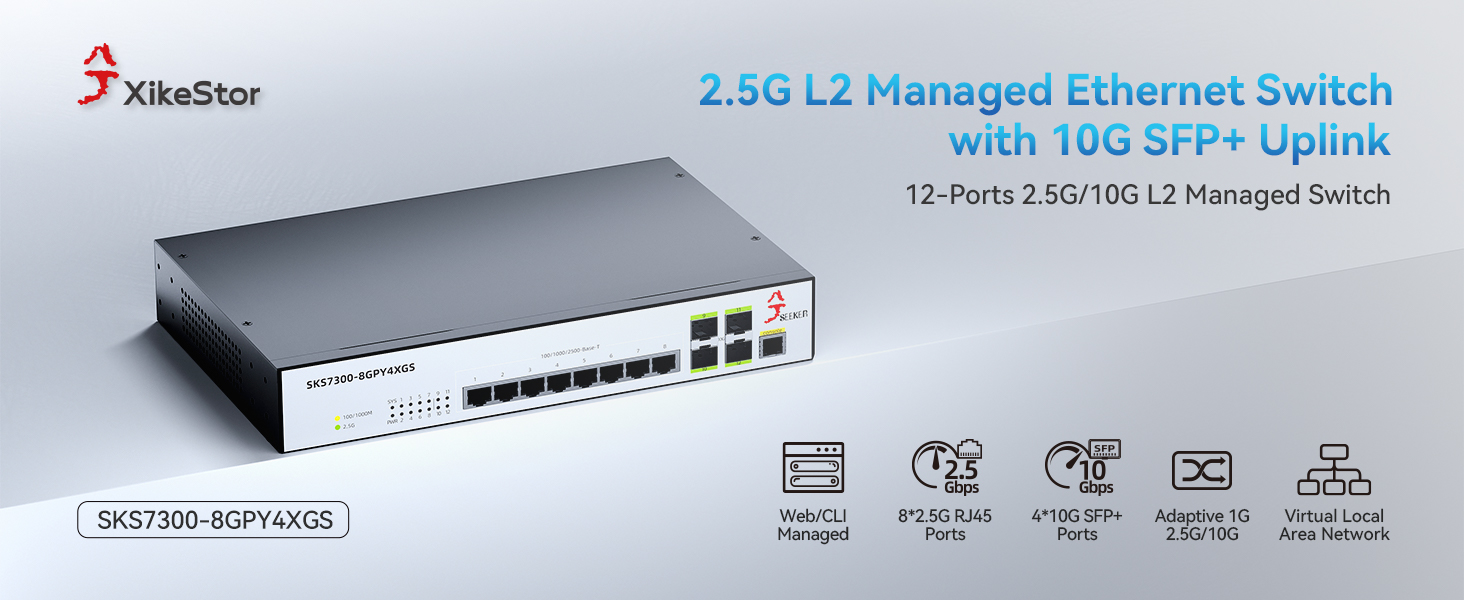

12-Port 2.5G L2 Managed Ethernet Switch, 2.5Gb Network Switch, 8X 2.5G RJ45 Ports & 4X 10G SFP+ Ports, VLAN/QoS/ACL/IGMP/STP/SNMP/LACP Support, Web Managed/CLI, Metal Casing, 19-in Rack-Mount

Price: $249.99
(as of Aug 14, 2024 22:02:14 UTC – Details)

Product Description

Product Specifications

Model SKS7300-8GPY4XGS Transmission Mode store-and-forward Backplane Bandwidth 120Gbps MAC Address Table 16K Jumbo Frame 12KByte Packet Forwarding Rate 89.28Mpps Port Features 8*2.5G RJ45 Ports & 4*10G SFP+ Ports Network Protocol IEEE 802.3(Ethernet) IEEE 802.3z(Gigabit Ethernet) IEEE802.3x(Flow Control) IEEE802.3u IEEE802.3ab IEEE802.3ad IEEE802.3an IEEE802.3bz IEEE802.1Q IEEE802.1p Network Medium 100BASE-TX: Cat5 and above unshielded twisted pair(≤100m) 1000BASE-TX: Cat5 and above unshielded twisted pair(≤100m) 2.5GBASE-TX: Cat5e and above unshielded twisted pair (≤100 meters) 1000BASE-X: MMF,SMF 10GBase-X: MMF,SMF 100BASE-SR: OM1/OM2/OM3 or above MMF(2m-300m) 100BASE-LR: IEC B1.1 and B1.3 SMF(2m-10000m) Size 280*220*44mm Power Input 100-240V Working Environment Operating Temperature: 0°C~40°C. Storage Temperature: -10°C~70°C. Working Humidity: 10%~90%, non-condensing. Storage Humidity: 5%~90%, non-condensing

XikeStor 2.5G&10G Switch

Add to Cart

Add to Cart

Customer Reviews

5.0 out of 5 stars
1

4.2 out of 5 stars
47

4.2 out of 5 stars
47

4.2 out of 5 stars
47

4.2 out of 5 stars
47

4.2 out of 5 stars
47

3.6 out of 5 stars
13

Price

$249.99$249.99

—

$59.99$59.99

—

—

—

—

Switch Type

L2 Managed

Unmanaged

Unmanaged PoE+

Web Managed

Web Managed

Unmanaged

L3 Managed

Port Speed

8*2.5G RJ45 & 4*10G SFP+

4*2.5G RJ45 & 2*10G SFP+

4*2.5G RJ45 PoE+ & 2*10G SFP+

4*2.5G RJ45 & 2*10G SFP+

8*2.5G RJ45 & 1*10G SFP+

8*10G RJ45

8*10G SFP+

VLAN

✔

✘

✘

✔

✔

✘

✔

PoE Power Budget

✘

✘

75W

✘

✘

✘

✘

Switching Capacity

120Gbps

60Gpbs

60Gpbs

60Gpbs

60Gpbs

160Gbps

160Gbps

Link Aggregation

✔

✘

✘

✔

✔

✘

✔

Versatile High-Speed Ports: Equipped with 8x 2.5G RJ45 ports (adaptive 100/1000/2500M) and 4x 10G SFP+ ports (adaptive 1G/2.5G/10G, compatible with various modules, DAC, and AOC cables), all supporting bidirectional transmission. Additionally, a console port is provided for command line usage, ensuring fast and stable data transfer. This 12 port 2.5gb managed switch is ideal for high-speed networking needs.
Comprehensive Layer 2 Management: Supports advanced features like QoS, VLAN, IGMP, LACP, STP, SNMP, multicast, MAC filtering, traffic control, Web/CLI management, and port mirroring. These functionalities enable efficient network optimization and robust security management, making it a perfect L2 managed switch and 2.5gb managed network switch for any setup.

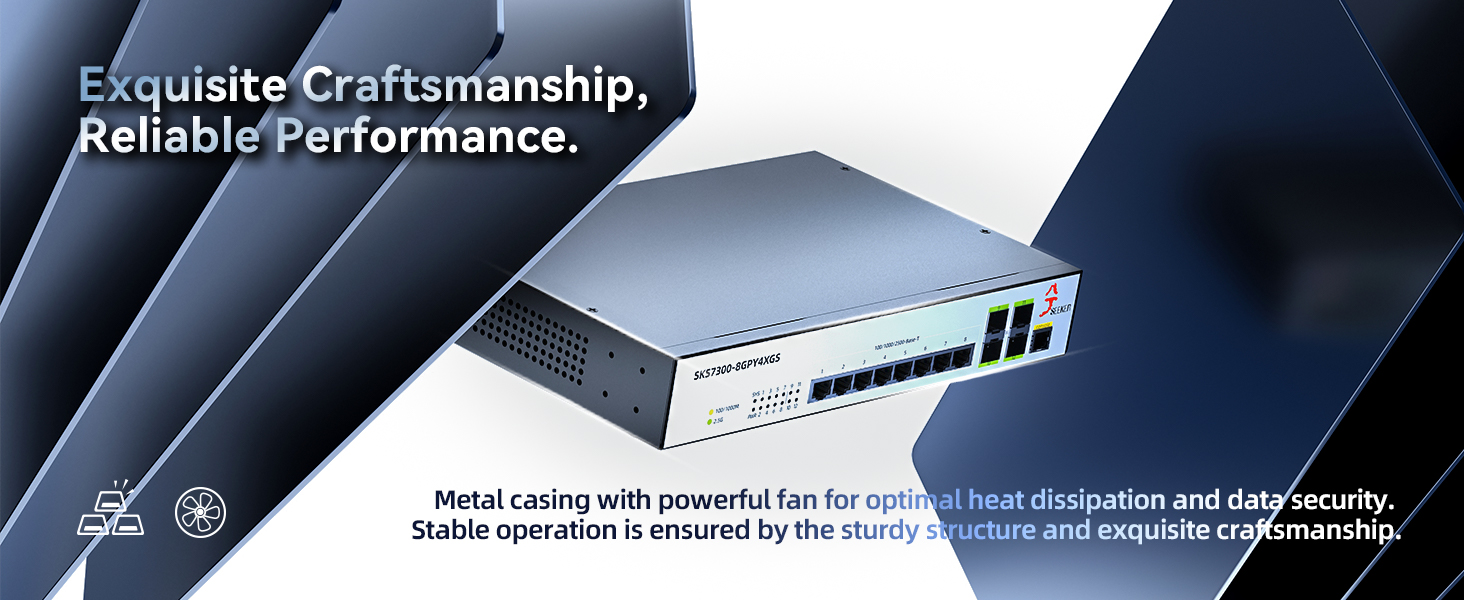

Durable and Efficient Cooling Design: Constructed with a metal chassis featuring side ventilation holes and an internal low-noise active cooling fan. This design ensures reliable performance, low power consumption, and effective heat dissipation. This 2.5 gigabit network switch combines durability with efficiency, ensuring longevity in computer networking switches.
Intuitive LED Indicators: Equipped with dynamic LED indicators that provide simple status notifications and fault detection signals, making it easy to monitor operation and troubleshoot issues quickly. The ethernet switch 2.5 gigabit offers clear visual feedback for network management.

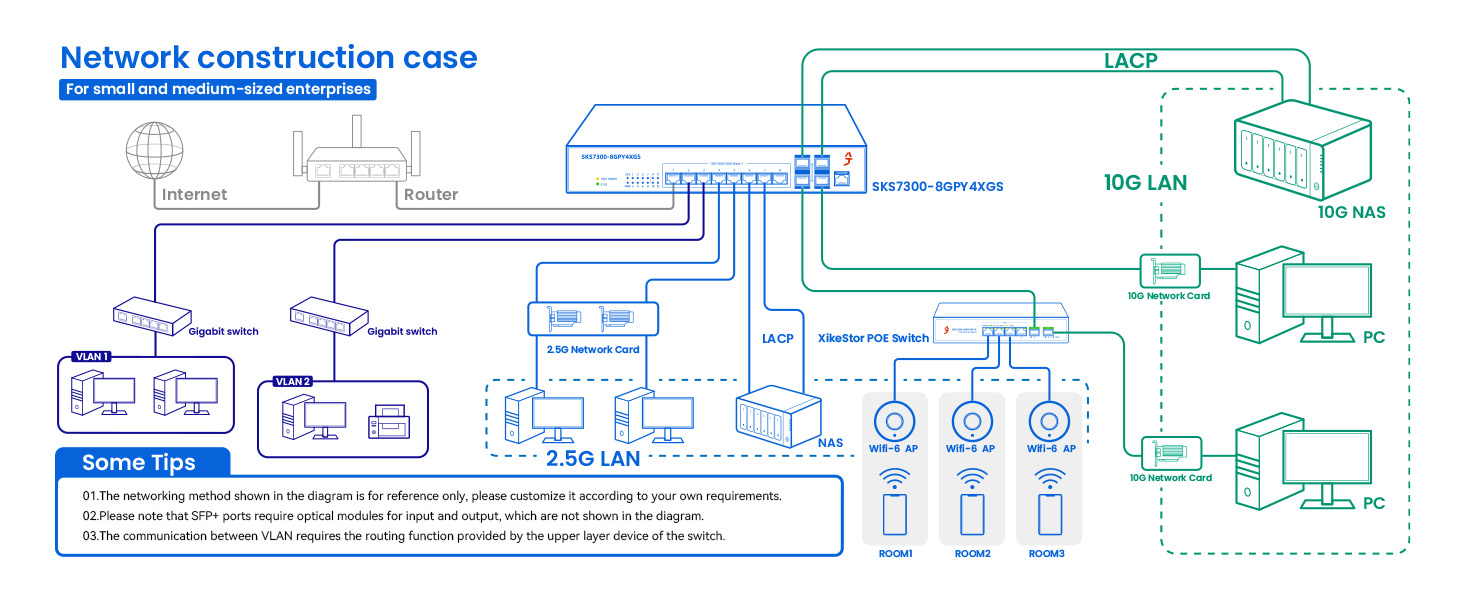

Universal Compatibility and Versatile Application: Perfect for various settings like school dormitories, surveillance systems, homes, and small businesses. Compatible with a wide range of devices, including network cameras, computers, printers, smart TVs, gaming consoles, APs, and NAS devices. This multigig switch is designed for easy 19-inch rack-mount installation, ensuring seamless integration into any sfp network switch setup.
