3 Port Hardened Industrial Gigabit Din Rail Switch,10/100/1000Mbps Ethernet Switch Din Rail 24V,8Gbps Switching Capacity,IP40 Rated Unmanaged Network Switch(-40~80°C)

Price: $49.00
(as of Jul 01, 2024 20:00:23 UTC – Details)

Product Description

Gigabit Industrial DIN-Rail Ethernet Switch 8Gbps Switching Capacity

Standards: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3ab 1000BASE-T, IEEE802.3z 1000BASE-X, IEEE802.3ae 10GBase-R, IEEE802.3p QoS, IEEE802.1d Spanning TreeB Forward & Filtering Rate: 14880pps (10Mbps), 148800pps (100Mbps), 1488000pps (1000Mbps) Packet Buffer Memory: 4Mbits Processing Type: Store-and-Forward Max Packet Length: 9K Bytes Jumbo Frame Address Table Size: 4K MAC Addresses Interface: 3 x 10/100/1000Base-T RJ45 + 1 x SFP 1000Base-X or 100Base-FX (auto detection) Input Power: 12~48VDC, 4-pin terminal block Power Consumption: <5W Operating Temperature: -40°C to 80°C (-40°F to 176°F) Storage Temperature: -40°C to 85°C (-40°F to 185°F) Mount Method Din Rail&Wall Mount

Industrial Gigabit Ethernet Switch

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.5 out of 5 stars
46

4.5 out of 5 stars
46

4.5 out of 5 stars
46

4.5 out of 5 stars
46

4.4 out of 5 stars
45

4.4 out of 5 stars
45

4.4 out of 5 stars
45

Price

$49.00$49.00

$39.90$39.90

$55.90$55.90

$89.00$89.00

$86.00$86.00

—

$229.00$229.00

Ethernet Port

3*RJ45+1*1G SFP

4*RJ45+1 Uplink

4*RJ45+1G SFP

4*PoE RJ45+1*1G SFP

8*RJ45+2*Uplink

8*RJ45+2*1G SFP

8*RJ45+4*1G SFP+2*10G SFP+

Uplink Port

/

5 RJ45

/

/

10 RJ45

/

/

PoE Support

No

No

No

Yes

No

/

/

PoE Standard

/

/

/

802.3af(15.4W), 802.3at(30W)

802.3af(15.4W), 802.3at(30W)

/

/

PoE Power Output

/

/

/

120W(30W Per Port)

/

/

/

Power Input

12-48V DC,Redundant Power

12-48V DC,Redundant Power

12-48V DC,Redundant Power

12-48V DC,Redundant Power

12-48V DC,Redundant Power

48~57V DC, Redundant Power

48~57V DC, Redundant Power

Switch Capacity

8Gbps

10Gbps

10Gbps

10Gbps

20Gbps

20Gbps

32Gbps

Power Comsuption

<5W

<5W

<6W

<132W

<10W

<5W

<16W

Processing Type

Store-and-Forward

Store-and-Forward

Store-and-Forward

Store-and-Forward

Store-and-Forward

Store-and-Forward

Store-and-Forward

Max Packet Length

9K Bytes Jumbo Frame

9K Bytes Jumbo Frame

9K Bytes Jumbo Frame

9K Bytes Jumbo Frame

9K Bytes Jumbo Frame

9K Bytes Jumbo Frame

9K Bytes Jumbo Frame

Address Table Size

4K MAC Addresses

4K MAC Addresses

4K MAC Addresses

4K MAC Addresses

8K MAC Addresses

8K MAC Addresses

8K MAC Addresses

Mount Method

Din-Rail&Wall Mount

Din-Rail&Wall Mount

Din-Rail&Wall Mount

Din-Rail&Wall Mount

Din-Rail

Din-Rail

Din-Rail

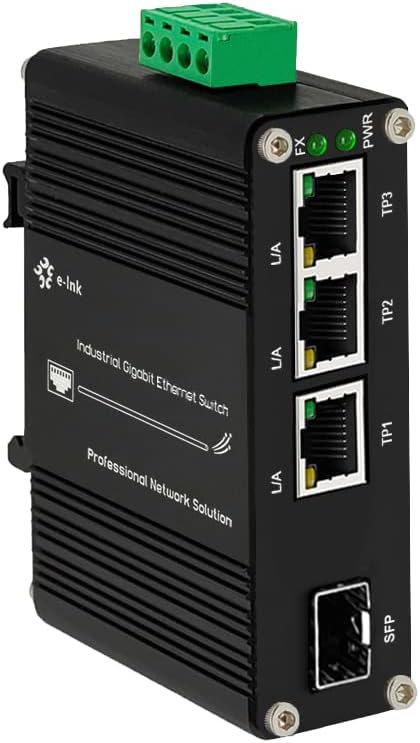

【10 10/100/1000Mbps Ethernet Port】This network switch include 3 10/100/1000Base-T RJ45 with Auto MDI/MDI-X, and 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection).
【Dual Redundant Power】The Industrial Network Switch with DC 12-48V wide voltage inputs to provide Redundant Power inputs with function of overload current protection and anti-reverse connection protection. Support 2-way industrial grade power interface input, switchover when 1-way fails, high reliability ensures continuous operation.
【Widely Used】The Industrial Switch Featured with IP40 Aluminum protection grade, it can work in a wide temperature range from -40°C to 80°C (-40°F to 176°F). 6KV lightning protection, adapt to various harsh environments. Widely used in IP cameras, VoIP Phone, Computer Networks etc.
【Unmanaged Plug & Play】No configuration needed, easy to use, LED Indicator to signal the device status, you can quickly to check the working status and troubleshoot ports of the Industrial Ethernet Switch.
【Din-Rail & Wall Mount】The Hardened Ethernet Switch comes with 35mm Din-rail Clip and Wall mount accessories.
