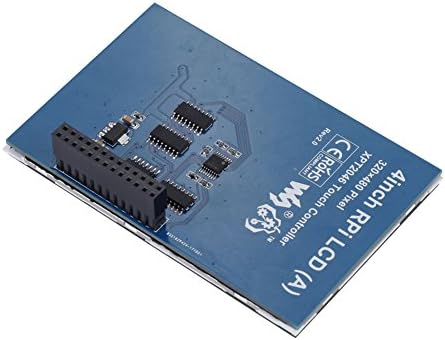

4 Inch TFT Touch Screen , 480×320 Resolution Touch Display with Protective Acrylic Case , SPI interface Designed for Raspberry Pi A , B , B and Raspberry Pi 2 , 3 & Raspbian

Price: $28.79
(as of Apr 08, 2024 10:21:13 UTC – Details)

Specification:
Features:

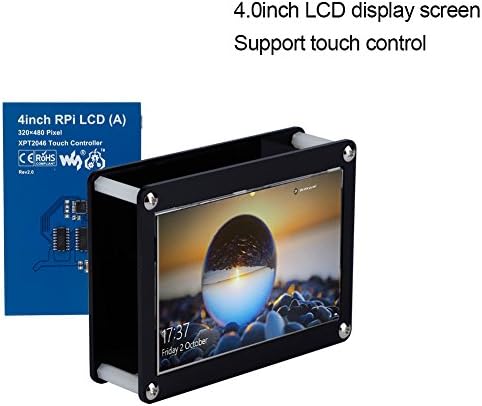

1. 4.0inch LCD display screen, supports touch control.
2. It is designed for , easy to use.
3. It is compatible for A+, B, B+ and 2, 3.

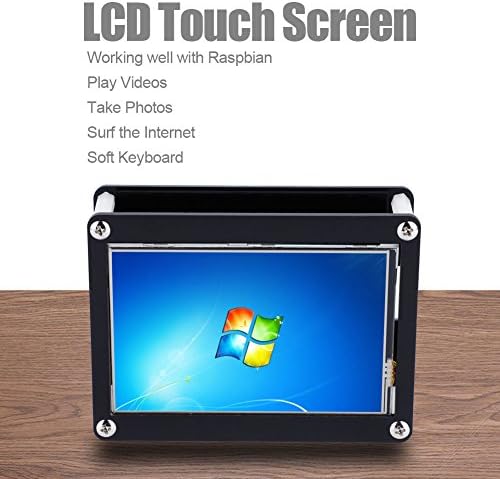

4. Working well with Raspbian, it supports playing video, taking photos with 17 camera mode surfing the Internet and soft keyboard which allows you control the system without mouse and keyboard.

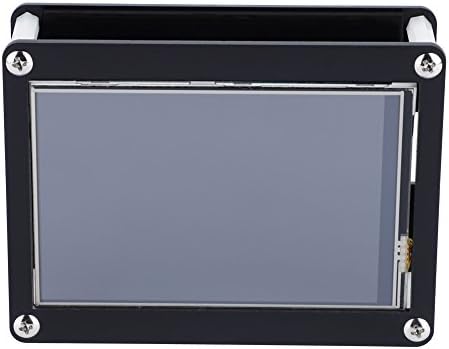

5. Black acrylic case to the screen, easy to install.

Specifications:
LCD Type: TFT
LCD Interface: SPI
Touch Screen Type: Resistive

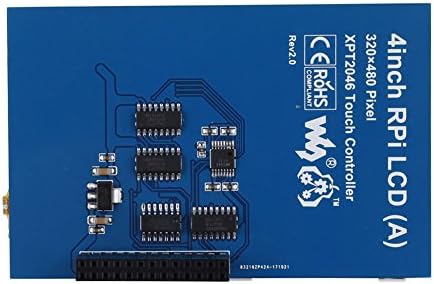

Touch Screen Controller: XPT2046
Resolution: 480*320()
Backlight Current: TBD
Operating Temp: TBD

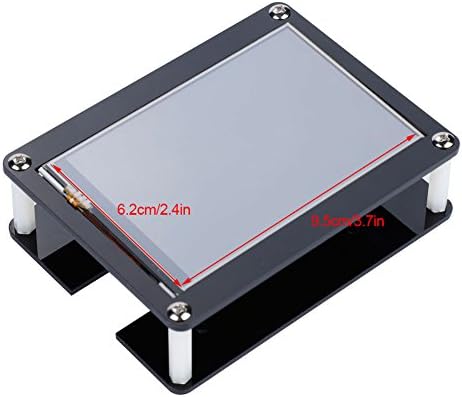

LCD Screen Size: 9.5 * 6.2cm / 3.7 * 2.4inch
Black Acrylic Size: 10.8 * 8.2 * 0.3cm / 4.3 * 3.2 * 0.1
Weight: Approx. 154g
PIN NO.SYMBOLDESCRIPTION
1, 173.3VPower Positive (3.3V Power Input)
2, 45VPower Positive (5V Power Input)
3, 5, 7, 8, 10, 22NCNC
6, 9, 14, 20, 25GNDGround
11TP_IRQTouch Panel Interrupt, Low while the Touch Panel detects touching
12KEY1Key
13RSTReset
15LCD_RSLCD Instruction Control, Instruction/Data Register selection
16KEY2Key
18KEY3Key
19LCD_SI / TP_SISPI Data Input of LCD/Touch Panel
21TP_SOSPI Data Output of Touch Panel
23LCD_SCK / TP_SCKSPI Clock of LCD/Touch Panel
24LCD_CSLCD Chip Selection, Low Active
26TP_CSTouch Panel Chip Selection, Low Active
Package Include:
1 x LCD Screen

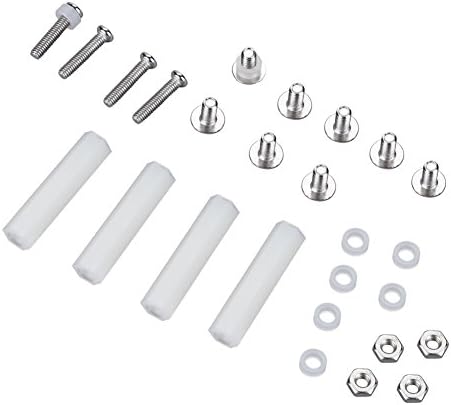

1 x Set of Screws

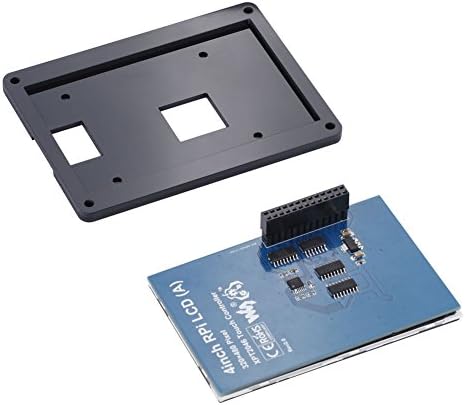

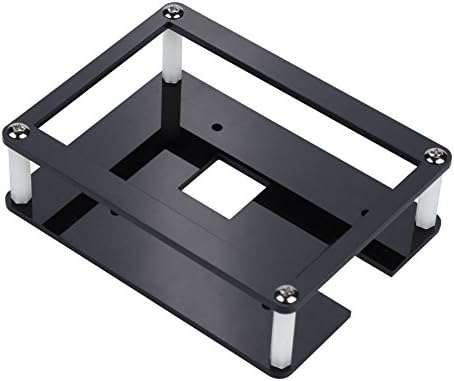

1 x Case(2Pcs Acrylic)

4.0inch LCD display screen, supports touch control.
It is designed for Pi, easy to use.
It is compatible for Pi A+, B, B+ and Pi 2, 3.
Working well with Raspbian, it supports playing video, taking photos with 17 camera mode surfing the Internet and soft keyboard which allows you control the system without mouse and keyboard.
Black acrylic case to protect the screen, easy to install.
