48 Port Gigabit PoE Switch Unmanaged with 48 Port IEEE802.3af/at PoE+@400W, 2 x 1G SFP, NICGIGA 50 Port Network Power Over Ethernet Switch, Desktop/Rackmount

Price: $299.99
(as of Jun 25, 2024 02:00:12 UTC – Details)

Product Description

NICGIGA 48 Port Gigabit PoE Switch Unmanaged

48-port full Gigabit PoE unmanaged Ethernet switch. Provide 48*10/100/1000M RJ45 ports, with 2 Gigabit SFP ports, 1-48 Port support PoE+ @ IEEE802.3af/at. The maximum power of a single port supports 30W. The total power is 400W.

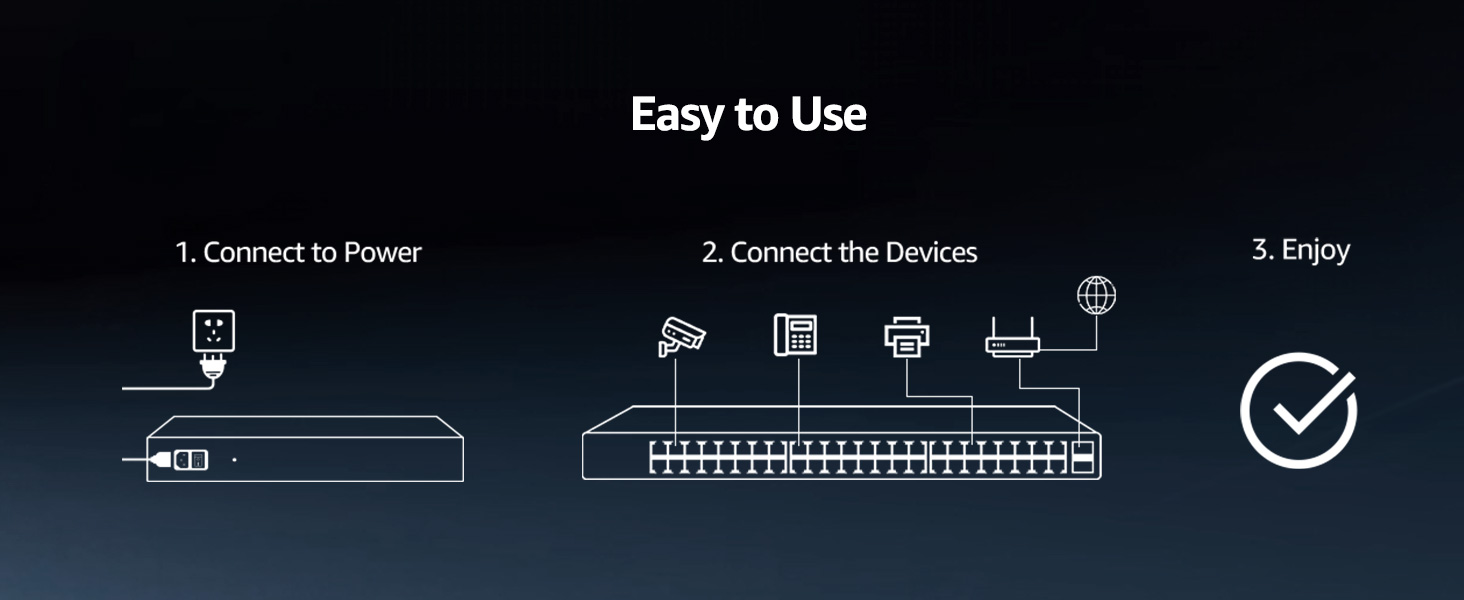

1 Easy to Use 2 Identify PD Devices 3 Specifications

Product Specifications

Model GS4802P PoE Port 48*10/100/1000Mbps PoE Port PoE Standard IEEE802.3af/at;15.4W/30W Total PWR / Input Voltage 400W (100-240V) Ethernet Port Feature 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive Switching Capacity 100Gbps (non-blocking) Forwarding Rate 74.4Mpps MAC 8K Buffer Memory 4M Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000base-X; IEEE802.3u 100Base-FX; IEEE802.3x. Power Supply Built in switching power supply, AC100~240V 50-60Hz Dimension (inch) 16.9 x 11.4 x 1.7 Weight (lbs) 8.6 Protection IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV Installation Method desktop type, 19-inch 1U cabinet installation Operation TEMP / Humidity -20~+55°C:5%~90% RH non condensing

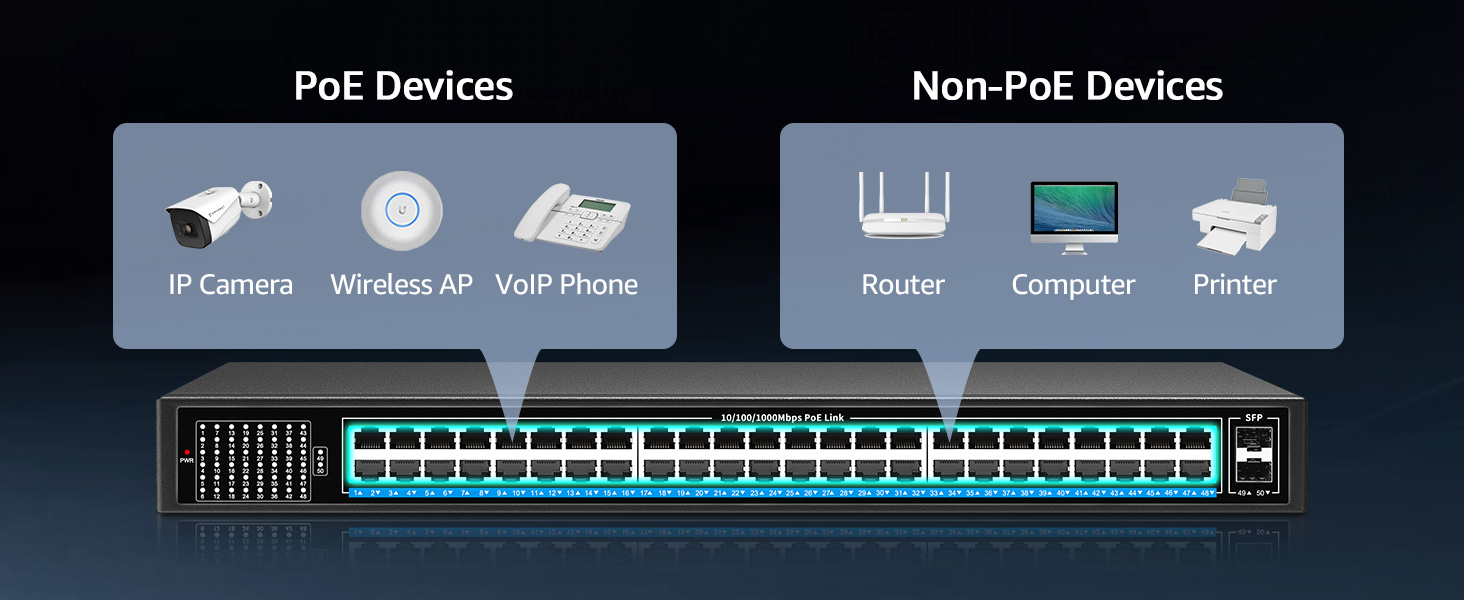

Can it work with PoE devices and non-PoE devices?

Yes it is , the poe ports are automatically dectected the devices, if you use poe devices, it will supply the power, if non devices, there will be no power , just network transmit. if you don’t use poe function, it will work like normal switch.

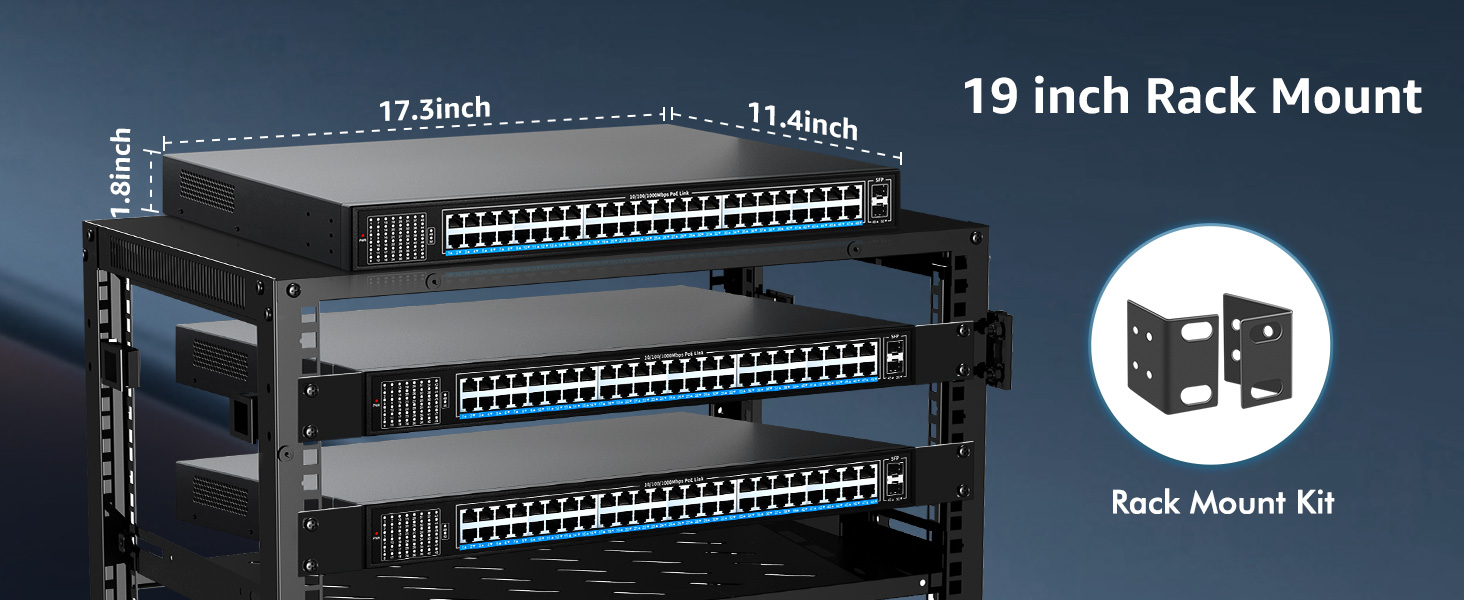

The description says rack mountable. Does it come with rack mount ears?

Yes. It comes with a set of rack mount ears.

Does it support 24V passive PoE?

NO. It is a standard PoE switch supporting 48V PoE devices. Non-standard 24V passive PoE is not supported.

Can these poe switches work with ubiquiti devices?

If your ubiquiti device supports standard 48V POE devices then it will work together.

Comparison of GS4802P with other NICGIGA products

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.3 out of 5 stars
175

4.3 out of 5 stars
175

4.1 out of 5 stars
161

4.4 out of 5 stars
78

4.5 out of 5 stars
246

4.1 out of 5 stars
75

4.5 out of 5 stars
246

Price

$299.99$299.99

$119.99$119.99

$116.99$116.99

$64.99$64.99

$69.99$69.99

$45.99$45.99

—

Port Speed

48×10/100/1000Mbps

16×10/100/1000Mbps

24×10/100Mbps

4×10/100/1000/2500Mbps

5×100/1000/2500Mbps

4×10/100/1000Mbps

8×100/1000/2500Mbps

Support 802.3af/at PoE

✔

✔

✔

✔

✘

✔

✘

Uplink Port

2×1000Mbps SFP

2×1000Mbps

2×1000Mbps

2x10G SFP

1x10G SFP+

1×1000Mbps

1x10G SFP+

Lightning Protection Level

4KV

4KV

4KV

6KV

4KV

4KV

6KV

Switch Capacity

100Gbps

36Gbps

12Gbps

60Gbps

45Gbps

12Gbps

60Gbps

PoE Power Max

400W

250W

320W

78W

–

78W

–

VLAN

✘

✔

✔

✘

✔

✔

✔

Dimension (inch)

16.9 x 11.4 x 1.7

12.2*7.1*1.7

12.3*7.3*1.8

7.9*4.6*1.7

6.3*4.3*1.3

8.1*6.7*1.9

8.3*4.3*1.3 8+1

Weight (lbs)

8.6

4.59

4.7

2.2

1.2

1.98

1.65

Fanless Design

✘

✔

✔

✔

✔

✔

✔

48-port Gigabit PoE+ switch with 48 PoE+ 10/100/1000 Mbps RJ45 ports, 2 Gigabit uplink SFP ports. SFP ports can provide more bandwidth and connect different devices such as routers, NVRs, etc.

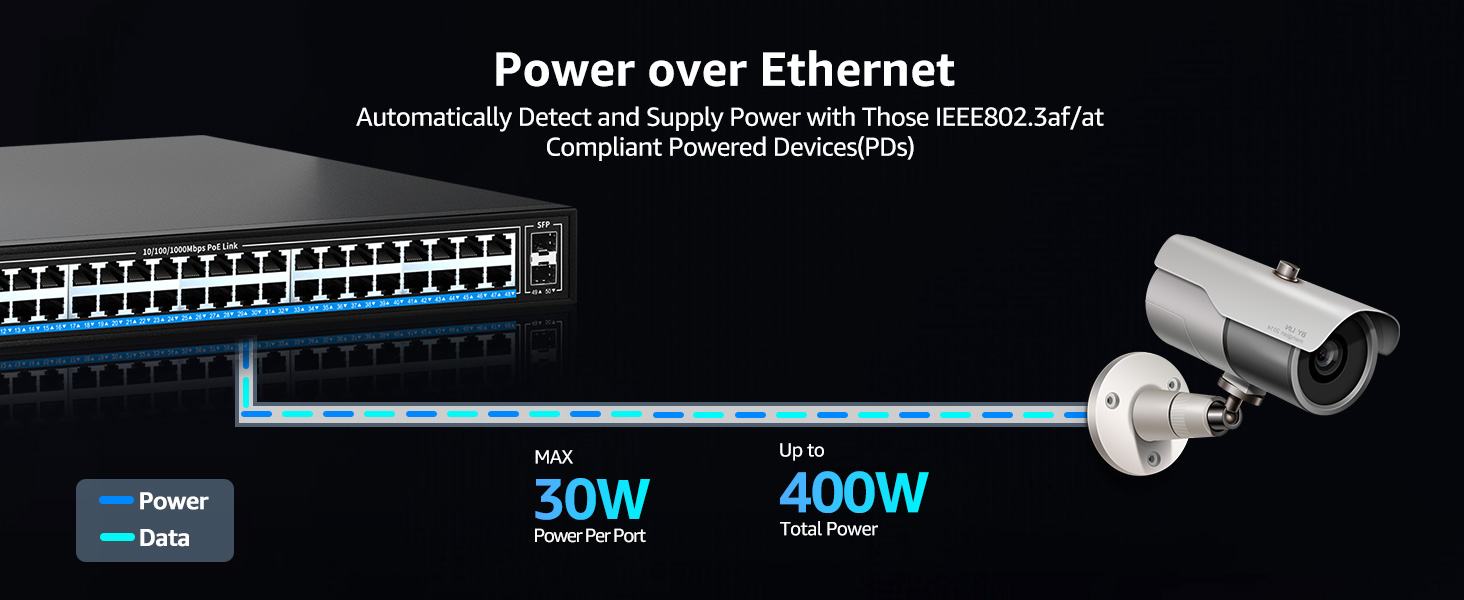

Supporting IEEE 802.3af/at, each port provides up to 30W of power and a total PoE power budget of 400W. Widely used in HD IP cameras, IP phones, wireless access points, computer network equipment and other scenarios. 【Please note: not support passive PoE.】
4KV lightning protection design can protect products and equipment from damage even in bad weather. With industrial-grade fan and metal shell to ensure good heat dissipation and stability of the device. Supports desktop and rack mounting (built-in mounting ears).
Unmanaged plug and play, support power detection function, automatic detection of PD devices, compatible with non-POE devices to provide data connection, no software or configuration required, support automatic MDI/MDIX and non-blocking data forwarding.
Every NICGIGA PoE switch is rigorously tested for reliability, quality and performance. We provide a one-year warranty and lifetime technical support for the entire product.
