5 Port Gigabit Ethernet Switch|Mini Metal Housing Switch|Plug&Play|Fanless Design| Desktop Ethernet Splitter |Quiet Unmanaged Network Switch

Price: $9.99
(as of Apr 15, 2024 09:21:18 UTC – Details)

Product Description

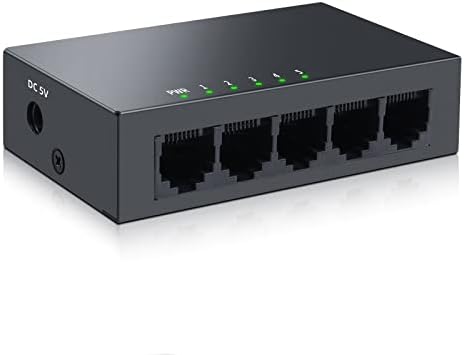

SODOLA 5 Port Gigabit Unmanaged Network Switch(SL-SWG0050)

1.Apply to IEEE802.3、IEEE802.3u、IEEE802.3ab standard; 2.Ethernet ports support 10/100/1000M adaptive; 3.Support Auto MDI/MDIX;4.Panel indicators to monitor working status and help fault analysis; 5.Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard

The SL-SWG0050 Other Performance Network Switch Protection

Features 4KV Lightning protection and provide product- replace- without- repair service within 1 year, more concern on your using experience.

10Gbps Switching Capacity

Larger Switching capacity to speed up the transmission of large files and improve transmission efficiency

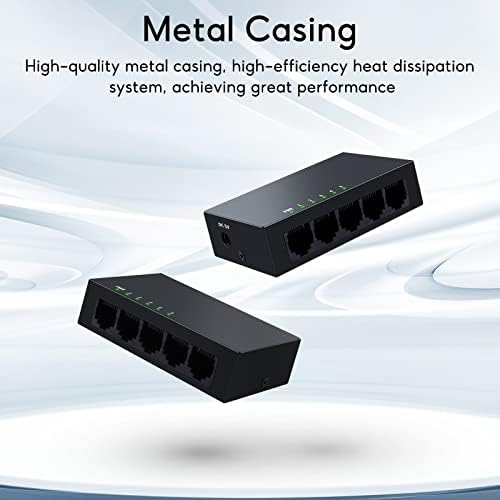

Metal Casing&Quiet Operation

This switch has a metal body and fanless silent design. Better heat dissipation than other plastic housing network switch.

Working Environment

Working Temperature：-10~50°C

Storage Temperature：-40~70°C

Working Humidity ：10%~90%，non-condensing

Storage Temperature：5%~90%，non-condensing

1 2

5 Port Network Switch

SODOLA Network Switch

SL-SWG0050

Model Name

SL-SWG1080

5*Gigabit RJ45 Port

Ethernet Port

8*Gigabit RJ45 Port

10Gbps

Switching Capacity

16Gbps

Non-PoE

PoE Function

Non-PoE

Unmanaged/Plug&Play

Setup

Unmanaged/Plug&Play

SL-SWG0050

Model Name

SL-SWG1016D

5*Gigabit RJ45 Port

Ethernet Port

16*Gigabit RJ45 Port

10Gbps

Switching Capacity

32Gbps

Non-PoE

PoE Function

Non-PoE

Unmanaged/Plug&Play

Setup

Unmanaged/Plug&Play

SL-SWG0050

Model Name

SL-SWG10240D

5*Gigabit RJ45 Port

Ethernet Port

24*Gigabit RJ45 Port

10Gbps

Switching Capacity

48Gbps

Non-PoE

PoE Function

Non-PoE

Unmanaged/Plug&Play

Setup

Unmanaged/Plug&Play

SL-SWG0050

Model Name

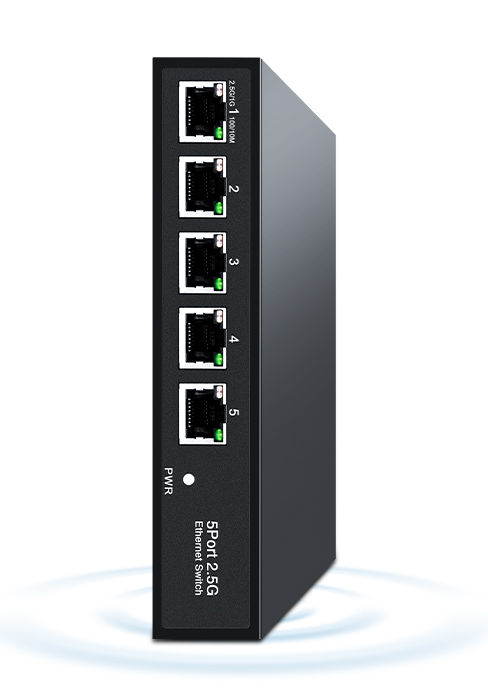

SL-SGT105

5*Gigabit RJ45 Port

Ethernet Port

5*2.5G RJ45 Port

10Gbps

Switching Capacity

128Gbps

Non-PoE

PoE Function

Non-PoE

Unmanaged/Plug&Play

Setup

Unmanaged/Plug&Play

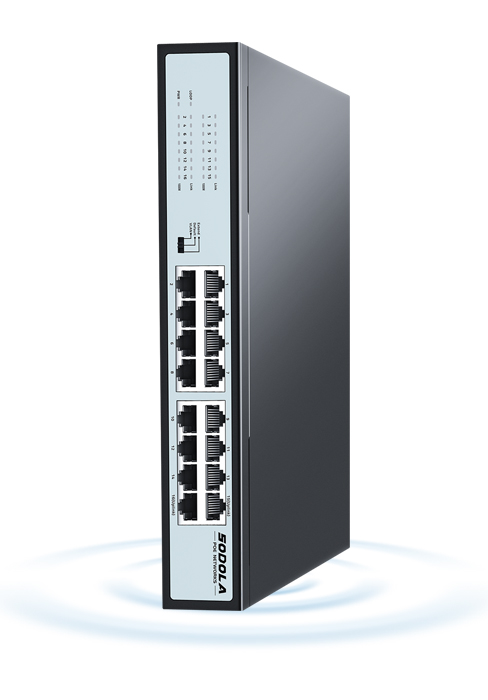

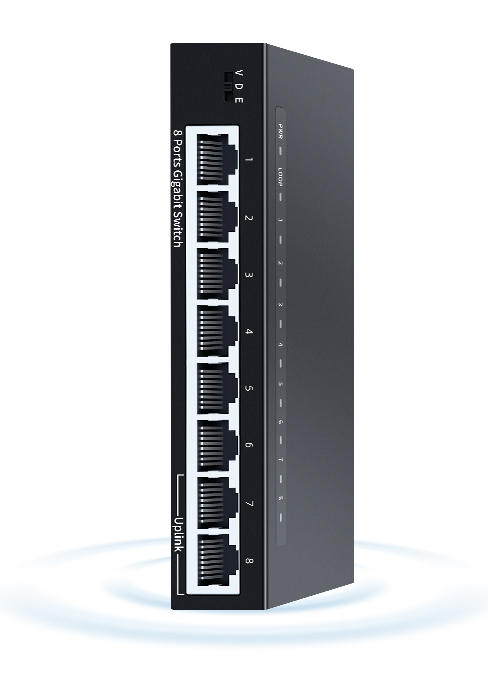

8 Port Network Switch 16 Port Network Switch 24 Port Network Switch 2.5G Network Switch

Product Specifications of SODOLA 5 Port Gigabit Ethernet Switch SL-SWG0050

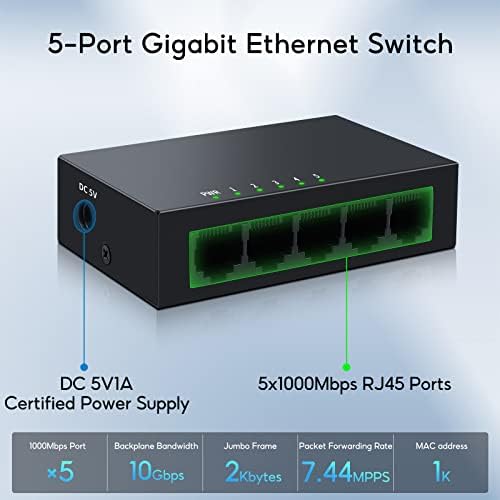

Power DC 5V Ethernet 5*Gigabit RJ45 Ports Switching Capacity 10Gbps Throughput 7.44Mpps MAC Address 1K Jumbo Frame 2Kbytes Transfer Mode Store and forward Network Protocol IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) Industry Standard EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-5(Surge) Network Medium 10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) Working Environment Working Temperature：-10~50°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing LED Indicators PWR（Power indicator）、Link（Network Link） Link On: 10/100/1000M link connection is normal Blinking: Data transmission is normal Off: link failure PWR On: power on Off: no power Structure Size Product Size：87*54*23mm Packing Size：90*88*58mm Product Weight：0.13Kg Packing Weight：0.20Kg Operating Voltage Power interface: DC2.1

【5 Port Gigabit Switch】5×10/100/1000Mbps RJ45 Ports supporting Auto Negotiation and Auto MDI/MDIX. The 5-port Gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs,greatly expand network capacity.

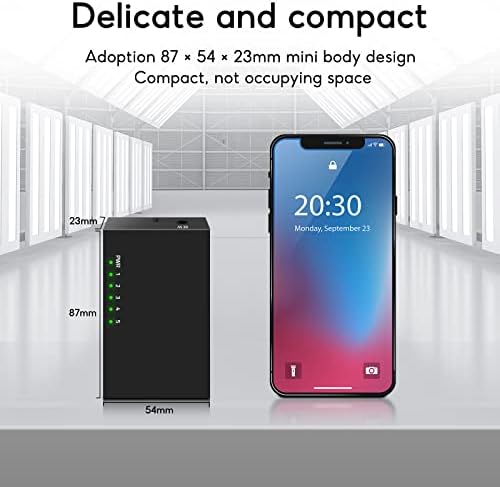

【Mini Metal Casing】The switch is shaped of very delicate and compact size(3.4*2.1*0.9in),with 10Gbps switching capacity which is mini switch for better performance.
【Silent operation】It completely solves the problem of noise of small switches in the office environment through the fanless mute design.IEEE 802. 3X flow control provides reliable data transfer.

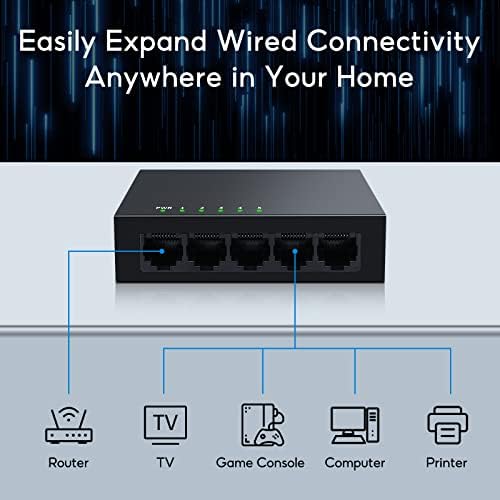

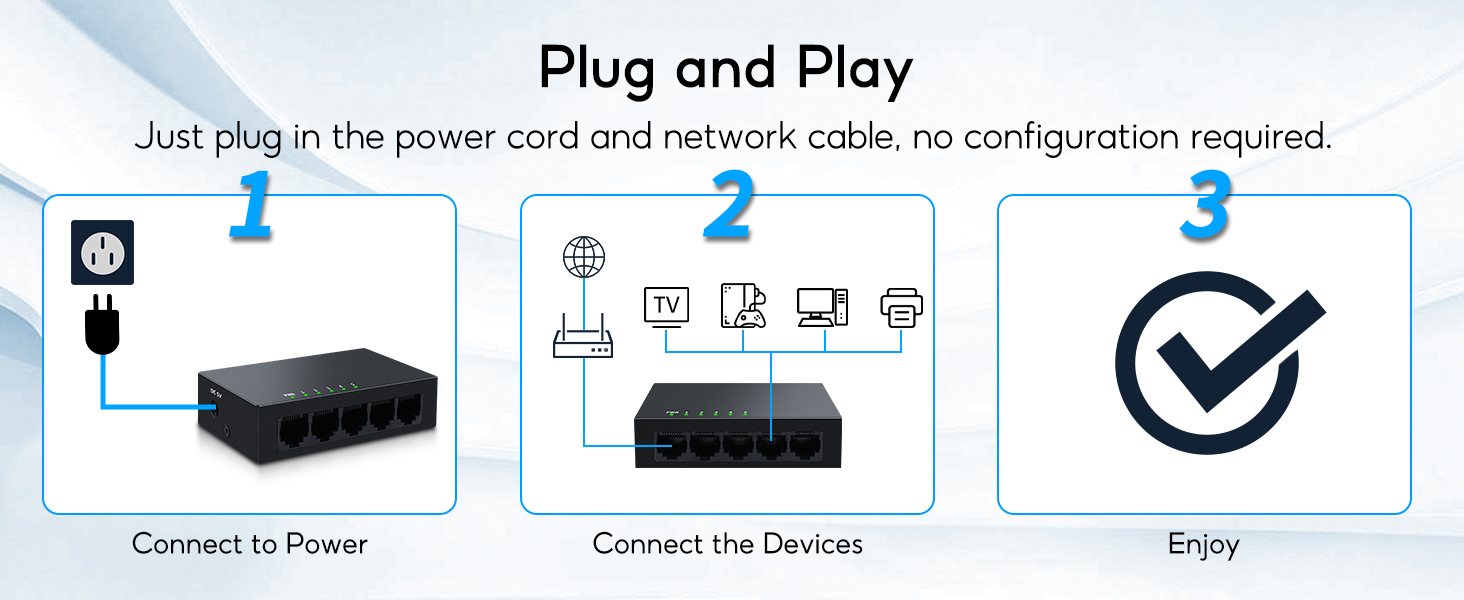

【Plug and Play】Easy setup with no software installation or configuration needed.
【Energy Saving】SODOLA green technology, save energy and improve product life. It saves energy, reduces power consumption and overall heat generation, and optimizes the operation of each port.Moreover,we committed to provide product- replace- without- repair service within 1 year, more concern on your using experience.
