5 Port Gigabit PoE Switch, 4 Port PoE 78W, Gigabit Ethernet Unmanaged Network Switch, Sturdy Metal Housing, Plug and Play, Traffic Optimization

Price: $39.99
(as of Apr 16, 2024 09:20:16 UTC – Details)

Product Description

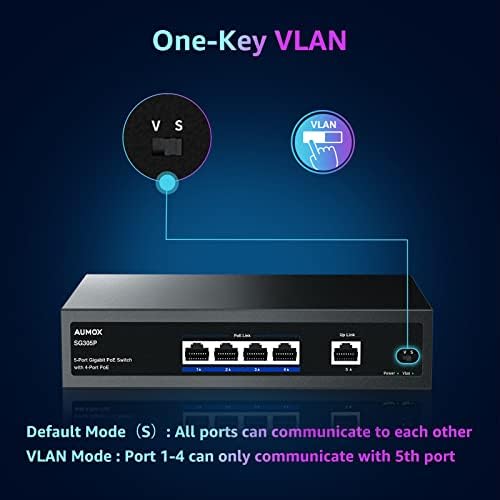

One-Key VLAN

VLAN Mode: Ports 1-4 are isolated from each other for reducing the size of broadcast domains and more security.

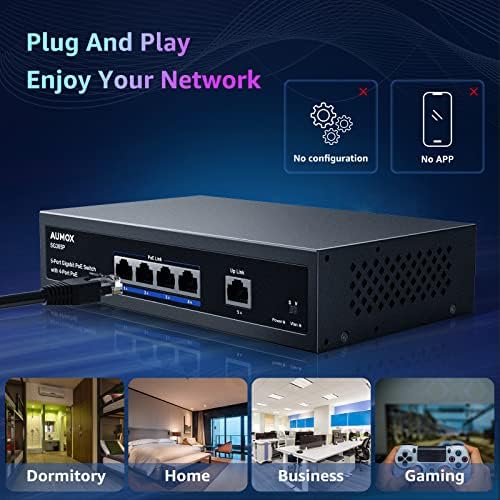

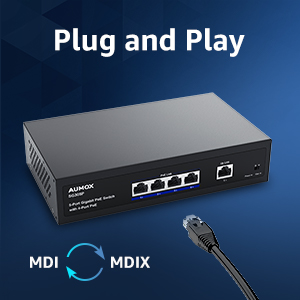

Plug and Play

Just plug in the power cord, connect the ethernet cable directly to the device, no need configuration and APP.

Fanless Metal Housing

Sturdy metal casing makes the POE switch reliably in various environments. Powerful cooling feature and less noise to ensure stability.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.6 out of 5 stars
6,710

4.6 out of 5 stars
6,711

4.6 out of 5 stars
6,710

4.6 out of 5 stars
6,710

4.6 out of 5 stars
6,710

Price

$129.75$129.75

$199.75$199.75

$59.99$59.99

$39.99$39.99

—

Ethernet Ports
18 28 8 5 8
Max Ethernet Speed
10/100/1000Mbps 10/100/1000Mbps 10/100/1000Mbps 10/100/1000Mbps 10/100/1000Mbps
Case Material
Metal Metal Metal Metal Metal
Incl.PoE Ports
16 24 8 4 /
PoE Power Output
250Watts 400 Watts 120 Watts 78 Watts /
PoE Supported

✓

✓

✓

✓
/
Fast Cooling

✓

✓

✓

✓

✓

For Small Business

✓

✓

✓

✓

✓

Technical Details

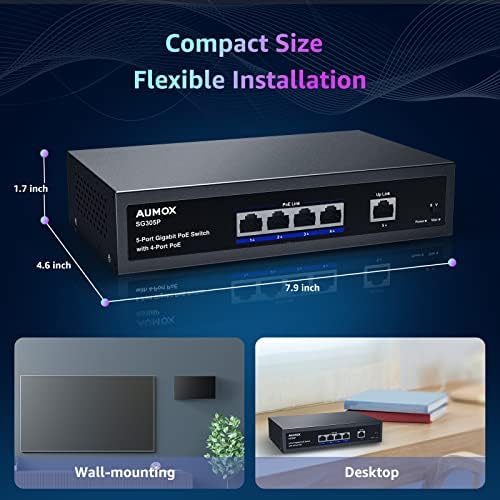

Model SG305P (4 PoE Ports) PoE Port 4×10/100/1000Mbps Uplink Port 1×10/100/1000Mbps PoE Supply Port 1 to Port 4 support standard IEEE802.3at/af power(maximum power for each port is 30W)， PoE power type is end-span(12+, 36- line pair) Power AC：100-240V~50/60Hz DC：52V /1.45A（Power Adapter Output） Power Consumption In full configuration：78 W Power Supply：≤78 W Switching capacity 10 Gbps Standards&Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at Lightning protection Differential mode: 3KV; Common mode: 4KV Dimensions 7.87inch * 4.64inch * 1.73inch (200mm*118mm*44mm) One-key mode VLAN Mode:If “vlan mode” is enabled, VLAN isolation is enabled. Port 1-4 will be isolated respectively but can communicate with the Uplink port. Default Mode:If Default mode is enabled, the device works as a general switch and all ports support 10/100/1000Mbps auto-negotiation.

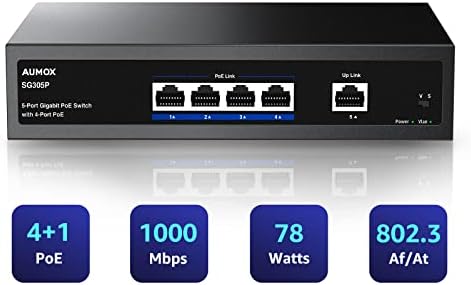

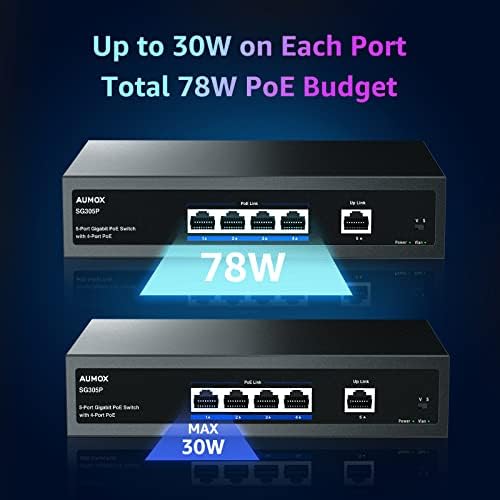

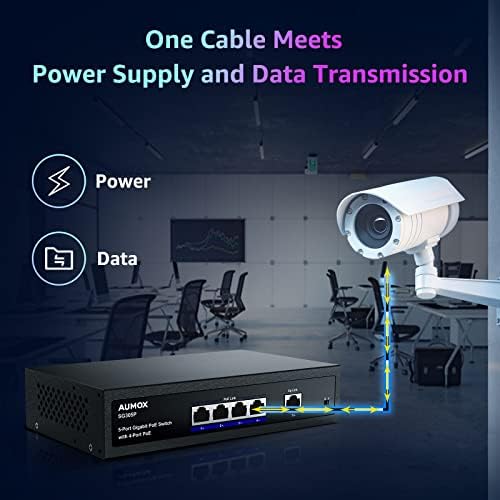

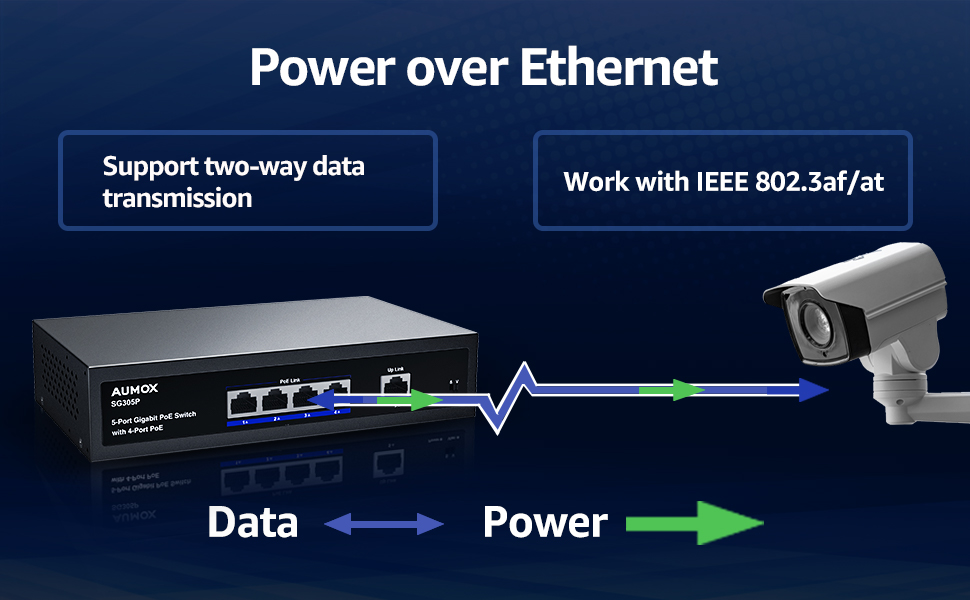

【4-Port 78W PoE】Designed with IEEE802.3af/at standard, Aumox PoE ethernet switch can transmit network data and power at the same time. This gigabit switch offers a maximum 78W PoE power output in total. Single-port POE power up to 30W, meets power supply requirements of various applications.

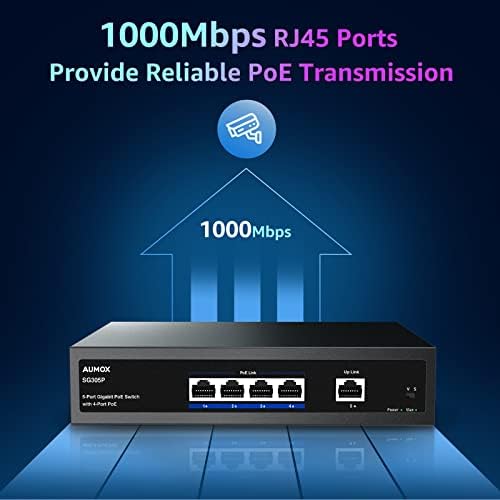

【Gigabit Ethernet】Aumox network switch features 100/1000 Mbps ports, enables ultra-fast wired connectivity and instant large files transferring. Unmanaged gigabit switch, easy to setup, plug and play.
【One-Key VLAN】Supports one-key VLAN mode, and ports are isolated from each other. Effectively suppress network faults such as network storms, ensuring good network transmission performance and security.
【Reliable Fanless Metal Housing】Metal housing design makes the PoE switch reliable to use in different use cases. Fanless design give you a quiet and noise free environment.
【Intelligent Recognition】Intelligently identify whether the IP terminal supports power supply,protect powered device.
