5-Port Industrial Ethernet Switch, Unmanaged 10/100Mbps DIN-Rail Network Switch, IP40, Operating Temperature Range of -30°C– 75°C (-22°F – 167°F)

Price: $32.99
(as of Jun 26, 2024 08:00:14 UTC – Details)

Product Description

Does this industrial switch include a power supply?

No, the power supply is sold separately.

What temperature range can this industrial ethernet switch handle?

The operating temperature is -30℃～75℃（-22℉ ~ 167℉）

Does this device come with a din rail?

No, this industrial network switch support 35mm din rail, but the din rail is not included in the package.

Is this fast ethernet industrial switch fanless?

Yes, it is fanless and can operate more quietly.

Does it require software installation?

No, this device is unmanaged industrial switch, plug and play, no configuration needed.

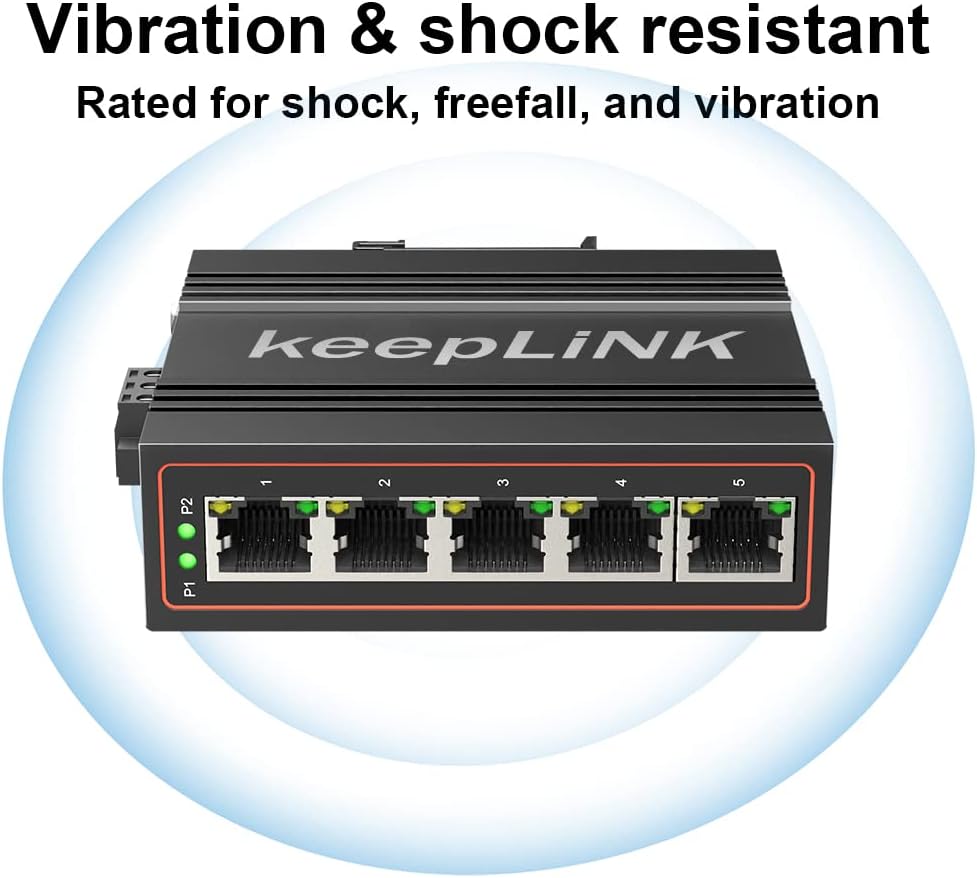

Anti-vibration

keepLiNK industrial ethernet switches are designed to withstand high levels of vibration and shock.

Anti-static

Special design to prevent static interference can make the unmanaged network switch operate more stably.

4KV Lightning Protection

With power supply surge protection and network interface surge protection which can effectively prevent the device from being damaged by lightning.

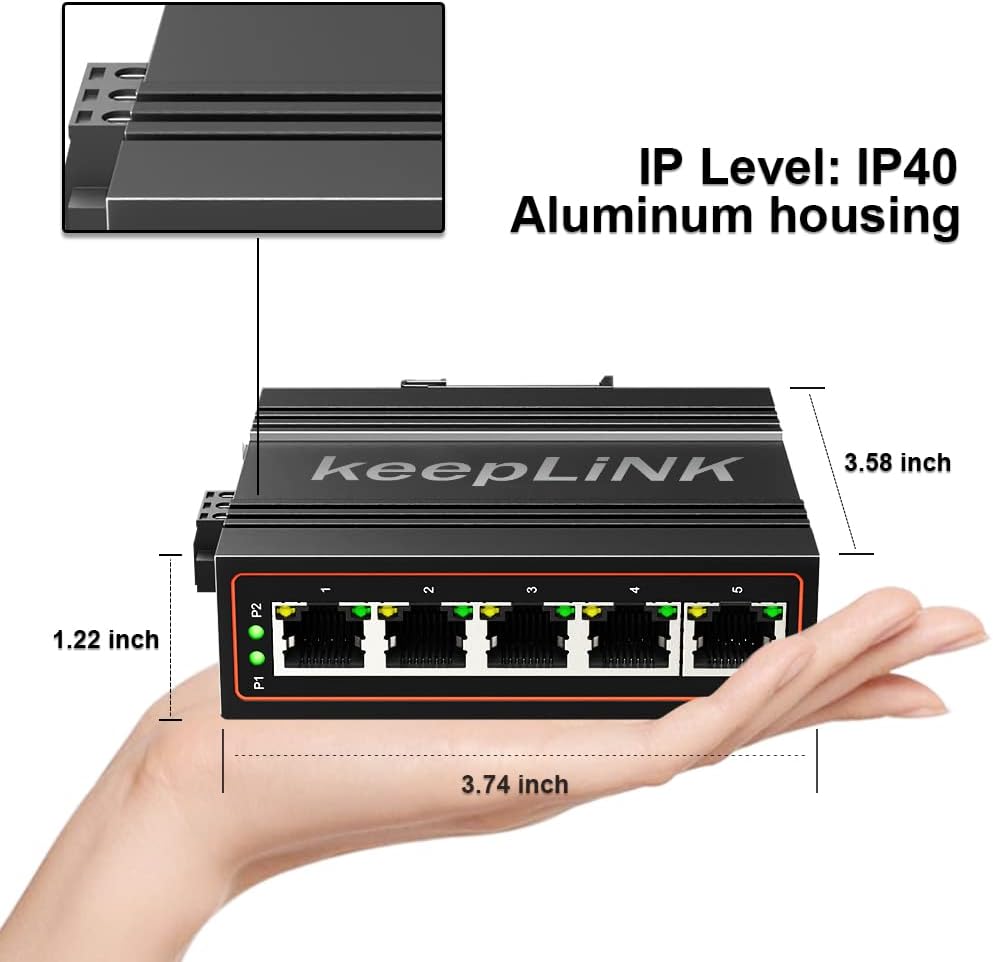

Dustproof

Enclosed design and IP40 protection can effectively prevent dust from entering the equipment.

Extreme Temperature Working

A wide operating temperature range of -30° ~75° C (-22° ~167° F) allows for installations in harsh environments with extreme hot or cold conditions.

Metal Housing

Aluminum shell, solid and durable, can realize effective cooling without fan, and operate more quietly.

Redundant Power

keepLiNK 5 port industrial network switch features dual power inputs to provide redundant power with overload current protection.

DIN-Rail & Wall Mount

keepLiNK industrial switch can be installed on the Din-rail or wall, which is simple and convenient.

keepLiNK Industrial Ethernet Switch Specifications

Switching capacity 1G Packet forwarding rate 0.744 Mbps MAC address table 2K Buffer 768K Forwarding delay <5us MDI/MDIX Support Jumbo Frame Support 2K bytes Operating temperature -30℃～75℃（-22℉ ~ 167℉） Input voltage DC12-58V IP Level IP40 Surge protection of Power IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us) Surge protection of port IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us) ESD IEC 61000-4-2 Level 4（8K/15K）

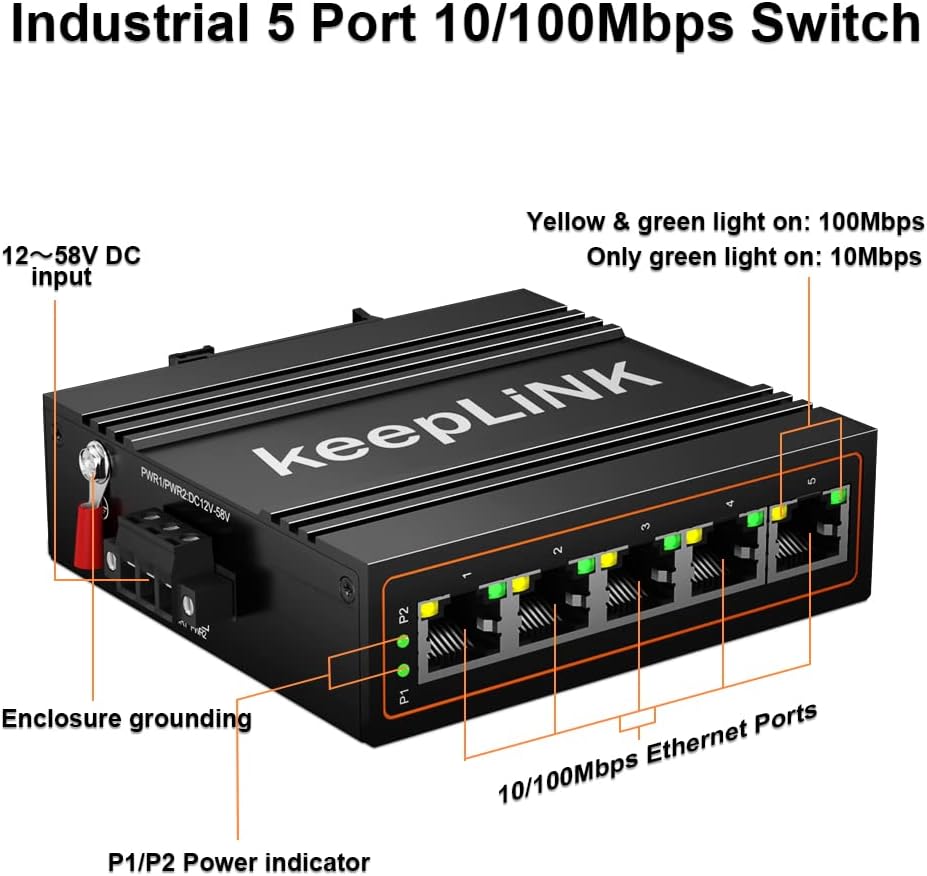

Ethernet port interface: 5 x 10/100Mbps fast ethernet ports. Switching capacity: This industrial network switch allows for a 1Gbps switching capacity.
Ultra Protection: IP40 rated protection, Anti-vibration, Anti-static interference, 4KV Lightning protection.
keepLiNK 5-port Fast Ethernet Industrial Switch can be hung on rails for easy loading and unloading.
Suitable for extreme temperature: keepLiNK 5 port Industrial Ethernet Switch adopts industrial grade components and aluminum housing, it can work at a wide range temperature -30°C – 75°C (-22°F – 167°F). You can use it for outdoor harsh environment.
Redundant power: keepLiNK 5 Port DIN-rail Network Switch feature Dual power inputs to provide redundant power with overload current protection.
Power supply sold separately: The power supply for this DIN-rail Ethernet Switch is sold separately.
