8 Port 10Gb Smart Web Managed SFP+ Switch,10G Optical Easy Managed SFP+ Ethernet Switch,Metal Fanless Home Lab Network Switch with Link Aggregation/QoS/VLAN/DHCP Client

Price: $145.00
(as of Aug 10, 2024 01:02:10 UTC – Details)

Product Description

What’s Web Managed switch? What is the difference between Web Managed switch and L2/L3 Managed switch?

For web managed switch, we can take it as the simplified version of layer2 managed switch. It contains basic management features of Layer2 managed switch,suitable for us who just want a simple managed switch with basic managed functions.

What speed rate does this SFP+ switch support?

This switch supports 10G/2.5G or 10G/1G.It supports auto-negotiate at 10G and 2.5G.Or auto-negotiate at 10G and 1G.The default mode is 10G/2.5G,1G devices can’t be recognized under this mode.Login to switch to set it to another mode on web interface.

Can the switch obtain an IP address from DHCP server?

Yes,the switch supports obtaining IP address from DHCP server.It obtains IP address through MAC of switch. It can obtain IP address as long as the DHCP server keeps communication with any port of switch.

How do I login to web interface?

Please set address of PC (IPV4) to 192.168.2.x first, and then login on browser by 192.168.2.1

【10G SFP+ Slot】The switch is equipped with 8 x 10G SFP+ slots.It supports 10G/2.5G and 10G/1G two modes.The default mode is 10G/2.5G,which means 1G modules can’t be recognized in this mode.These two modes can be switched on the web managed interface.The 10G SFP+ Ports support copper RJ45 modules ,optical fiber modules with 10G/2.5G/1G. And support 10G DAC or AOC,either.

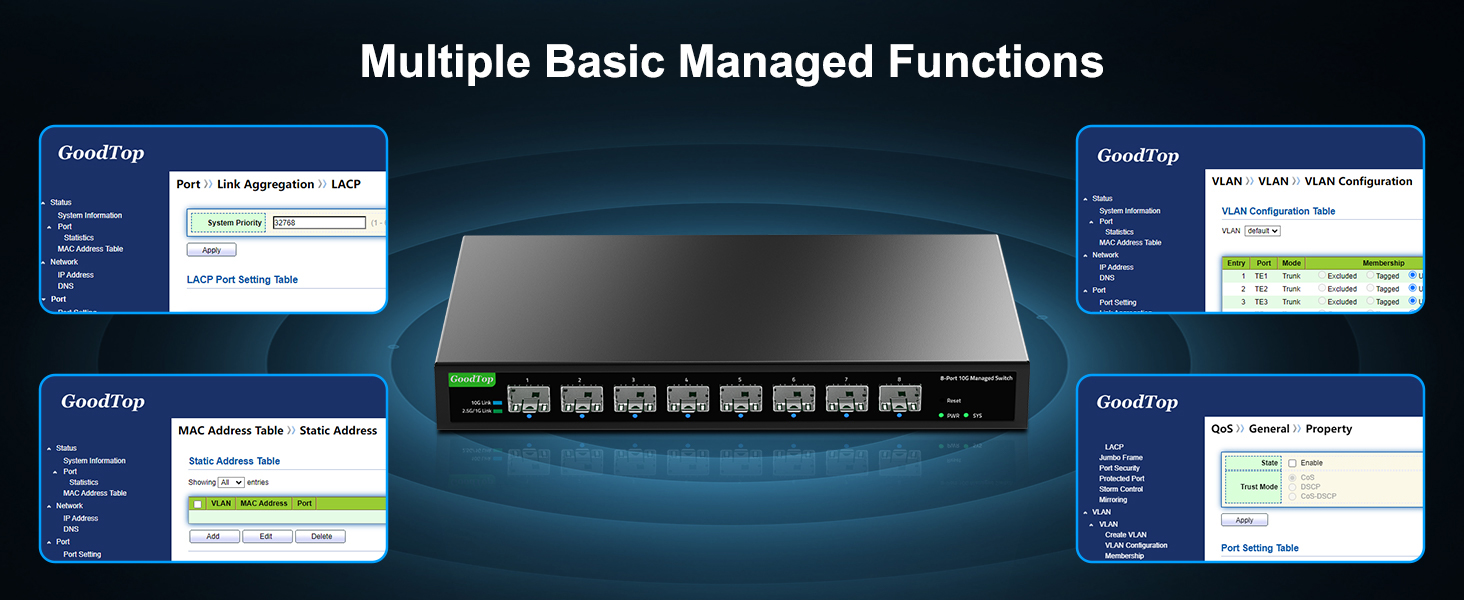

【Smart Web Managed】The switch supports log in via web interface and there are some basic features for managing the switch.Such as VLAN,QOS,Spanning Tree,MAC address,Link Aggregation,DHCP as client,etc.(Note: Please set IP address via IPV4 first before log in this switch).
【Link Aggregation】The switch supports Static Link Aggregation and Dynamic Link Aggregation(IEEE 802.3ad).Supports Up to 8 member ports are available in LAG.
【Switch Performance】The Master chip of switch is equipped with RTL9303,which is with lower power consumption and less heat generation.The power consumption of full load of the switch is around 18W. Equipped with 12V power supply.Working at the range of temperature 0~40°C.There might be a little hot when it is fully loaded,especially with 10G SFP+ RJ45 modules.

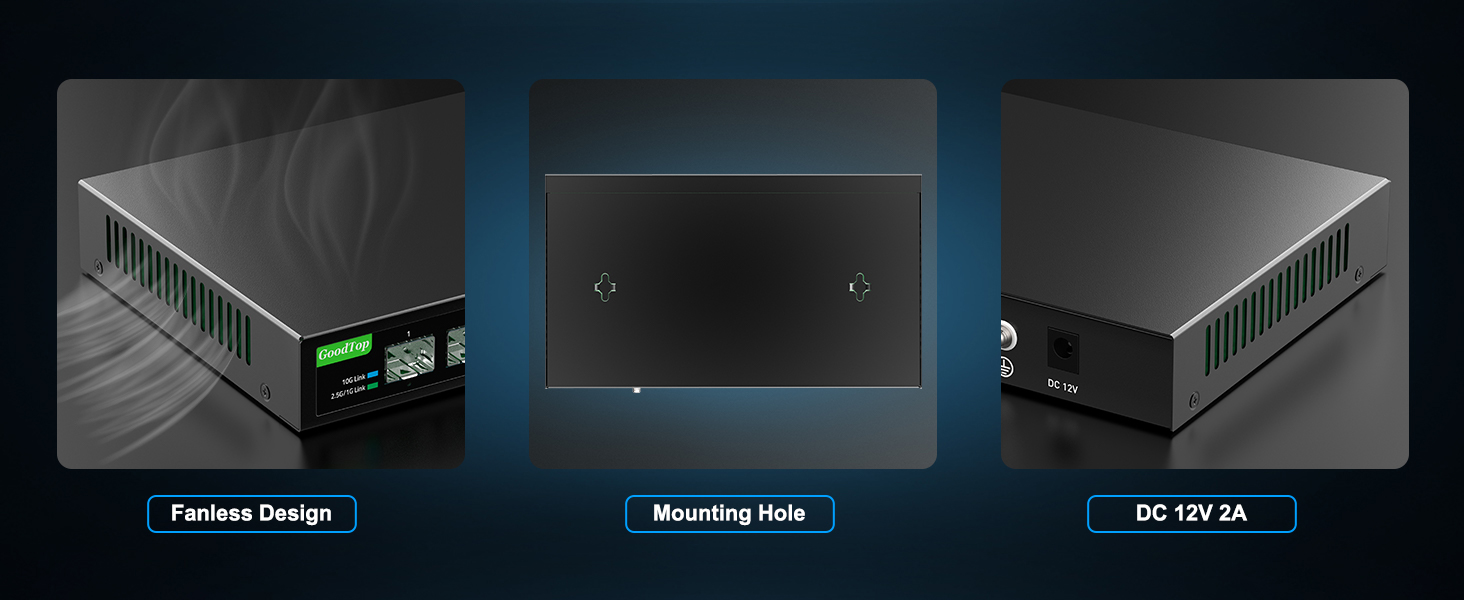

【Metal Housing & Fanless Design】With fanless design,the switch can work silently and dissipate heat through vents and metal shell.On the bottom of switch, there are mounting holes so one can use two screws to mount the switch to a desk, wall, or elsewhere. Besides,this is a very small footprint switch that can be velcro mounted just about anywhere.
【Versatile Applications】With 8 x 10G SFP+ port and multiple managed functions,this switch can be used in various scenarios,including 2.5G/5G/10G NAS (Network-Attached Storage) devices,PCIe adapters/NICs, servers, 8K video streaming, router and more. The wide range of compatible equipment makes it an excellent choice for use of home network,business office,server room,school,subway and so on.
