8 Port Gigabit DIN-Rail Industrial Ethernet Switch, 16Gbps Switching Capacity, 10/100/1000Mbps Unmanaged Network Switch, IP40 Rated (-40 to 185°F) with One UL AC Power Supply

Price: $79.99 - $62.99
(as of Aug 28, 2024 09:02:21 UTC – Details)

Product Description

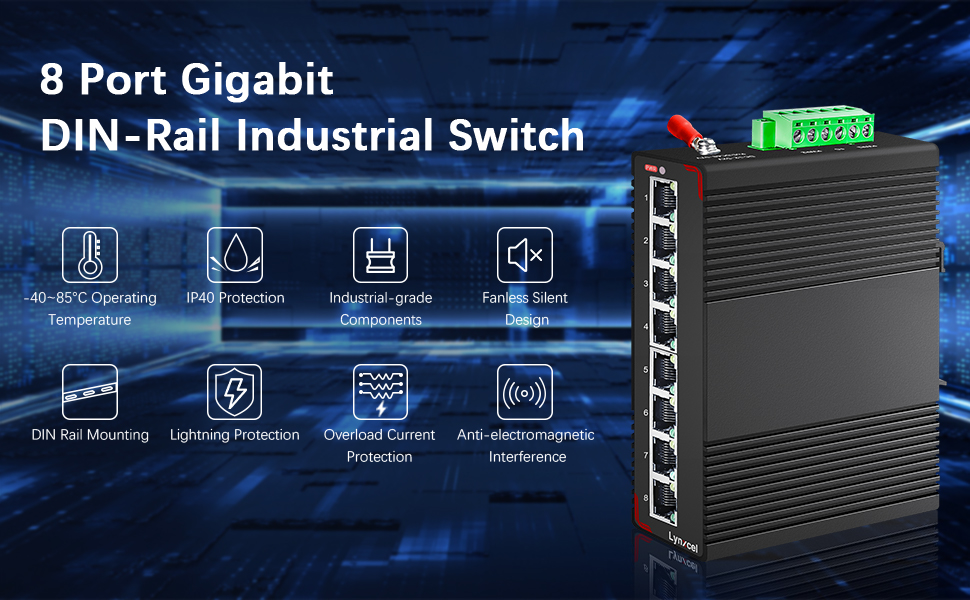

This 8-Port Gigabit Industrial Ethernet Switch is specially designed for harsh industrial and outdoor environments.

Such as: Solar Power Energy, Manufacturing, Intelligent Transpotation, Factories, Warehouse, Refineries and Garage Wall, Vehicle, RV Park, Attic, Barn.

Industrial-grade Protection

4KV Lightning Protection

Lynxcel din rail ethernet switch has 4KV power port surge protection and 2KV network port.

The top of the industrial switch is equipped with a grounding function, can protect your devices: The first to prevent the impact of static electricity on the equipment, and the other is to reduce the risk of electric shock in case of serious failure, safer in operation.

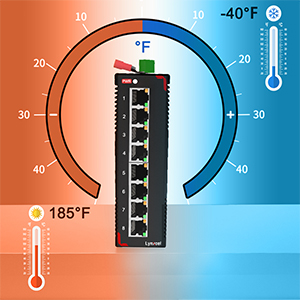

Wide Temperature Operation

This industrial unmanged switch is designed in strict accordance with the industrial temperature of –40~185°F, selects industrial-grade devices, adopts a fanless low-power heat dissipation design, and is fearless against extreme temperatures, ensuring that the equipment can work stably for a long time within this temperature range.

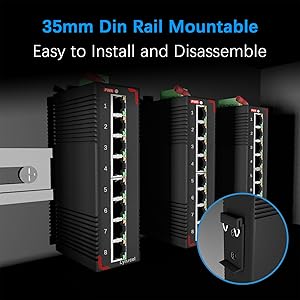

DIN Rail Mounting

Adopt 35mm standard DIN-rail design, easy to install. It can be installed in a control box with compact space, and can be integrated into industrial control automation, equipment integration and monitoring electric box.

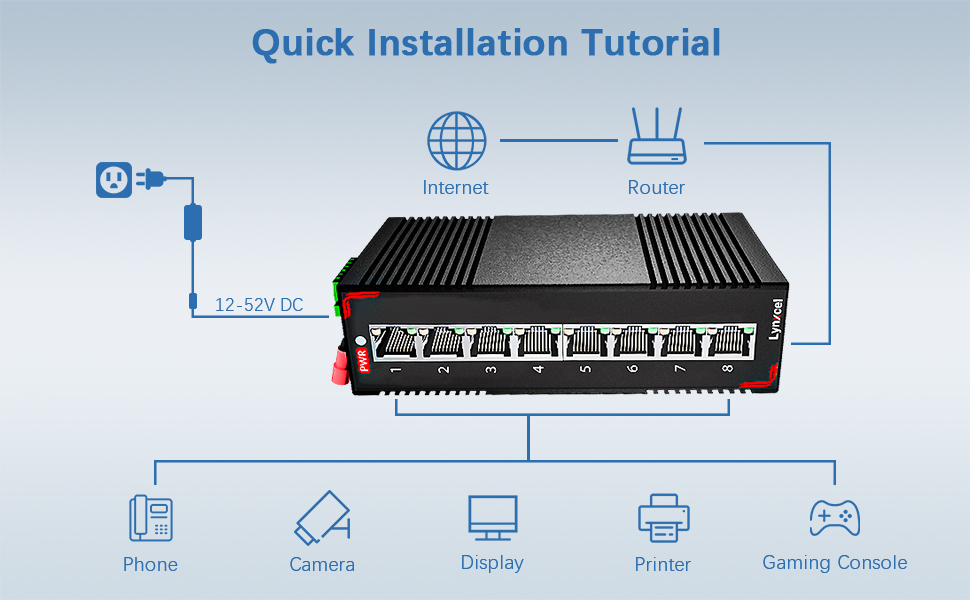

Network expansion & Video surveillance

Product Specifications

Interface Parameters: 8x 10/100/1000Base-TX RJ45 port Auto-negotiation of Half-Duplex / Full-Duplex.

Standards and Protocols: IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3x • Full duplex and flow control.

Temperature and Humidity: Operating Temperature : -40~185°F • Relative Humidity: 5% to 95% non-condensing.

Switch Properties: Switching Capacity: 16Gbps • Forwarding Rate: 1.488Mbps • MAC Address Table: 2K • Packet Buffer: 2MB • Jumbo Frame: 10K.

Protection Grade: IP40

Installation: DIN-Rail

Delay Time: <3μs

Power Characteristics: Dual Redundant Power Input • Power Input：DC 12~52V • Power Consumption：<4W • Protection：Overload Current Protection • Reverse Polarity Protection

MTBF: >50,000Hrs

Cooling Method: No-fan, low power natural cooling.

Stability: CE , FCC, RoHS • IEC 60068-2-6 Fc (Vibration) • IEC 60068-2-27 Ea (Shock) • EN 61000-4-4 (Burst Standards) •EN 61000-4-8 (Magnetic Field Standards) • EN 61000-4-5 (Surge Standards): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV.

Processing Type: Store and Forward

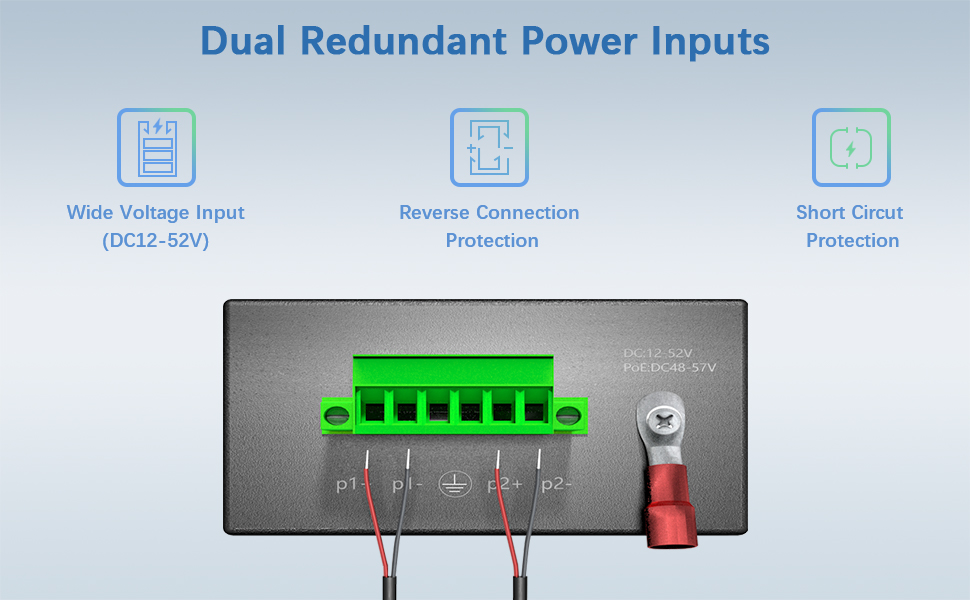

Dual Redundant Power Inputs: When one of the DC power is fail, the relay will be trigger.

Please Kindly Note: for installing power wires: When installing power wires, insert the power wires into corresponding polarity signal holes. Insert the Red wire into P1+ or P2+, and the Black wire into P1- or P2-, and tighten them to ensure that the power wires do not fall off when the industrial switch is moved, then plug it into the power outlet.

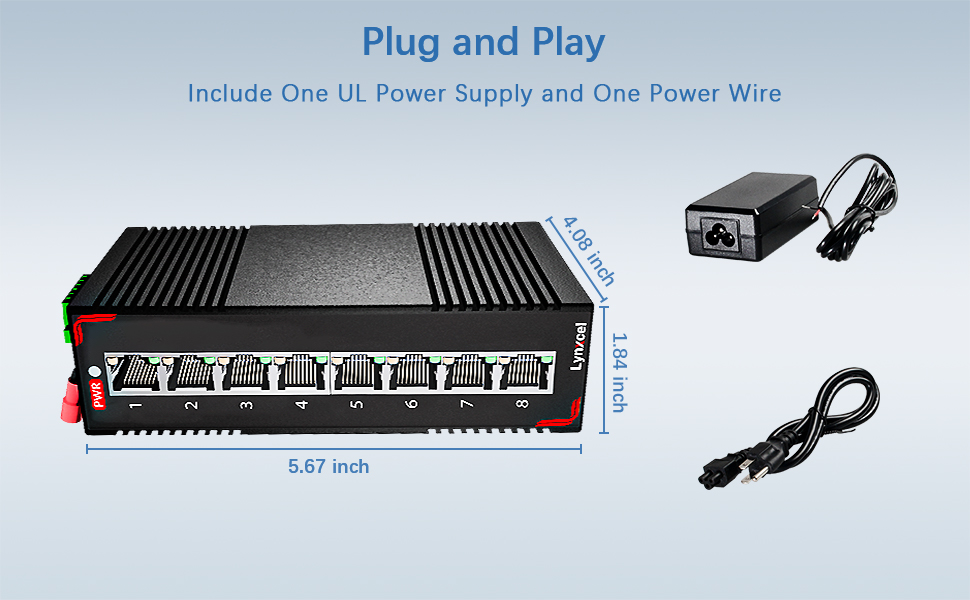

What’s Included:

1 x 8-Port Gigabit Unmanaged Industrial Ethernet Switch

1 x 24W UL AC Power Supply Adapter

1 x One Meter Power Cable

1 x User Manual

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

3.5 out of 5 stars
28

3.5 out of 5 stars
28

3.5 out of 5 stars
28

4.3 out of 5 stars
11

4.3 out of 5 stars
11

4.3 out of 5 stars
11

Price

$43.99$43.99 $59.84$59.84 $87.87$87.87 $69.91$69.91 $100.58$100.58 $114.99$114.99
Ports
4 x Gigabit RJ45 Ports+1xUpLink Ports 4 x Gigabit PoE Ports+1xUpLink Port s 8 x Gigabit PoE Ports 4 x Gigabit PoE Ports +1 x Gigabit SFP UpLink Port 8 x Gigabit PoE Ports +2 x Gigabit SFP UpLink Ports 8 x Gigabit PoE Ports +2 x Gigabit SFP UpLink Ports
Support PoE
No Yes Yes Yes Yes Yes
PoE Power Output
/ 65W (30W Per Port) 96W (30W Per Port) 65W (30W Per Port) 96W (30W Per Port) 96W (30W Per Port)
PoE DC Output
/ Standard 48V Standard 48V Standard 48V Standard 48V Standard 48V
Switch Capacity
10Gbps 10Gbps 16Gbps 10Gbps 20Gbps 20Gbps
Mount Method
DIN-Rail DIN-Rail DIN-Rail DIN-Rail DIN-Rail DIN-Rail
Input Power
12-52V DC 12-52V DC 12-52V DC 12-52V DC 12-52V DC 12-52V DC
Temperature
-40~185°F -40~185°F -40~185°F -40~185°F -40~185°F -40~185°F
Included Power Supply Adapter
1 * 24W Power Supply Adapter 1 * 65W Power Supply Adapter 1 * 96W Power Supply Adapter 1 * 65W Power Supply Adapter 1 * 96W Power Supply Adapter 1 * 96W Power Supply Adapter
Included SFP Module
/ / / 1 * 1000Base-LX SFP Module 1 * 1000Base-LX SFP Module 1 * 1000Base-T SFP Module

【8 Port Industrial unmanaged Switch】8× 10/100/1000Mbps ports,16Gbps switching capacity, support automatic detection, full/half duplex MDI/MDI-X adaptive. Please Note: equipped with one UL AC power supply adapter and one power cable, no need to buy it separately.
【Industrial Grade Design】This industrial network switch is IP40 protection grade, -40~185°F operating temperature. Anti-lightning, anti-static, anti-electromagnetic interference, surge protection, , work well in various harsh environments.
【Dual Redundant Power Supply】The industrial unmanaged gigabit switch has dual redundant power supply interfaces, automatic fault switching, anti-overload protection, supports anti-reverse connection protection, working voltage 12-52V, will not damage the equipment.
【DIN Rail Mounting】This idustrial gigabit switch adopts high strength aluminum alloy shell, corrugated heat groove, natural heat dissipation fast; industrial standard 35mm din rail, easy to install and disassemble.
【Compact Size】5.62 x3.97 x 1.73 inch compact size for various installation scenarios. Easy to use, no configuration required, low power consumption, fanless silent design. If you have any questions, please feel free to contact us.
