8 Port PoE Switch 100Mbps/8 PoE+ Port,2 Ethernet Uplink,120W 802.3af/at, Extend Function, Fanless Metal Plug & Play Unmanaged Network Switch

Price: $24.99
(as of Jun 24, 2024 14:00:40 UTC – Details)

Product Description

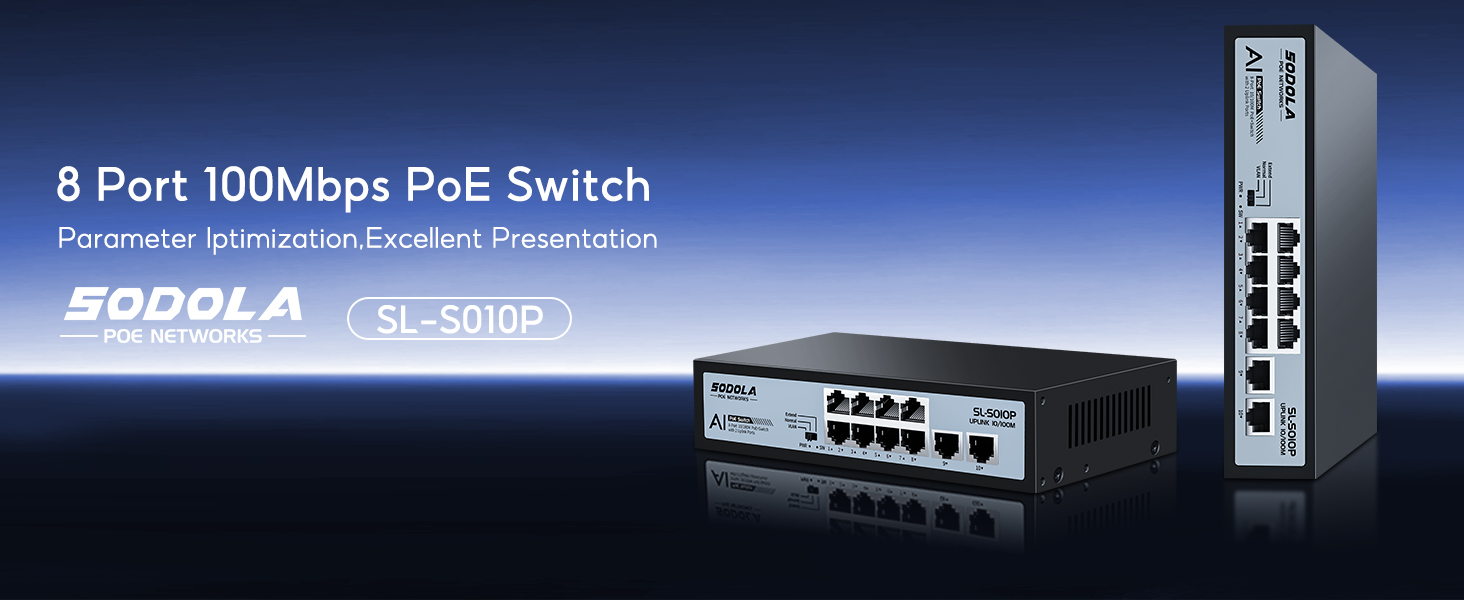

SODOLA 8 Port AI PoE Switch 100Mbps

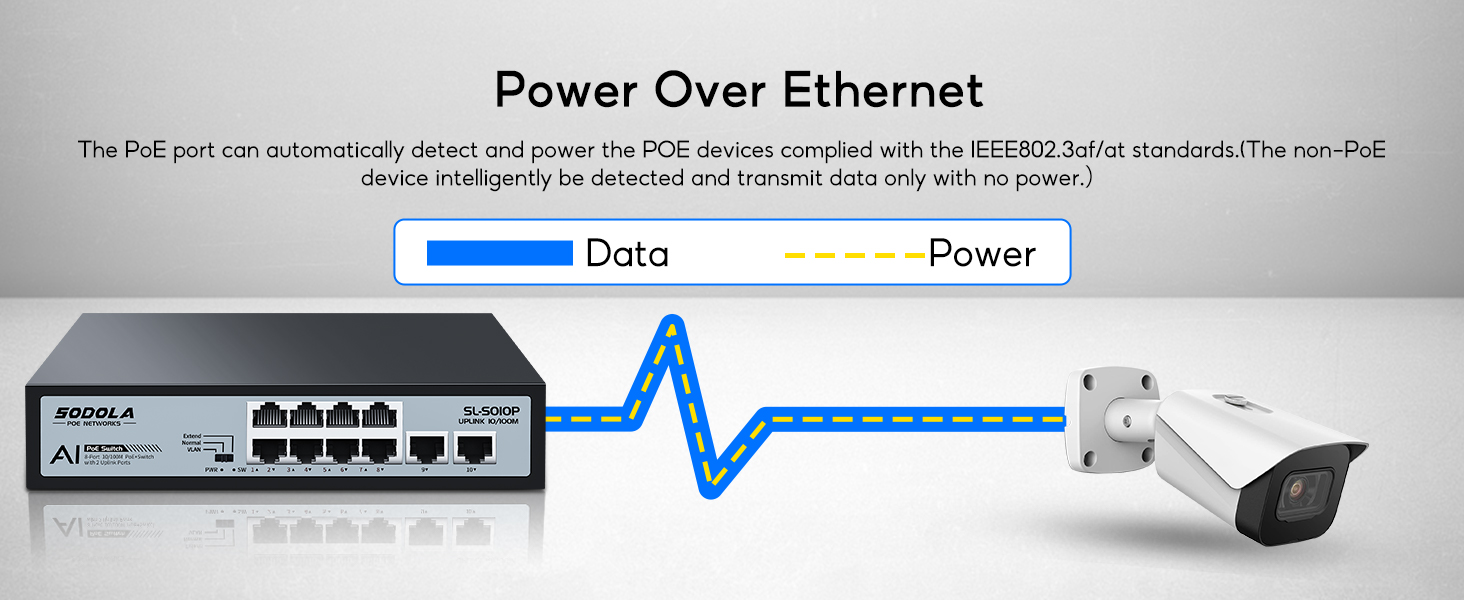

8-Ports 100M PoE Switch, using high-quality high-speed network IC and the most stable PoE chip, complies with 802.3af/at standard.It provides a seamless connection, and the PoE power port can automatically detect and power the PoE powered devices.The non-PoE device intelligently transmits data only.

Main Features for 8 Port PoE Switch(SL-S010P)

1.With IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards； 2.Full-duplex adopts IEEE 802.3x standard,half-duplex adopts Back pressure standard. 3.Support Auto MDI/MDIX, VLAN & Extend,AI Watchdog；4.Lightning Protection:General Mode 4KV, Differential Mode 2 KV, ESD 8KV(Air),6KV(Contact)

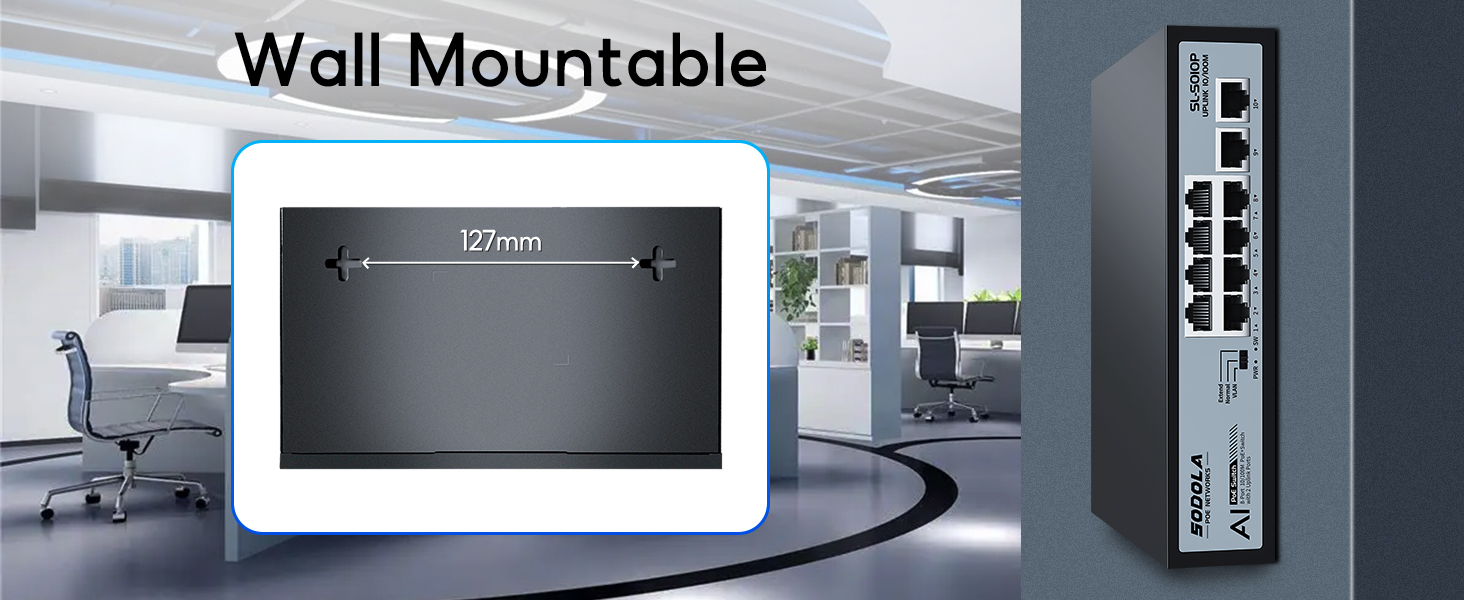

1 PoE Function 2 VLAN&Extend Mode 3 AI Watchdog 4 Plug&Play 5 Wall Mountable

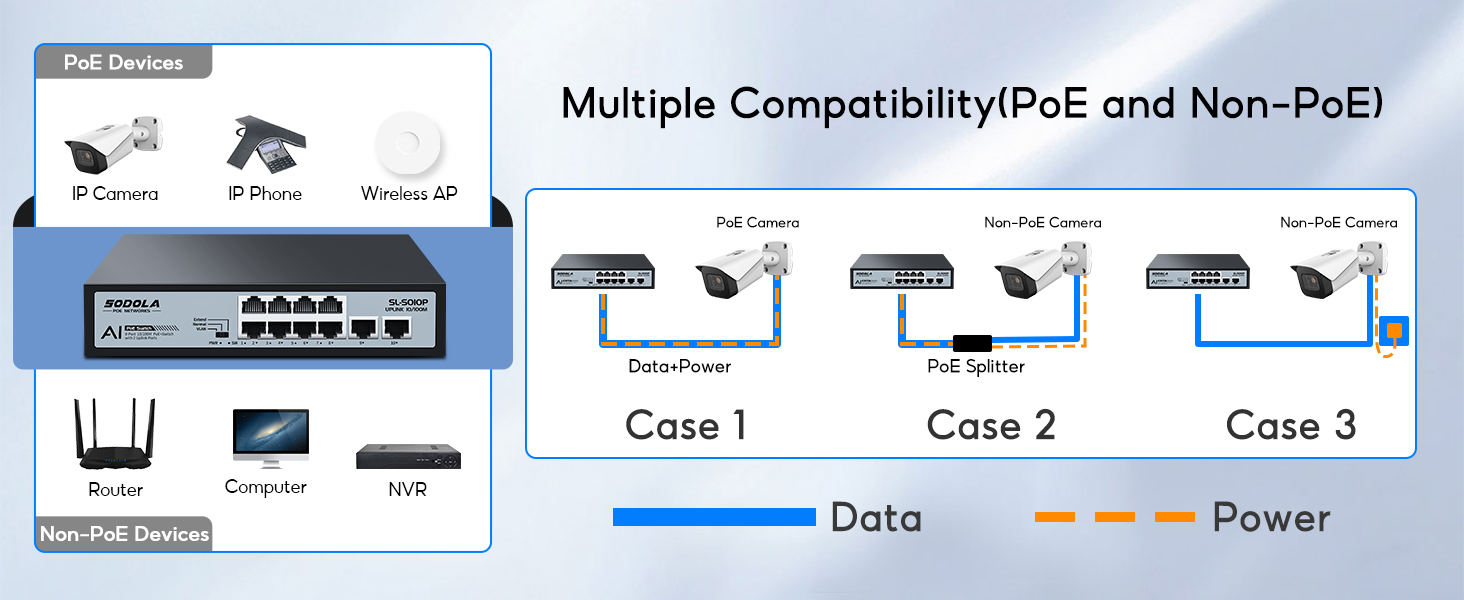

Multiple Compatibility

This switch supports passive PoE/non-POE devices. However, when the switch is directly connected to a passive/non PoE device,the switch transmit data only.Therefore, the device needs another power supply or,a PoE splitter so that the switch can transmit data and power supply at the same time.

SL-S010P

SODOLA PoE Switch

8×10/100Mbps

PoE Port

8×10/100/1000Mbps

2×10/100Mbps

UpLink Port

2×10/1000Mbps

802.3at/af

PoE Standard

802.3at/af

120W

POE Power Budget

120W

Desktop or Wall

Mounting Options

Desktop or Wall

/

SFP Fiber Port

/

8×10/100Mbps

PoE Port

8×10/100Mbps

2×10/100Mbps

UpLink Port

2×10/1000Mbps

802.3at/af

PoE Standard

802.3at/af

120W

POE Power Budget

120W

Desktop or Wall

Mounting Options

Desktop or Wall

/

SFP Fiber Port

/

8×10/100Mbps

PoE Port

4×10/100/1000Mbps

2×10/100Mbps

UpLink Port

2*Gigabit Uplinks

802.3at/af

PoE Standard

802.3at/af

120W

POE Power Budget

65W

Desktop or Wall

Mounting Options

Desktop or Wall

/

SFP Fiber Port

1*SFP Slot

8×10/100Mbps

PoE Port

4×10/100Mbps

2×10/100Mbps

UpLink Port

2×10/100Mbps

802.3at/af

PoE Standard

802.3at/af

120W

POE Power Budget

65W

Desktop or Wall

Mounting Options

Desktop or Wall

/

SFP Fiber Port

/

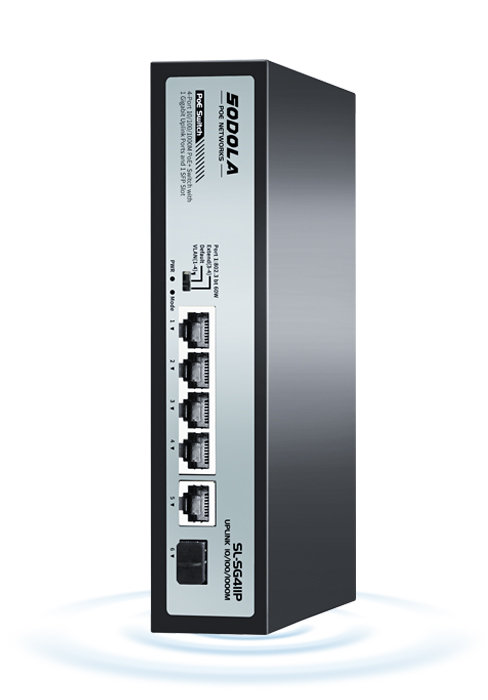

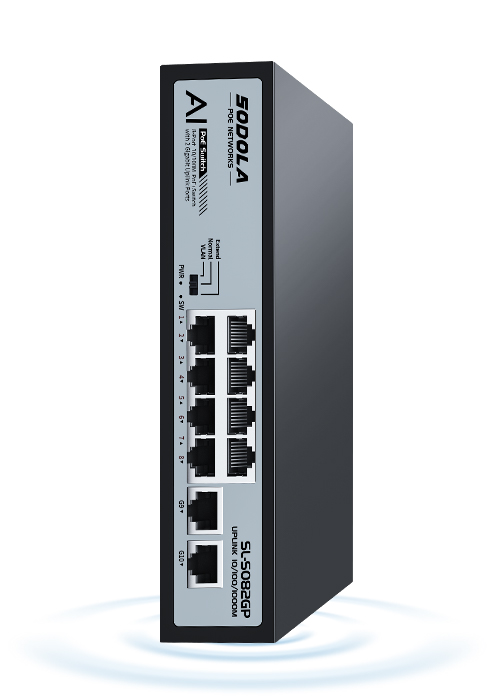

SL-SG010P SL-S082GP SL-SG411P SL-S06P

PRODUCT PARAMETERS for SODOLA 8 PORT POE SWITCH

Power Input: AC 100-240V,50/60Hz Ethernet 8 Port 10/100M PoE+2 Port 100M Ethernet Uplink Switching Capacity 2Gbps Throughput 1.488Mps Packet Buffer 2448K MAC Adress 2K Jumbo Frame 2048bytes Network protocol IEEE802.3 (10Base-T); IEEE802.3u (100Base-TX); IEEE802.3x(Flow control) POE Protocol IEEE802.3af (15.4w); IEEE802.3at (30W) Industry Standard EMI: FCC Part 15 CISPR(ENS5032)class A; EMS: EN61000-4-2 (ESD); EN61000-4-4 (EFT)、EN6100-4-5 (Surge) Network Medium 10Base-T:Cat3、4、5or above UTP(≤100m); 100Base-TX:Cat5 or above UTP(≤100m) Working Environment Working Temperature:-20~50°C; Storage Temperature:-40~85°C; Working Humidity:10%~90%,non-condensing; Storage Temperature: 5%~90%,non-condensing; Working Height: Maximum 10,000 feet; Storage Height: Maximum 10,000 feet. SW (DIP) Lighting: Powered; Un-Light: No Power 1-10 Green (Link&Data) Lighting: Connecting; Flashing: Data Transmit; Un-Light: Disconnect. DIP Switch VLAN:Port isolation mode. The PoE ports (1-8) cant communicate with each other, but with the UP-link port only. The port Al mode is turned on. Normal mod:, all port can communicate with each other, the transmission distance is up to 100 meters, the transmission rate is 10M/10OM adaptive; The port AI mode is closed. Extend:Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate at 10M, and the port Al mode is on. Power Voltage AC 100-240 V Power supply: 52V 2.3A

【100 Mbps Ethernet PoE Switch】8*10/100Mbps PoE+ Ports(802.3at/af)&2*10/100Mbps uplink, power budget up to 30W per PoE port and 120W for the whole.

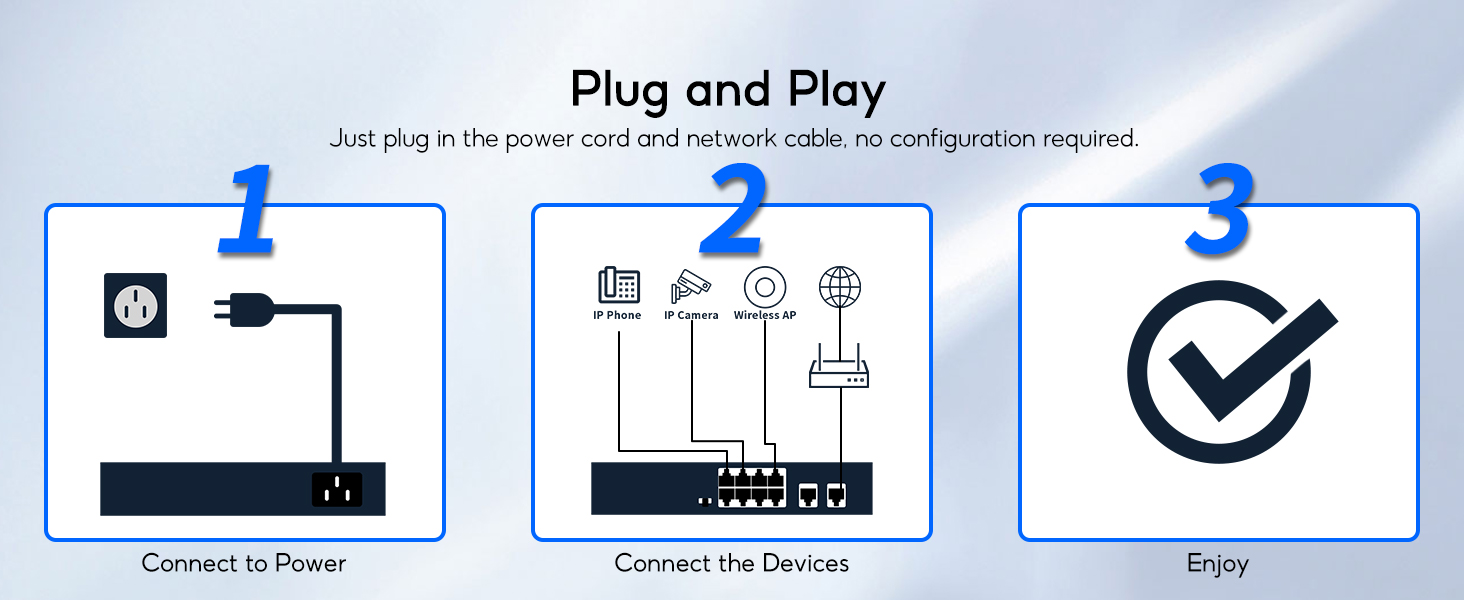

【Plug and Play】Sodola 10 Port Unmanaged Network Switch Support automatically detect devices,easy to setup with no software installation or configuration required.

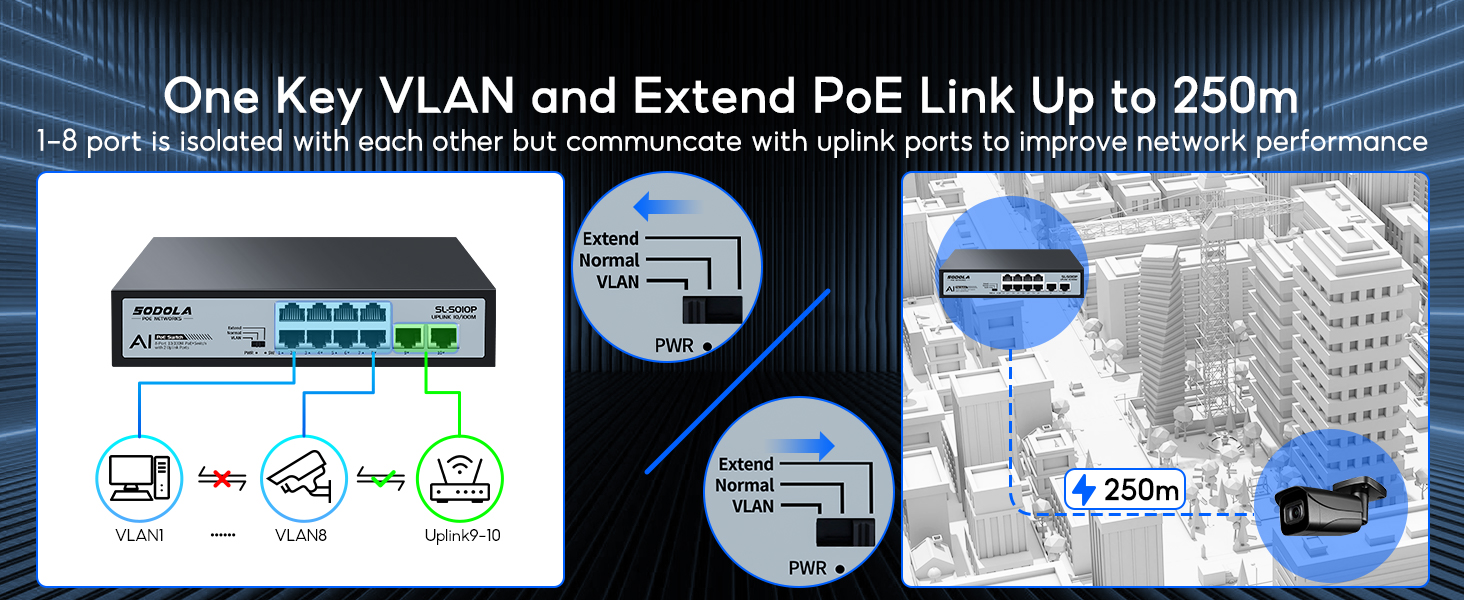

【Extend Mode】When Extend Mode is enabled, the transmission distance of 1-8 ports can be extended to 250m at transaction rate of 10M.

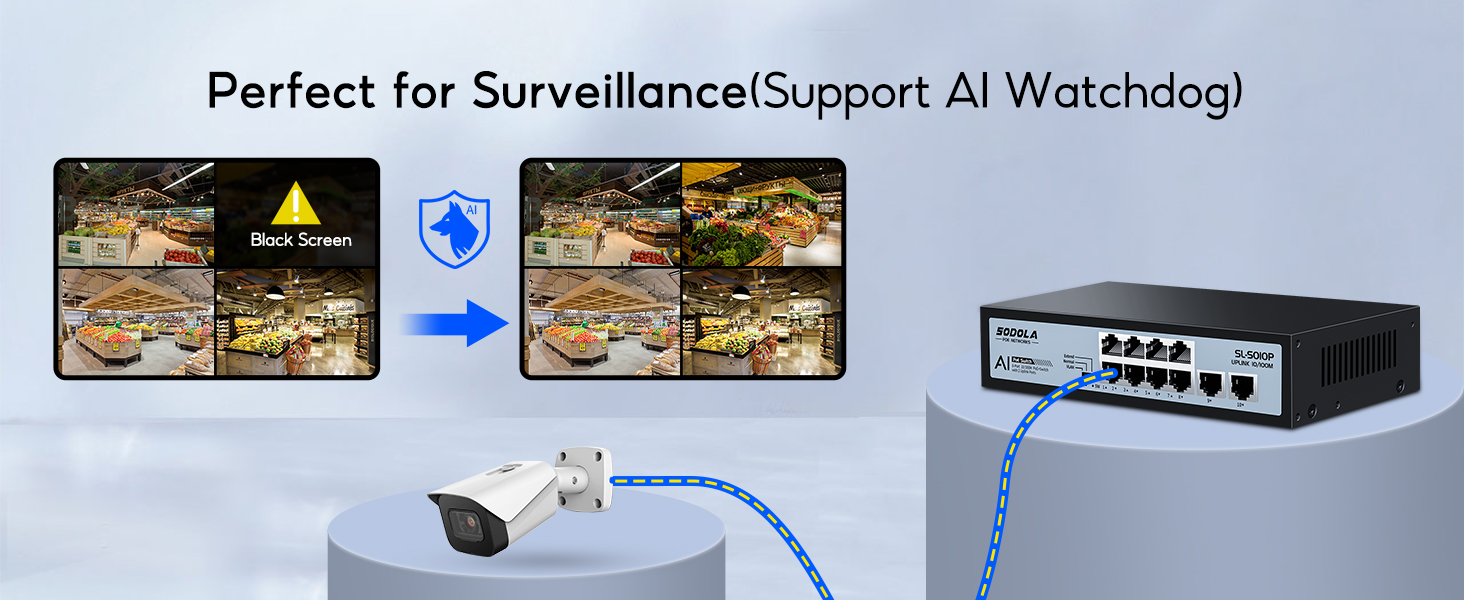

【PoE Switch Safety Concern】Passed CE/FCC/RoHS certification, SL-S010P reaches 4KV/8KV Lightning Protection level to guarantee safety. One-Key VLAN function makes Port 1-8 be isolated to reduce the network congestion effectively. AI Watchdog intelligent detection automatically reboot the disconnected and unresponsive PoE-powered devices
【Multiple Compatibility】Sodola 10 Port PoE Switch can be widely used scenarios such as IP cameras, Wireless Access Point, Computer Networks devices, etc. We committed to provide product- replace- without- repair service within 1 year, more concern on your using experience.
