BV-Tech 6 Port PoE+ Switch (4 PoE+ Ports with 2 Ethernet Uplink and Extend Function) – 60W – 802.3at + 1 High Power PoE Port| Desktop Fanless Design | Plug & Play | Sturdy Metal Housing

Price: $27.99 - $24.99
(as of Apr 15, 2024 00:35:28 UTC – Details)

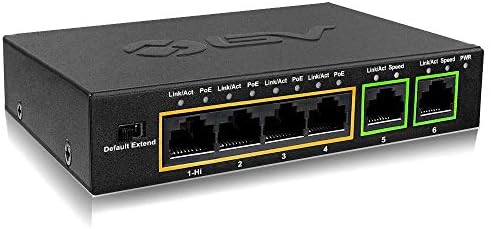

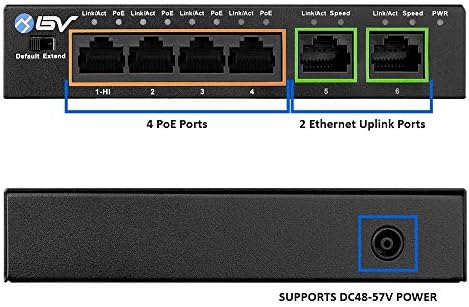

The POE-SW502 is an unmanaged 6-Port Power over Ethernet Switch with a total of 60 watts of PoE power. All ports run at 10/100Mbps and can provide up to 30W per port through the IEEE 802. 3at standard, as well as up to 60W on port 1 through Hi-PoE. It has two Ethernet uplink ports to allow for communication without sacrificing any PoE ports. It also features an “extend” switch to allow for PoE transmission of up to 820ft (which reduces data transmission to 10Mbps). Specifications: Ports: 2*10/100Mbps Uplink ports, 4*10/100 Mbps PoE ports PoE Power: Port 1 ≤60W, Port 2-4 ≤30W, Tota l≤60W PoE Protocol: IEEE802. 3af (PoE), IEEE802. 3at (PoE+), Hi-PoE Switching Capabity: 1. 8G Packet Forwarding Rate: 890kpps Packet Buffer Memory: 768Kb MAC Table Size: 2K Flow Control: Enabled Humidity: 10 – 90% Power: DC48-57V Lightning Protection: Common Mode 2KV; Differential Mode 0. 5KV Operating Temperature: 14F – 131F (-10C – 55C) Weight: 0. 66lb (300g) Dimensions (W x D x H): 5. 12in x 3. 35in x 1. 02in (130mm x 85mm x 26mm)All products sold by PoE Depot come with a 100% Satisfaction – we offer a 30-day money-back , as well as a 1 year that covers replacement for free.

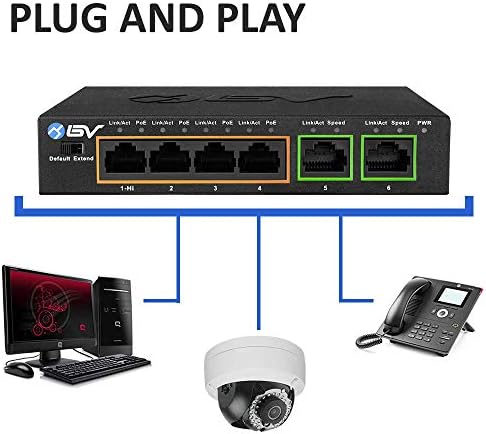

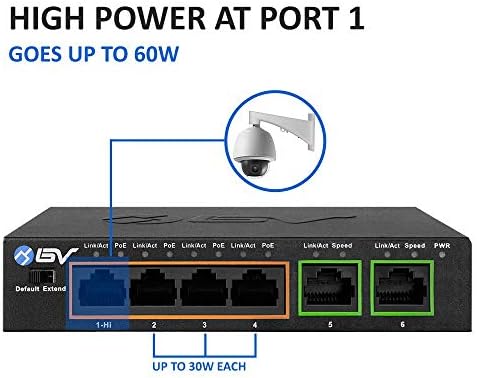

High-Power PoE Capabilities: Equipped with four 10/100 Mbps PoE ports supporting IEEE 802.3af/at and Hi-PoE up to 60W on port 1 and up to 30W on ports 2-4, the POE-SW502 efficiently powers VoIP phones, IP cameras, and wireless access points.
Enhanced Network Performance: With a switching capacity of 1.8 Gbps and a packet forwarding rate of 890 kpps, along with a MAC address capacity of 2K, this switch is designed to handle high traffic networks while ensuring smooth data transmission.
Advanced Transmission Modes: Features two transmission modes, Default and Extend, for tailored network performance, with Extend mode enabling long-distance video transmission, making it ideal for surveillance applications.

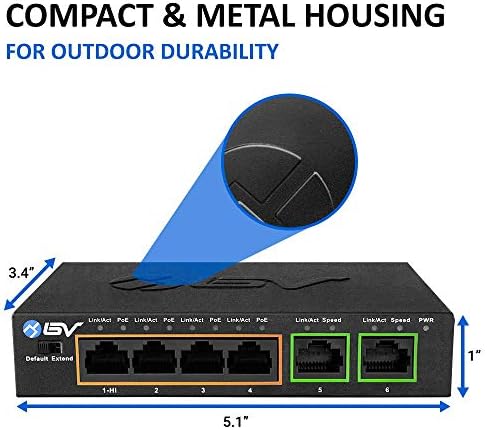

Robust & Reliable Design: Constructed with a durable metal enclosure and equipped with surge protection (Common Mode: 2KV; Differential Mode: 0.5KV), the POE-SW502 is built for longevity and resilience in challenging environments.
Certified Safety & Quality: Complies with UL 60950-1 for safety, FCC for EMC, and meets CE standards. Enjoy peace of mind with our limited lifetime warranty, reflecting our confidence in the POE-SW502’s reliability and your satisfaction.
