FriendlyElec Nanopi R2C Plus Mini Router RK3328 Dual Gigabit Network OpenWRT

Price: $69.99
(as of Apr 08, 2024 10:19:09 UTC – Details)

Product Introduction

The NanoPi R2C Plus uses the RK3328 SoC. It has two Gbps Ethernet ports, 1G DDR4 RAM and 8G eMMC Flash. FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications etc.

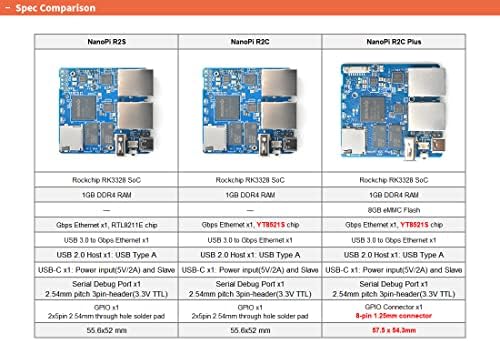

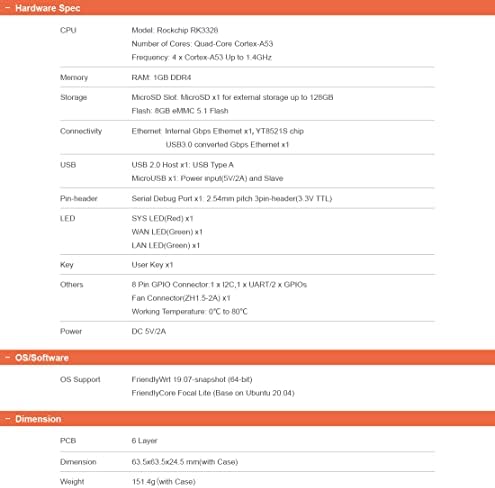

Hardware Spec

CPU: Rockchip RK3328, Quad-core Cortex-A53
DDR4 RAM: 1GB
Flash: 8GB eMMC 5.1 Flash
Network：
-Internal 10/100/1000M Ethernet Port x 1
-USB3.0 converted 10/100/1000M Ethernet Port x 1

USB2.0 Host: Type-A x1
MicroSD Slot x 1
MicroUSB: power input and USB Slave
Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector, 1500000 bauds
LED: LED x 3
KEY: KEY x 1 programmable
PC Size: 57.5 x 54.3mm
Power Supply: DC 5V/2A

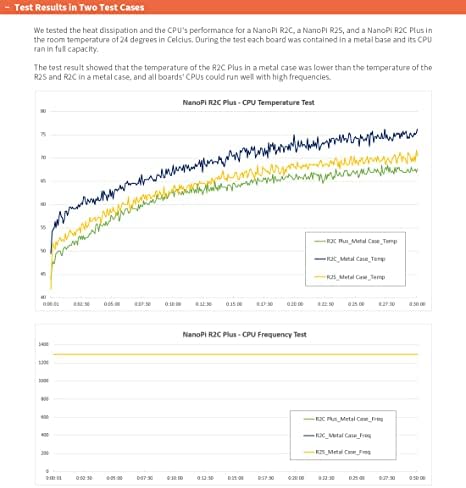

Temperature measuring range: 0℃ to 80℃
OS/Software: U-boot，Ubuntu-Core，OpenWrt

The NanoPi R2C Plus uses the RK3328 SoC. It has two Gbps Ethernet ports, 1G DDR4 RAM and 8G eMMC Flash. FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications etc.
CPU: Rockchip RK3328, Quad-core Cortex-A53
DDR4 RAM: 1GB
Flash: 8GB eMMC 5.1 Flash
OS/Software: U-boot，Ubuntu-Core，OpenWrt
WIKI: https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R2C_Plus
