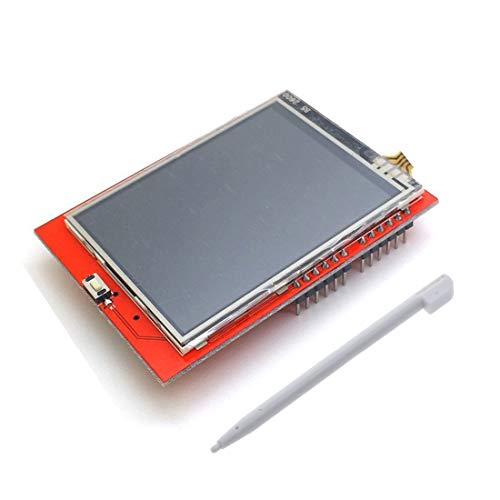

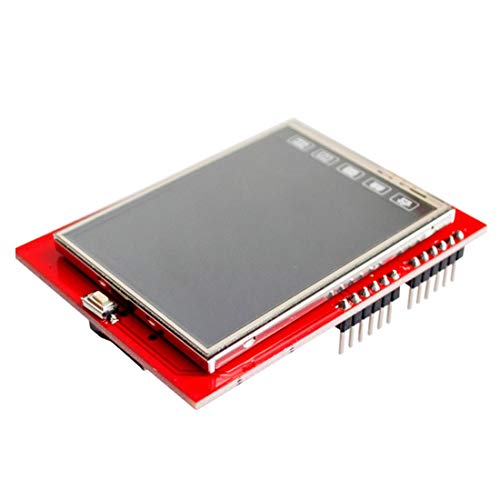

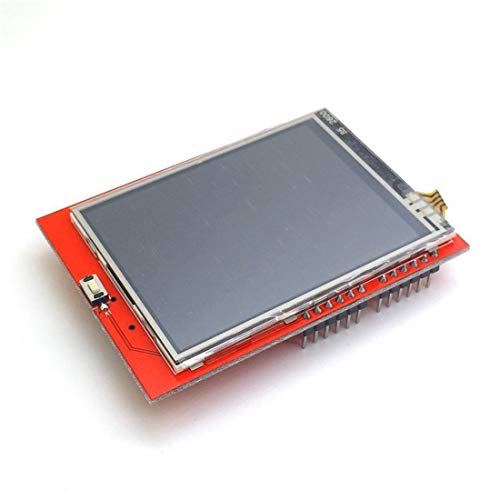

HiLetgo 2.4″ ILI9341 240X320 TFT LCD Display with Touch Panel LCD for Arduino UNO MEGA2560

Price: $13.49
(as of Apr 03, 2024 23:58:19 UTC – Details)

HiLetgo 2.4″ TFT LCD Display Shield Touch Panel ILI9341 240X320 for Arduino UNO MEGA
Features:
2.4″ diagonal LCD TFT Touch Panel display
Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control
Colorful, 18-bit 262,000 different shades
4-wire resistive touchscreen
8 bit digital interface, plus 4 control lines

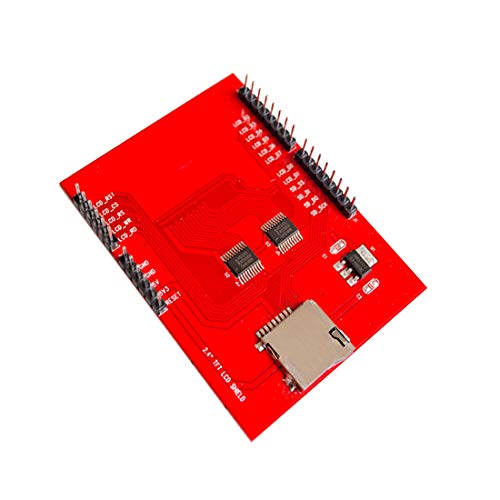

Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD
5V compatible, use with 3.3V or 5V logic
For Arduino UNO R3 MEGA2560
Package included:
1*2.4″ TFT LCD Display Shield Touch Panel ILI9341 240X320 for Arduino UNO MEGA

Is Discontinued By Manufacturer ‏ : ‎ No
Package Dimensions ‏ : ‎ 4.41 x 3.31 x 0.79 inches; 0.63 ounces
Item model number ‏ : ‎ 3-01-1292
Date First Available ‏ : ‎ April 28, 2017
Manufacturer ‏ : ‎ HiLetgo
ASIN ‏ : ‎ B0722DPHN6

2.4″ diagonal LCD TFT Touch Panel display
Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control
Colorful, 18-bit 262,000 different shades
4-wire resistive touchscreen
8 bit digital interface, plus 4 control lines
