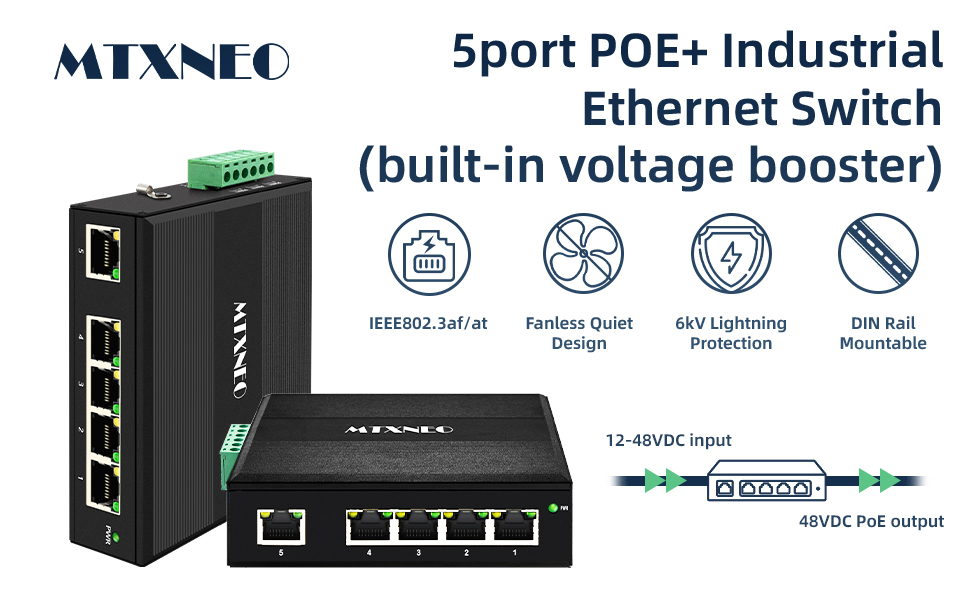

Industrial 5 Ports Gigabit POE+ Network Switch with DC12V-48V Input and DC48V IEEE802.3af/at 30W POE Output 120W Total for Solar Power/Truck/VoIP Systems/CCTV Security System

Price: $86.99
(as of Aug 19, 2024 09:02:20 UTC – Details)

Product Description

Q&A

1. Q: How does this Industrial 5 Ports Gigabit POE+ Network Switch compare to other standard POE switches?

A: This 5port PoE switch features a built-in voltage booster which enables it to utilize a power input range of 12-48VDC, whereas typical POE switches support 48VDC input only.

2. Q: Does this industrial 5 ports PoE switch support 24VDC power output?

A: No, this product doesn’t support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.

3. Q: Does it come with a power adapter?

A: The power adapter is sold separately. You could use industrial din-rail power adapter or commercial grade. The voltage can be 12-48VDC. If need 120W power output, please use 48V 2.5A or 24V 5A power supply.

4. Q: Is it a managed industrial network switch?

A: It is unmanaged industrial network switch and no need any setting. It is plug and paly, easy to use.

5. Q: What’s is the PoE Pin Assignment of this Industrial 5 Ports POE+ Network Switch?

A: It supports both 1/2 (V+),3/6 (V-) and 4/5 (V+),7/8 (V-).

6. Q: Can i use it with one Non-PoE devices?

A: Yes, sure. If one Non-PoE devices is connected with this industrial 5port PoE switch. The industrial 5port PoE switch will provide data only, and don’t provide power any more.

Plug and Play

Din-rail Mounted

Industrial Working Temperature

Widely Application

Product Name 5 Port Industrial PoE+ Network Switch (12V-48VDC input and 48VDC output) Uplink Ports 1 Gigabit Ethernet Port Downlink Ports 4 Gigabit Ethernet Ports with PoE POE Budget 120W (DC24V/48V), 60W (DC12V) POE Standard POE AF/AT Input Voltage 12-48VDC (Sold without power adapter), redundant power supply Mount Type DIN-Rail/Wall-Mount Working Temperature -40～75℃（-40～167°F）

5-PORT FULL GIGABIT INDUSTRIAL POE+ NETWORK SWITCH – Provide 4 IEEE802.3af/at 30W POE network ports and 1 Gigabit uplink network port; All ports are 10/100/1000Mbps. Total POE budget can reach 120W for DC24V/DC48V input.
DC12V-48V POE NETWORK SWITCH – Support DC12V-48V input and standard IEEE802.3af/at POE output with built-in voltage booster which can be used for solar power and other DC12V/DC24V power supply.
INDUSTRIAL DESIGN – Meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards.Working temperature is -40°～ 75°C(-40 ℉ to 176 ℉), 6KV lightning protection.
DUAL POWER INPUT – The 5port POE switch supports dual DC12V-48V power inputs and once one power supply fail , it will switch to another one automatically, which ensure the system can work more stable. POWER ADAPTER IS SOLD SEPARATELY
WHAT WE PROVIDE – 1pc industrial 5port Gigabit POE+ network switch (without power adapter). Replacement within 1 year and 5 years repairing and lifetime technical support.
