Industrial 8 Ports Managed PoE Fiber Switch Gigabit Web Management Switch with 100/1000M Adaptive 2 SFP Slots Din Rail Small Network Switch 802.3at 30W/240W Support QOS, VLAN, IGMP 48-57VDC

Price: $126.00
(as of Aug 20, 2024 09:02:19 UTC – Details)

Product Description

Overview

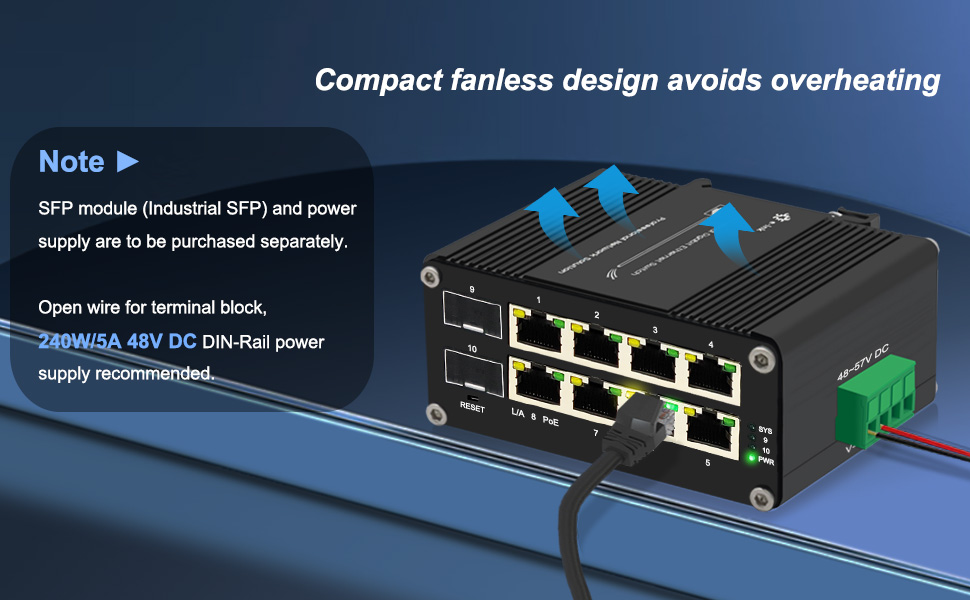

This is a managed industrial network switch with 8 ports 10/100/1000Base-TX RJ45 and 2 ports 100/1000Base-X SFP. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Features

► 8×10/100/1000Base-TX + 2×100/1000Base-X SFP

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports WEB Management

► Support IEEE 802.3D/W/S standard STP/RSTP protocol

► 48~57V DC redundant power with reverse polarity protection

► Supports DIN-Rail installation and -40°C to 80°C (-40°F to 176°F) operating temperature.

Support Cascading

Up to 8 ports of IEEE 802.3at/af devices powered, PoE budget up to 240w

Smart terminal devices supported by different PoE standards IEEE802.3af/at

► Supports 802.3x Flow Control

► Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode

► IEEE 802.3az Energy Efficient Ethernet (EEE)

Packet forwarding rate: 14.88Mpps

Forward & Filtering Rate: 14,880pps (10Mbps); 148,800pps (100Mbps); 1,488,000pps (1000Mbps)

Software Features

Redundancy Protocols: Support STP/RSTP

Multicast Support: Support IGMP Snooping V1/V2/V3

VLAN: Support IEEE 802.1Q 4K VLAN

QOS: Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight

Diagnostic Maintenance: Support port mirroring, Syslog, Ping

Management Function: WEB

Security: Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint

Ethernet Standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3at Power over Ethernet Plus PSE

IEEE 802.3af Power over Ethernet Plus

Application

This series of industrial Switches can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a green low power industrial Ethernet switch.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars
20

4.4 out of 5 stars
20

4.4 out of 5 stars
20

4.4 out of 5 stars
20

4.5 out of 5 stars
13

4.5 out of 5 stars
13

Price

$46.00$46.00 $64.90$64.90 $55.20$55.20 $86.30$86.30 $85.00$85.00 $129.00$129.00
Support PoE
No
✓
No
✓
No
✓

PoE Total Power Output
/ 90W(30W Per Port) / 120W(30W Per Port) / 240W(30W Per Port)
Active PoE Standard
/ IEEE802.3af/at / IEEE802.3af/at / IEEE802.3af/at
Switch Capacity
8Gbps 8Gbps 10Gbps 10Gbps 20Gbps 20Gbps
Power Input
Redundant Power 12-48V DC Redundant Power 12-48V DC Redundant Power 12-48V DC Redundant Power 12-48V DC Redundant Power 12-48V DC Redundant Power 48-57V DC
Power Comsuption
<5W <95W <5W <132W <10W <253W
Mount Method
Din-Rail&Wall Mount Din-Rail&Wall Mount Din-Rail&Wall Mount Din-Rail&Wall Mount Din-Rail Din-Rail

【Port Configuration】Equipped with 8 10/100/1000Base-T RJ45 ports IEEE80.3af/at 30W with Auto MDI/MDI-X and 2 SFP slot 100Base-FX or 1000Base-X dual mode (auto detection).
【Compliant with IEEE802.3af/at】The 8-port Ethernet fiber switch supports IEEE802.3af/at PoE Standard, each port max power can reach 30W and maximum 240W high total power PoE output.
【Support Management】The gigabit fiber switch support web, redundancy protocols: support STP/RSTP. Multicast support: support IGMP snooping V1/V2/V3. VLAN: support IEEE 802.1Q 4K VLAN.
【Redundant Power Input】The industrial network switch with DC48-57V voltage input supports 2-way industrial grade power interface input, one set of power supplies fails, and the other set can still work, high reliability ensures continuous operation.
【Industrial Grade Quality】The din-rail switch with industrial grade aluminum alloy housing can work in a wide temperature range from -40°C to 80°C (-40°F to 176°F) and 6KV lightning protection which make it can adapt to various harsh environments.
