Industrial Fiber PoE+ Ethernet Switch 8 Port 10/100/1000Base-T + 4 Port 1.25G SFP + 2 Port 10G Based-SR/LR SFP+ Gigabit Unmanaged Switch 240W PoE Out Full/Half-duplex Auto MDI/MDIX 48-57V Input

Price: $274.59
(as of Sep 20, 2024 18:02:18 UTC – Details)

Product Description

Product Description

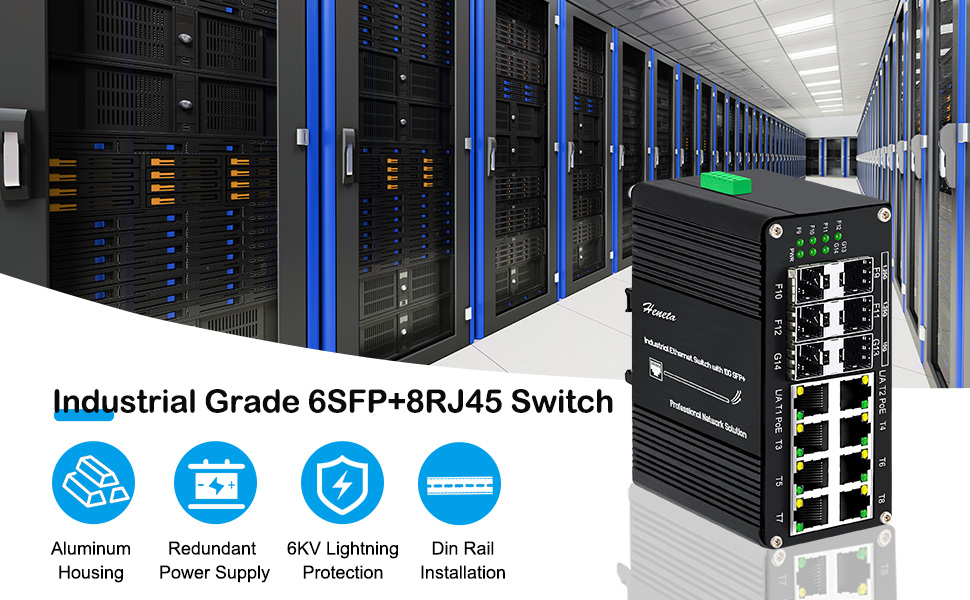

LNK-IMC2X4S8GP Series is 8-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. 2 10G Base-SR/LR ports supports SFP+ module. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Product Features:

► 8×10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE802.3af/at compliant

► Supports 802.3x Flow control

► 9K Bytes Jumbo Frame

► Redundant Power Inputs

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

Why do you need Choose Our POE+ switch?

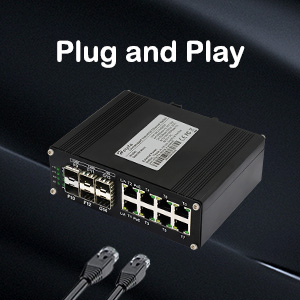

Plug and play

No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables.

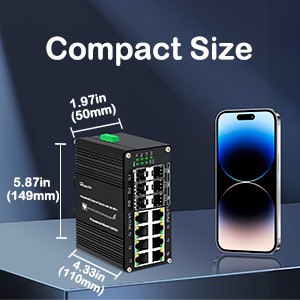

Compact Size

Compact design saves space, which is particularly important for industrial environments with limited space.

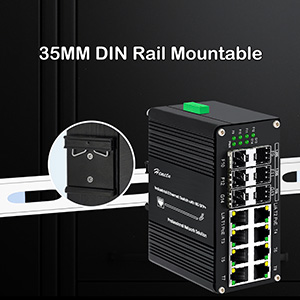

35MM DIN Rail Mountable

35mm din-rail mounting bracket can install on universal din rail slot. Installation and disassembly are very simple.

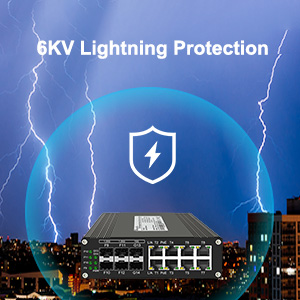

6KV Lightning Protection

6KV lightning protection make the Ethernet Optic Switch can adapt to various harsh environments.

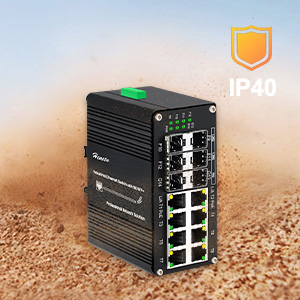

IP40 Protection Grade

The Gigabit PoE+ Switch is equipped with a rugged IP40 rated enclosure and designed to dustproof and waterproof.

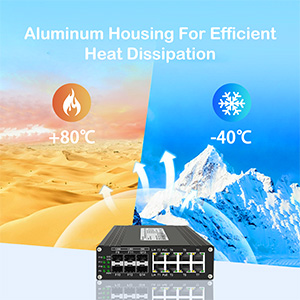

Aluminum Housing

The Hardened Industrial Switch is made of Aluminum Case, with efficient heat dissipation can work in a wide temperature range from -40℃ (-40°F) to 80℃ (176°F).

Wide Range of Applications

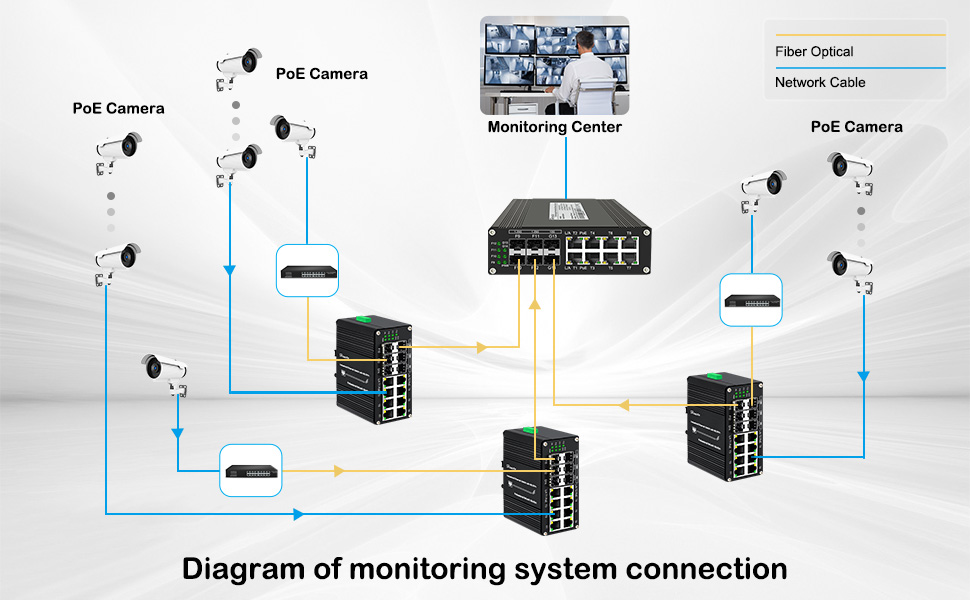

With its reliable design and ease of use, the gigabit Ethernet Switch is a great choice for integrating networks consisting of network devices such as PoE cameras, router, gaming console, printer, laptop, Internet and so on.

Application Area : New Energy, Urban Transportation, Srever Room, Industrial Automation and so on.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars
50

4.4 out of 5 stars
50

4.4 out of 5 stars
50

4.4 out of 5 stars
50

4.4 out of 5 stars
50

Price

$89.99$89.99 $99.59$99.59 $89.59$89.59 $167.99$167.99 $89.59$89.59
Price
$89.99 $99.59 $219.59 167.99 89.59
Gigabit Ethernet PortS
5 x1G 5 x1G 12 x1G 6 x1G 10 x1G
PoE Ports
4 x PoE Ports 4 x PoE Ports / 4 x PoE Ports /
SFP Gigabit Ports
/ 1 X 1000Base-X SFP 4 X 1000Base-X SFP 2 X 1000Base-X SFP /
Other Ports Type
1X Uplink Port / 2 Ports 10G Base-SR/LR SFP / 1X Uplink Port
PoE Total Budge
120W 120W / 120W /
Power Input
12~48VDC 12~48VDC 12~48VDC 48VDC 12~48VDC
Aluminum Case

✓

✓

✓

✓

✓

Mounting Options
DIN-Rail / Wall-mount DIN-Rail / Wall-mount DIN-Rail DIN-Rail DIN-Rail

【Port Configuration】The Gigabit PoE+ Switch built-in 8 x 10/100/1000Base-T PoE + 4 x 1.25G SFP ports + 2 x 10G SFP+ ports support Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX, hot-plug and play
【High Efficiency and Energy Saving】The Fiber Network Switch support 9K byte Jumbo Frame improve data transfer efficiency and IEEE 802.3az Energy Efficient Ethernet (EEE)
【Industrial Grade Quality】The Optical Ethernet Switch with aluminium alloy case, robust and durable,can work in a wide temperature range from -40°F to 176°F which make PoE Switch can adapt to various harsh environments
【High PoE Power & Redundant Power Input】The Industrial Optic Switch maximum support 240W PoE output , complaint IEEE 802.3af/at, each port max power supply reached 30W and Redundant Power Input ensure PoE Switch continuous operation
【Din-Rail Mount】The 8 RJ45 ports Gigabit Optic switch with din-rail mounting bracket, can install on universal din rail slot. Installation and disassembly are very simple
