Industrial Hardened Gigibit Managed Fiber/PoE+ Ethernet Switch,16 x 10/100/1000T RJ45 Port + 4 x 1000Base-X SFP Slot+USB-C for Management (ETH-DIMC2416MP)

Price: $349.00
(as of Sep 12, 2024 09:02:14 UTC – Details)

Product Description

Industrial L2+ 16-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch

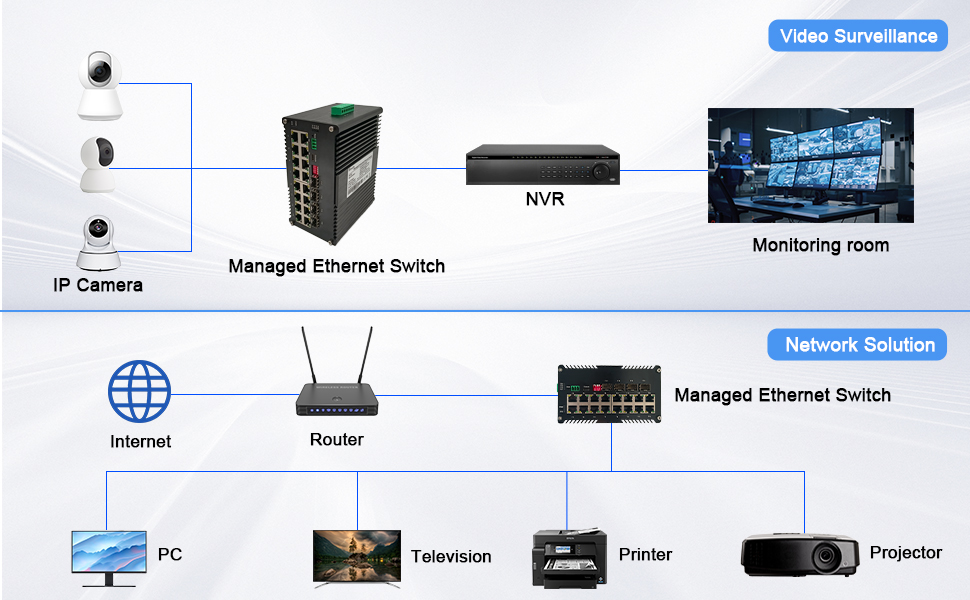

ETH-DIMC2416MP Series is the L2+ managed 16-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 16 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Features:

► Support 16×10/100/1000Base-T + 4x1000Base-X SFP +

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE802.3af/at compliant

► DIP Switch supports one-key VLAN, one-key Ring Management

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► 10K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

Industrial Grade Quality

Made of Dustproof, Close Design IP40 and Rugged High-strength Aluminium Alloy CaseWork in Operating Temperature -40°C to 80°C (-40°F to 176°F)With Lightning Protection

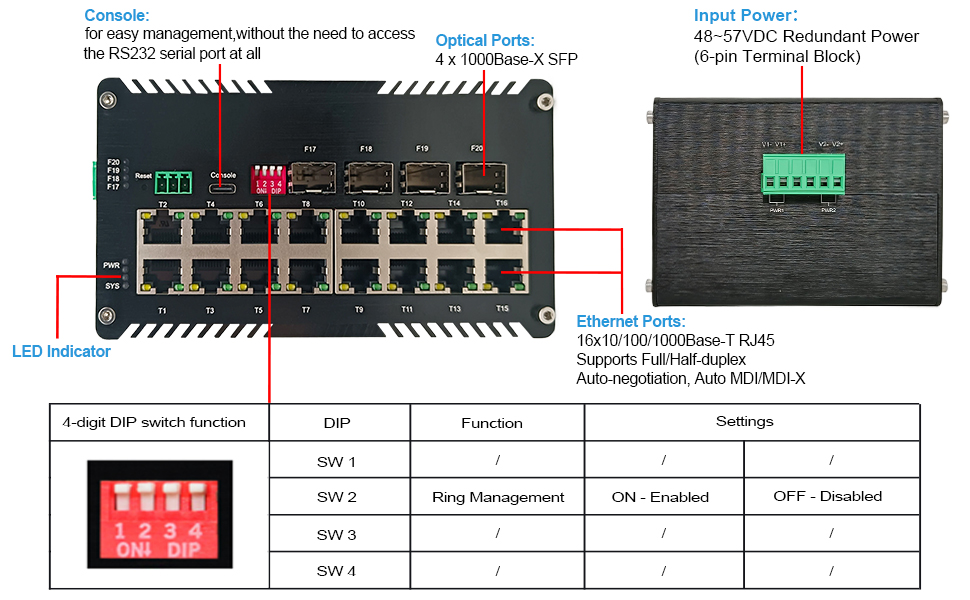

Industrial PoE Switch

T1~T16: 10/100/1000Mbps Ethernet (PoE) PortF17~F20: Gigabit SFP Optical Port ( (Please note that the SFP module is not included in the package.)Power Industrial Terminals: 12~48VDC（Non-PoE）, 48~57VDC（PoE）DIP Switch supports one-key VLAN, one-key Ring ManagementUSB-C port for easy management, without the need to access the RS232 serial port at all

How to Make it Work

Connect the RJ45 port of the Switch to Network the device with a network cable.Plug in the 1.25G SFP module and insert the LC connector of Patch cord in to the LC port of SFP transceiver.After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection.After all cables are correctly connected, check the indicators status and do trouble shooting accordingly.

Powerful Performance

Backplane bandwidth:110GbpsMax Packet Length: 10K Bytes Jumbo FrameAddress Table Size: 8K MAC AddressesRedundancy Protocols (STP/RSTP/MSTP/ERPSv2, Link Aggregation)VLAN (IEEE 802.1Q 4K VLAN，support QINQ, Double VLAN)Multicast/QOS/ACL/SNTP/PoE Management/SecurityDiagnostic Maintenance (Port mirroring, Syslog, Ping)Advance Layer 2+ Features (IPv4/IPv6 Management/ Static Route)Ethernet Standards: IEEE802.3 10BASE-T/ IEEE802.3u 100BASE-TX/FX/ IEEE802.3ab 1000BASE-T/ IEEE802.3z 1000BASE-X/ IEEE802.3p QoS/ IEEE802.1d Spanning Tree

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Price

$238.79$238.79 $217.99$217.99 $349.00$349.00 $694.79$694.79 $39.50$39.50 $127.59$127.59
PoE

✓
–
✓

✓
–
✓

PoE Budget
Up to 240-watt PoE budget Up to 480-watt PoE budget Up to 720-watt PoE budget – Up to 240-watt PoE budget
Backplane bandwidth/Switch Fabric
24Gbps 110Gbps 110Gbps 110Gbps 10Gbps/non-blocking 20Gbps/non-blocking
Jumbo frames
9KB 9KB 10K 10K – –
Address Table Size
8K 8K 8K 8K 8K 4K
Power Input
48~57VDC, Redundant Power 12~48VDC, Redundant Power 48~57VDC, Redundant Power 48~57VDC, Redundant Power 12~48VDC, Redundant Power 48~57VDC, Redundant Power
IP40 Aluminum Case

✓

✓

✓

✓

✓

✓

Power Comsuption
15W Max. (PoE in Use<240W) 8W Max. 8W Max.(PoE in Use<480W) 8W Max.(PoE in Use<720W) 6W Max 4K
Operating Temperature
-40°C to 80°C (-40°F to 176°F) -40°C to 80°C (-40°F to 176°F) -40°C to 80°C (-40°F to 176°F) -40°C to 80°C (-40°F to 176°F) -40°C to 80°C (-40°F to 176°F) -40°C to 80°C (-40°F to 176°F)
Mounting
DIN-Rail DIN-Rail DIN-Rail DIN-Rail DIN-Rail,Wall-mount DIN-Rail

【Port Configuration】This Hardened Industrial Managed SFP Ethernet Switch from Hereta provides 16 x RJ45 Port 10/100/1000T 802.3at PoE,suporting full/half-duplex, auto-negotiation, auto MDI/MDIX connection;4 x SFP Port 1000Xsupporting 1 or 2 core single-mode or multi-mode fiber;
【Management Features】 This Optical Managed Switch support connecting USB-C port for easy management, without the need to access the RS232 serial port at all. DIP Switch supports one-key Ring Management.
【Wide Range Power Input & Redundant Power Input 】Our Managed Fiber Switch are designed with dual power inputs and supports 12~48VDC input（Non-PoE）,48 to 57 VDC input (POE) and PoE budgets up to 720 watts, providing you with great flexibility.
【Industrial Quality】Our Optical Managed Switch features IP40 Aluminum Case and are IEEE 802.3az Energy Efficient Ethernet (EEE),IEEE802.3af/at compliant,which greatly reduces device power consumption and allows them to be used in harsh ambient operating temperatures such as -40°C to 80°C (-40°F to 176°F). It supports Din Rail mounting and is suitable for use in a variety of locations such as garages, attics, and dusty areas.
【Compatibility Standards】 With PoE+ function,this Industrial L2+ Managed Ethernet Switch with 10K Bytes Jumbo Frame supports Redundancy Potocols (STP/RSTP/MSTP/ERPSv2, Link Aggregation),Multicast ( IGMP Snooping V1/V2/V3,GMRP, GVMP,802.1Q),VLAN,QOS,ACL,Diagnostic Maintenance (e.g. Port mirroring, Syslog and Ping),etc.
