Industrial Network Switch, 5 Port RJ45 Outdoor Ethernet Gigabit Switch Din Rail Mount 10 Gbps Capacity for lP Camera Tower,Satellite Dish,Closet,Solar Trailer Project

Price: $37.99
(as of Aug 31, 2024 21:02:13 UTC – Details)

Product Description

Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power input. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.

Detailed parameters

5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X functionSupports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex12~48VDC wide range power input Supports 802.3x Flow controlComplies with IEEE 802.3az Energy Efficient Ethernet (EEE)Industry standard design, dustproof and close design IP40, rugged high-strength metal case -40°C to 80°C (-40°F to 176°F) operating temperature

5 Port Gigabit Industrial Ethernet Switch Product Specifications

✔ Interface Parameters : 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

✔ Standards and Protocols: IEEE 802.3 Ethernet,IEEE 802.3u Fast Ethernet,IEEE 802.3ab Gigabit Ethernet,IEEE 802.3x Full-Duplex Flow Control,IEEE 802.3az Energy Efficient Ethernet (EEE),IEEE 802.3af/at Optional

✔ Switch Properties:

Switching Capacity: 10Gbps

Forwarding Rate:14,880pps (10Mbps)

Packet Buffer:1Mbits

Packet Length:10Kbytes

MAC Address Table:8K

MTBF> 200,000 hrs

✔ Temperature and Humidity: Operating Temperature : -40~176°F

✔ Protection Grade: IP40 Protection Grade

✔ Installation: DIN-Rail Mounting/Wall mounting

✔ MTBF > 200,000 hrs

✔ Power Characteristics:

Dual Redundant Power Input

Power Input：DC 12~48V（Power not included)

Power Consumption: < 6W

Protection: Overload Current Protection • Reverse Polarity Protection

Cooling Method: No-fan, low power natural cooling

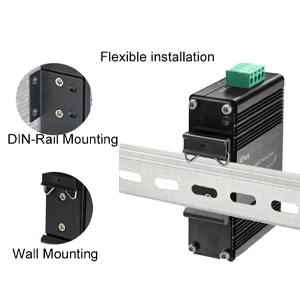

DIN Rail Mounting&/Wall mounting

You can choose to mount outdoor ethernet switches on din-rail rack or walls.

The industrial gigabit switch installation and disassembly are very simple

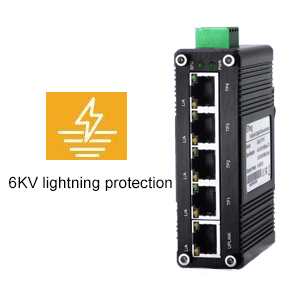

6KV Lightning Protection Design

The industrial switch’s 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.

IP40 Protection

5-Port industrial ethernet switch adopt with high strength IP40 protective housing, Bring better seismic effect. The industrially strong housing also allows them to work in extreme weather（in extreme temperatures ranging from -40ºC to 80ºC.）

Wide Range of Applications

This 5-Port Gigabit Industrial Ethernet Switch is specially designed for harsh industrial and outdoor environments.

Such as: Solar Power Energy, Manufacturing, Intelligent Transpotation, Factories, Warehouse, Refineries and Garage Wall, Vehicle, RV Park, Attic, Barn.

Gigabit Switch: 10/100/1000 BASE-T 5 port RJ45 with auto-MDI MDI-X function; Industrial gigabit switch supports auto-negotiation and 10,100 Mbps half full duplex and 1000 Mbps full duplex
Industrial Grade: Industrial ethernet switch are made of industrial aviation aluminum material, with heat dissipation performance far superior to ordinary metal shells; The working temperature is -40 ° C to 80 ° C (-40 ° F to 176 ° F), and the protection level is IP40.Suitable for outdoor work in harsh environments
Universal for DC 12-48 V: Dual power supply design, prevent accidents,the 5 port industrial gigabit switch support 12-48 V DC redundant power input and boost to 48 V output; Suitable for the most of computer rooms, solving the problem of collective power supply during use
6KV Lightning Protection: Our industrial network switch surge protection design and makes it can be used in harsh environment and can survive from lightning strikes up to 6KV
What You Get: You will get 1 x 5 port industrial gigabit switch ,1 x user manual and 1 x wall mount bracket; We provide 12-month after sale service, lifetime technical support; Pls feel free to contact us if you have any concerns,we will reply to you to solve your problem in 24H
