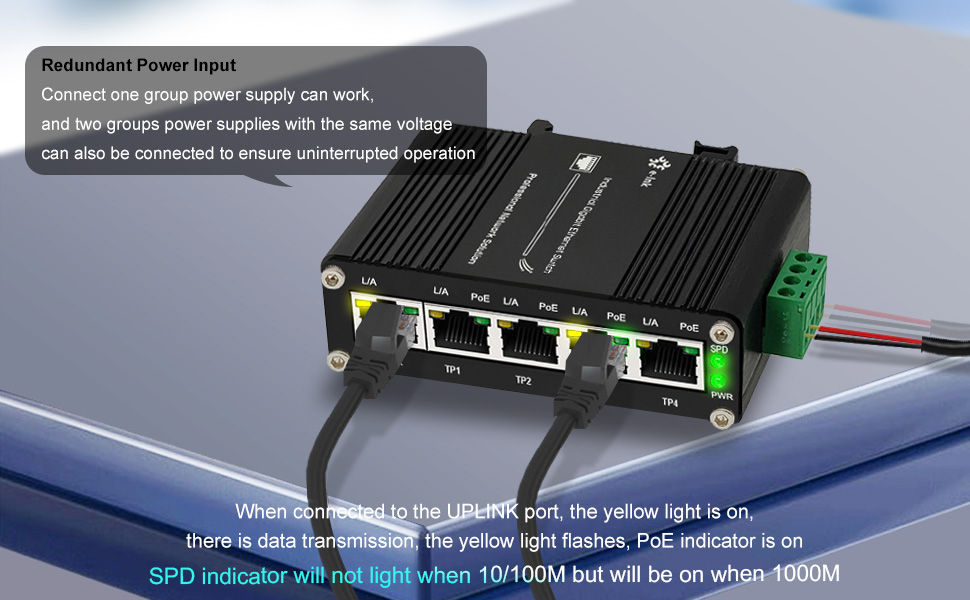

Industrial Passive 24V 5 Ports PoE Switch Gigabit RJ45 Din Rail 10/100/1000Mbps Ethernet Switch Unmaneged Switch PoE Switch 12-24V Input 24V Output Passive Switch

Price: $89.00
(as of Aug 21, 2024 09:02:16 UTC – Details)

Product Description

5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with 4 PoE Output (Port-1 to Port-4)

12~24VDC range power input, 24V PoE Output

Supports DIN-Rail and Wall-mount installation

Industry standard design, dustproof and close design IP40, rugged high-strength metal case

-40°C to 80°C (-40°F to 176°F) operating temperature

The item is an industrial hardened gigabit passive PoE switch allows you to connect the 24v passive PoE devices such as camera and access point with a non PoE LAN switch within the distance of 100m. The maximum power of each port is 18W, and the maximum total power output is 72W.

Packet Buffer 1Mbits Packet Length 9Kbytes MAC Address Table 4K Backplane Bandwidth 10Gbps Power Input 12~24VDC (Terminal Block) Power Pin Assignment 4,5(+); 7,8(-) Mode-B Power Input Overload Automatic Resettable Reverse Polarity Present Power Consumption 5W (In idle state) Power Consumption 77W Max. (PoE in use)

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

5.0 out of 5 stars
1

4.5 out of 5 stars
27

4.5 out of 5 stars
27

4.3 out of 5 stars
4

5.0 out of 5 stars
1

4.4 out of 5 stars
8

Price

$109.00$109.00 $14.90$14.90 $13.90$13.90 $83.70$83.70 $49.00$49.00
—

✓

✓

✓

✓

✓

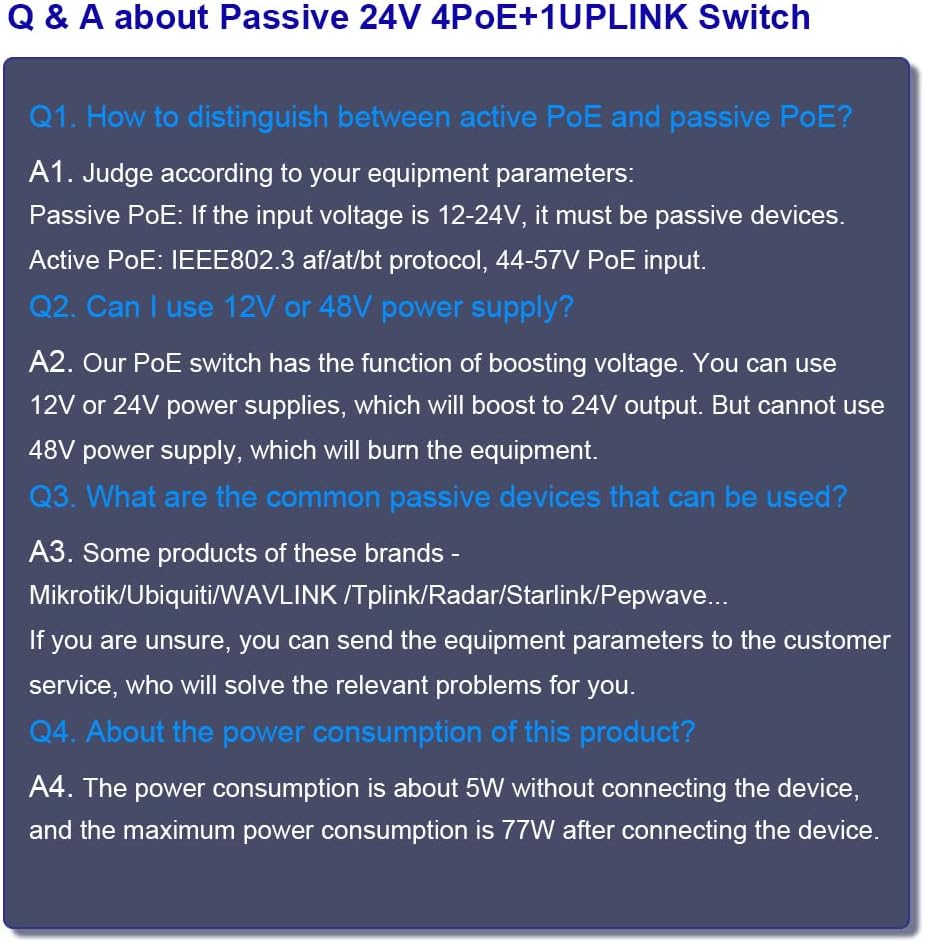

Note: If you are not sure whether our PoE switch meets your requirements, please let our professional to help you determine. Because passive PoE is directly powered, if it does not meet the requirements, it may burn equipment.

【12-24V DC Input】- The passive PoE switch supports 12-24V DC input and increases voltage to 24V PoE output. It will solve the problem that you only have 12-24V without 24V centralized power supply.
【10/100/1000Mbps Ethernet】– The industrial passive 5 ports Ethernet PoE switch has 5 RJ45 ports 10/100/1000Mbps.
【3.74×2.76×1.18in Ultra Small】 – The passive 5 ports Ethernet PoE switch has smaller size than other switches, it only need small space to place it. Convenient and easy to install.
【Din-Rail & Wall Mount】- The passive gigabit PoE switch come with 35mm din-rail mounting bracket and wall mount accessory.
【About】- We will provide perpetual customer service, so don’t hesitate to contact us about product related questions. And if the product has quality problems within one year, you can contact us for a new one.
