Industrial Switch,Industrial Ethernet Network Switch 8 Prot RJ45 +2 Port 1000 Mbps SFP Din Rail Mount 20Gbps Capacity Universal for 12-48 V DC Power Input

Price: $84.69
(as of Aug 30, 2024 21:02:17 UTC – Details)

Product Description

Overview：

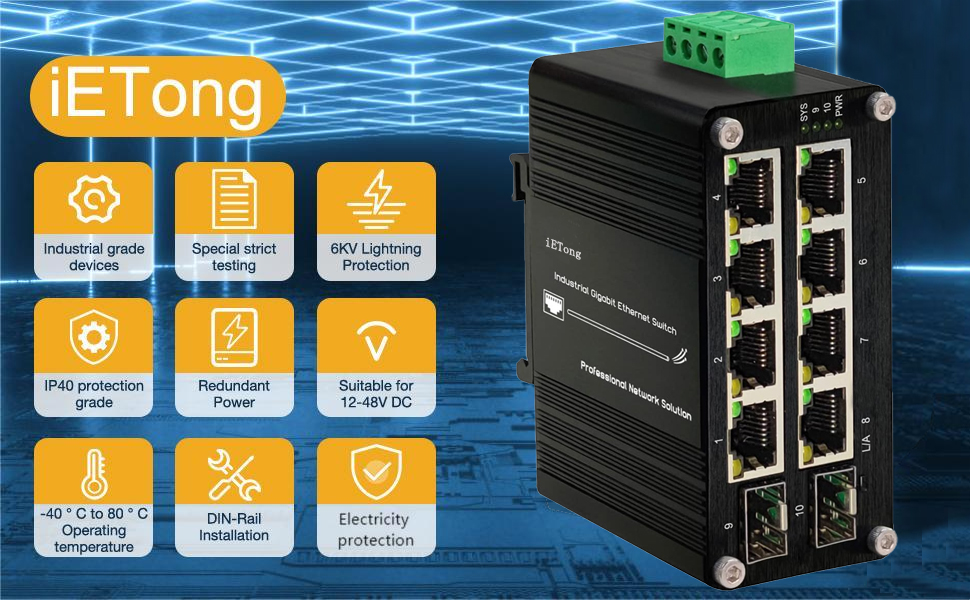

iEtong this 8×10/100/1000Mbps RJ45+ 2x1000Mbps SFP hardened industrial gigabit ethernet switch. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Standards：

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

8 Port Industrial Gigabit Switch Specification

Connector 8 x RJ45 Optical Port 2 port 100/1000Base-X SFP switch Backplane bandwidth 20Gbps Packet Buffer Memory 9216 bits Input Power 12~48VDC, Redundant Power (4-pin Terminal Block) Power Consumption 5W Max Power Input Overload Automatic Resettabl Reverse Polarity Present Storage Temperature 40°C to 85°C (-40°F to 185°F) Ethernet (Per Port) Link/Activity Fiber Gigabit SFP Port: F9~F10 Shell IP40 protection grade, metal shell Security Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint Dimensions (WxDxH) 95 x 88 x 46 mm，300g

6KV lightning protection & Preferred in harsh environments

The industrial gigabit ethernet switch’s 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.and it can work in a wide temperature range from -40°C to 80°C (-40°F to 176°F)

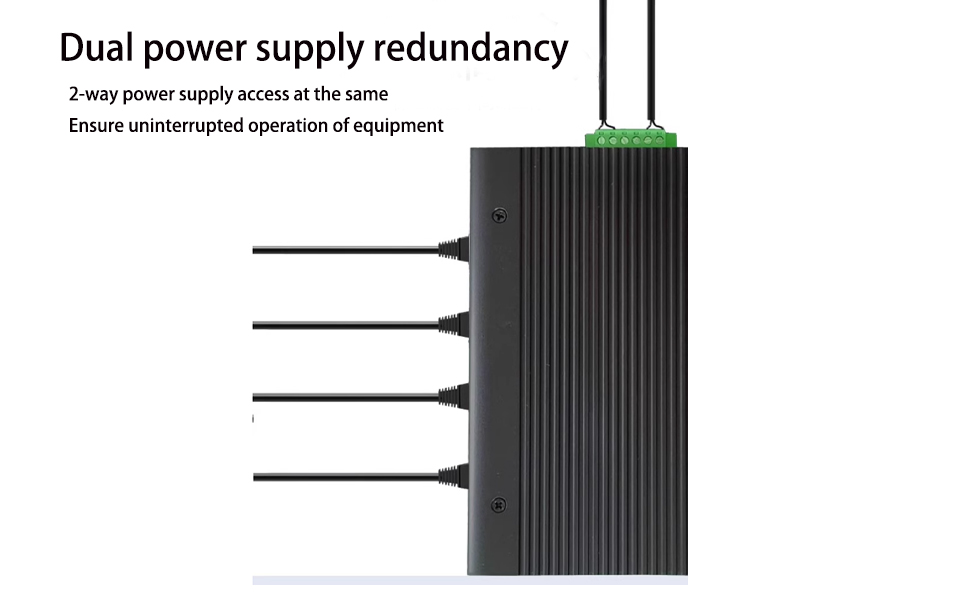

Redundant Power Inputs

This industrial unmanaged ethernet switch support dual redundant power supply(Power not included,is to be purchased separately.).Each of the power supplies will have the capacity to run the device on its own. This makes sure that the DIN-Rail switch could operate normally even if one power supply fails.

Key Features:

Q: Does 8 port industrial ethernet switch include the power supply?

A: No, not included,Power Supply is to be purchased separately

Q: Can I use supplies of differing voltage as the redundant power ? For example, 12v and 24v without unwanted effects or damage?

A: Yes, you can use supplies of differing voltages. There will be no ill effects, the switch’s internal regulators were designed to handle a wide range of 12-48v voltage inputs.

Q: What temperature range can outdoor ethernet switch device handle?

A: The operating temperature is -40～80℃（-40～176°F）

Q: Does it come with a small din rail?

A: The DIN-Rail industrial switch support 35mm din rail ,but the din rail is not included.

Q: Does industrial ethernet switch have any management capability?

A: No,This is a unmanaged industrial ethernet switch.

Q: Is this unit fanless?

A: Yes, the unit is fanless. No noise.

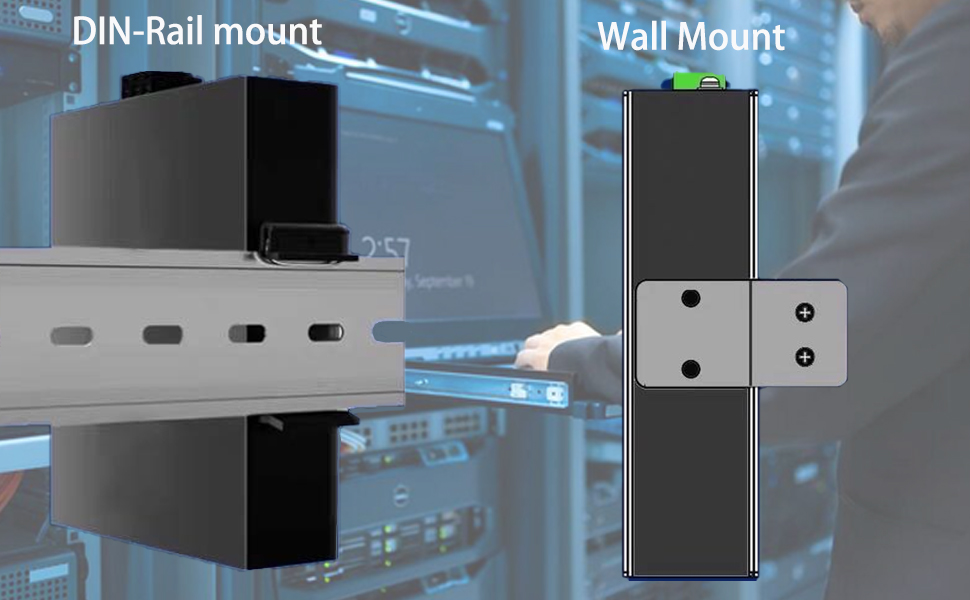

Rail Mount & Wall Mount

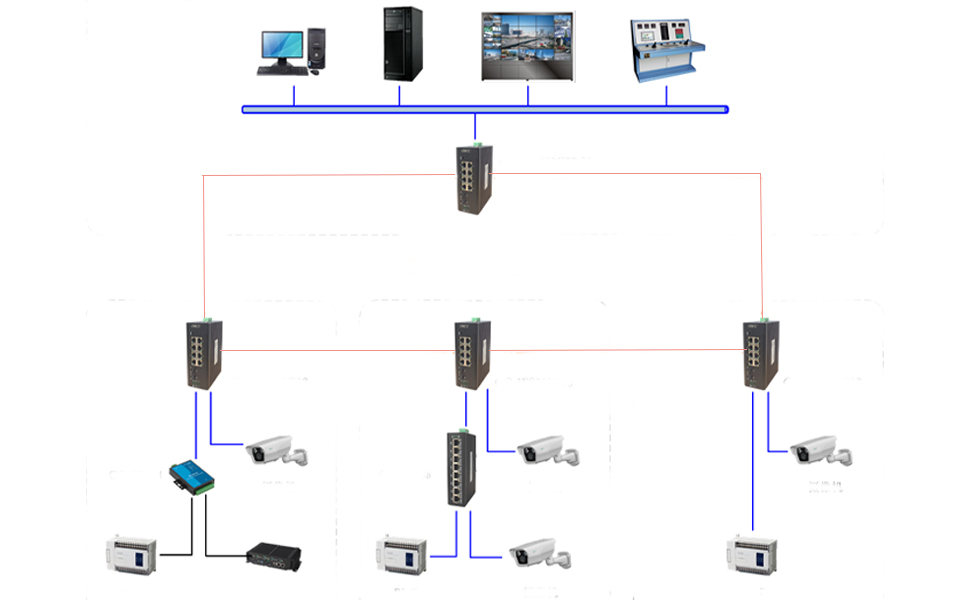

Applications for Industrial Switches

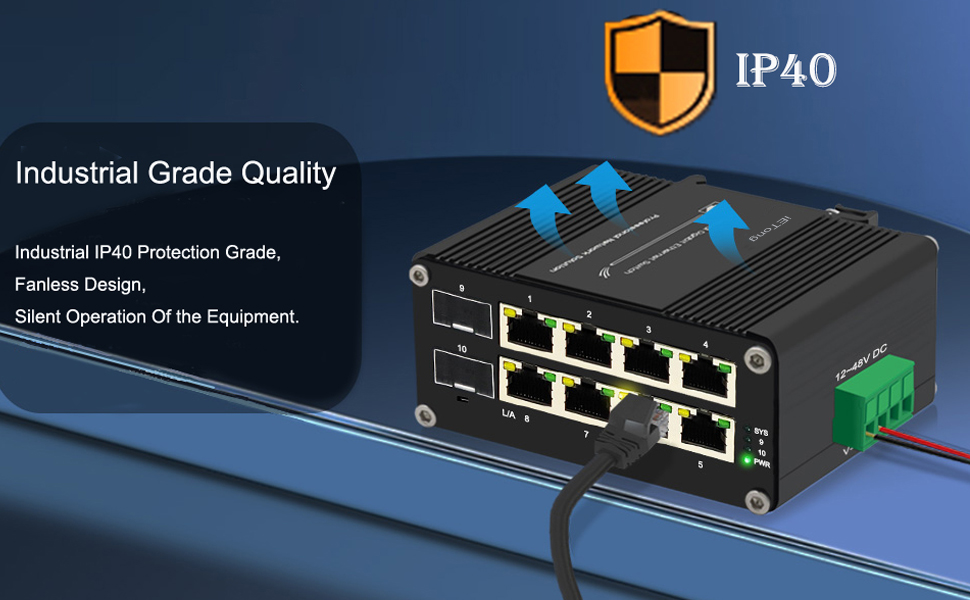

Industrial grade: 8 port industrial poe switch are made of industrial aviation aluminum material, with heat dissipation performance far superior to ordinary metal shells,and the protection level is IP40; Work no problem from harsh environment, dust, high or cold temperature, etc; and 6KV lightning protection suitable for outdoor work in harsh environments
8 Port Industrial Gigabit Switch: 8×10/100/1000 Mbps RJ45+ 2×1000 Mbps SFP with auto-MDI MDI-X function;Supports auto-negotiation and 10 100 Mbps half full duplex and 1000Mbps full duplex,Full/Half-duplex,9K Bytes Jumbo Frame
Industry Standard Design: Industrial ethernet switch supports 802.3x Flow Control for optimized data flow,IEEE802.3,802.3u,802.3ab,802.3z,802.3x store and forward mode, IEEE 802.3D W S standard STP RSTP protocol, Energy-efficient operation with IEEE 802.3az Energy Efficient Ethernet (EEE)
Usage Scenarios: 8 port industrial network switch small and exquisite appearance; It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless;Very suitable for commercial and household use, such as Transportation, Mall, Rail traffic, traffic control cabinets, Automated industry, Smart City
Redundant DC Power Inputs: This 8×10,100,1000 Mbps RJ45+ 2×1000 Mbps sfp ethernet gigabit industrial switch with Dual power supply design (4 Pin Phoenix terminal); automatic fault switching; Working voltage universal for DC 12V-48 V; Support anti-reverse protection, won’t damage the equipment, with higher reliability;(Tips: Power Supply is to be purchased separately)
After-Sales Service: You will get: 1 x industrial gigabit ethernet switch ,1 x installation accessories and 1 x user manual; If you have anything you don’t understand in the process of use, please let us know
