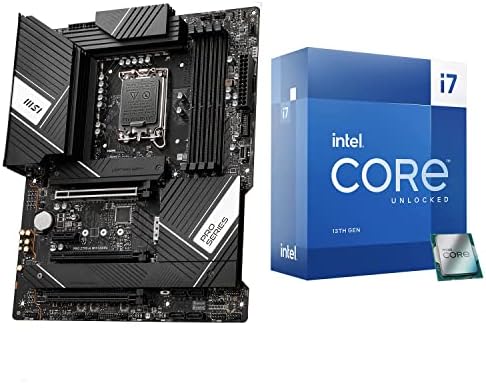

INLAND Micro Center Core i7-13700K Desktop Processor 16 (8P+8E) Cores up to 5.4 GHz Unlocked with Pro Z790-A WiFi DDR4 LGA 1700 ATX ProSeries Motherboard

Price: $589.99 - $534.99
(as of Apr 07, 2024 16:18:35 UTC – Details)

Product Description

Intel Core i7-13700K Desktop Processor Specification

Total Cores 16 Total Threads 24 Max Turbo Frequency 5.40 GHz Cache 30 MB Intel Smart Cache Total L2 Cache 24 MB Maximum Turbo Power 253 W Max Memory Size Dual Channel up to 192GB Memory Type DDR5/DDR4 PCI Express Revision 5.0 and 4.0 Processor Graphics Intel UHD Graphics 770 Sockets Supported LGA1700 ECC Memory Supported Yes

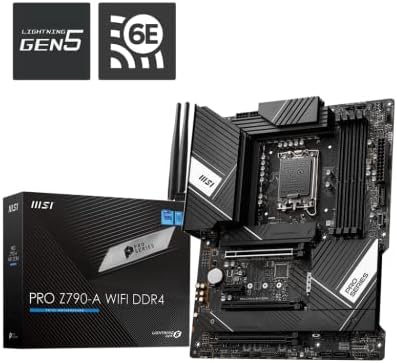

MSI PRO Z790-A WiFi DDR4 ProSeries Motherboard Specification

Form Factor ATX CPU Socket Support Dual Channel DDR4 up to 128GB M.2 Slot 4x PCIe 4.0 x4 SATA Slot 6x SATA 6GB/s USB 3.2 Gen2 Type A 3 USB 3.2 Gen2 Type C 1 USB 3.2 Gen2x2 Type C 1 LAN Intel 2.5Gbps LAN WIRELESS LAN & BLUETOOTH Wi-Fi 6E & Bluetooth 5.3 OPERATING SYSTEM Windows 11/ 10 64-bit

Supports Intel Core 12th & 13th Gen Processors

The PRO Z790-A WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: ATX

Socket Type: LGA 1700

Chipset: Intel Z790

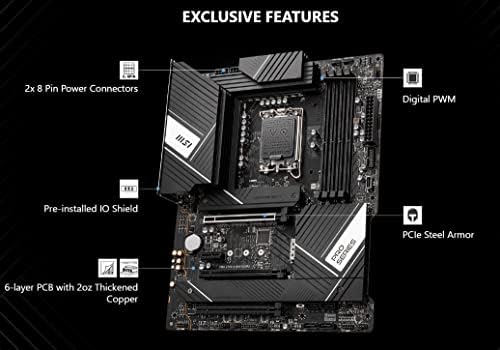

16 Duet Rail Power System with 80A Smart Power Stage

With its dual 8-pin power connectors and exclusive Core Boost technology, the PRO Z790-A WIFI is able to sustain heavy CPU power loads to support system-demanding settings:

1. Digital PWM IC

2. 16 Duet Rail Power System with 80A SPS

3. 1-Phase GT Power

4. 1-Phase AUX Power

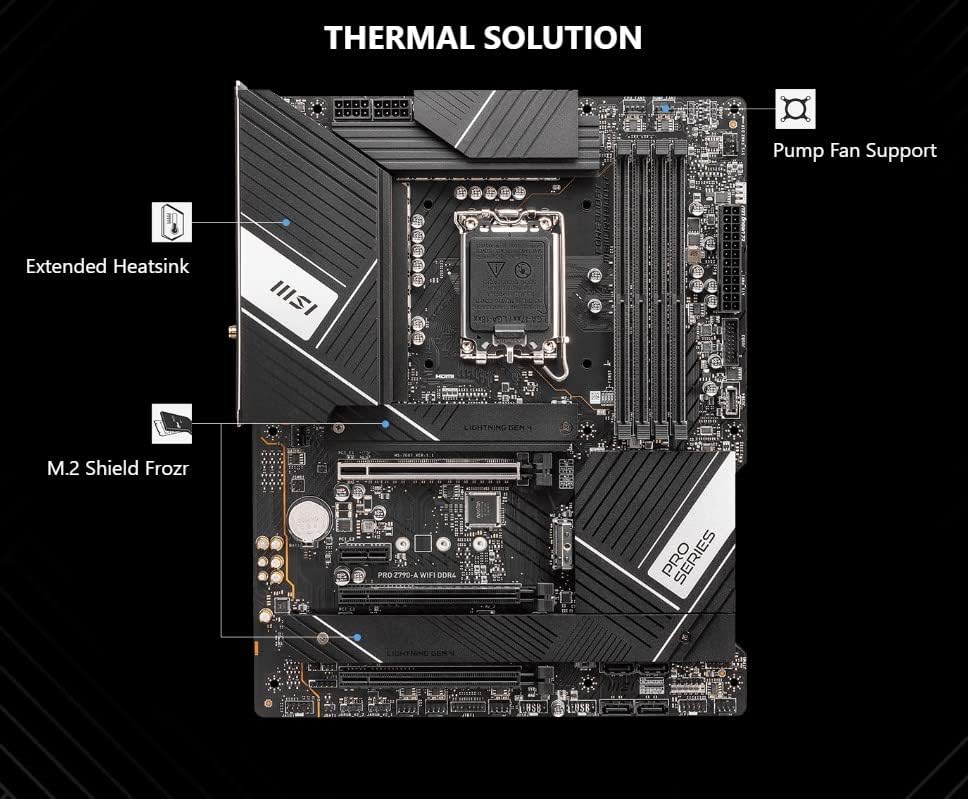

Integrated Cooling Features

VRM Cooling: Features an Extended Heatsink design and 7W/mK MOSFET thermal pads for improved thermal dissipation.

PCB Cooling: A 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & performance.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

Fortified PCI-e 5.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCI-e 5.0/4.0/3.0 x16 slot (with Steel Armor**)

1 x PCI-e 4.0/3.0 x16 slot*

* Supports x4

Lightning Gen4 M.2 Connectors

The PRO Z790-A WIFI motherboard features MSI’s latest M.2 slots:

4 x Gen4 x4 64Gb/s slots

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr: MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

4 x DDR4 Dual Channel (5333 MHz OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

* 1DPC 1R Max. overclocking frequency 5333+ MHz, supports Intel XMP.

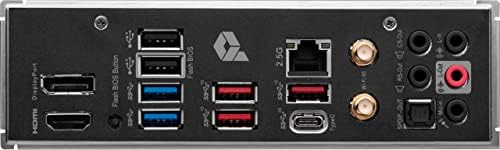

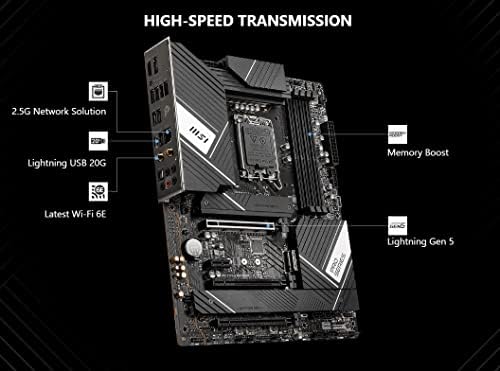

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.

HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.

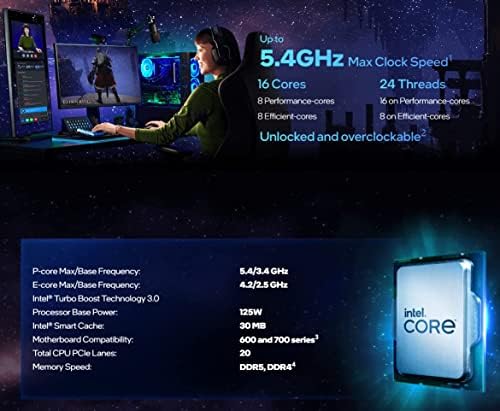

Intel Core i7-13700K 3.4 GHz processor features 16 cores (8 P-cores + 8 E-cores) and 24 threads. Compatible with Intel 600 series and 700 series chipset-based motherboards
Turbo Boost Max Technology 3.0, and PCIe 5.0 & 4.0 support. Intel Optane Memory support. No thermal solution included. Performance hybrid architecture integrates two core microarchitectures, prioritizing and distributing workloads to optimize performance
Intel LGA 1700 socket: Supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron Processors.DDR4 Memory, up to 5333+(OC) MHz
Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost. High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
