Micro Center AMD Ryzen 7 5700X 8-Core, 16-Thread Unlocked Desktop Processor Bundle with ASUS TUF Gaming B550-PLUS WiFi II AMD AM4 ATX Gaming Motherboard,Game Bundle

Price: $369.99 - $348.99
(as of Apr 07, 2024 17:21:45 UTC – Details)

Product Description

AMD Ryzen 7 5700X – Ryzen 7 5000 Series 8-Core Socket AM4 65W Desktop Processor – 100-100000926WOF

8-Core, 16-Thread Unlocked Desktop ProcessorCan deliver ultra-fast 100 plus FPS performance in the world’s most popular games, discrete graphics card required8 Cores and 16 processing threads, based on AMD “Zen 3” architecture4.6 GHz Max Boost, unlocked for overclocking, 36 MB cache, DDR4-3200 supportFor the advanced Socket AM4 platform, can support PCIe 4.0 on X570 and B550 motherboardsCooler not included

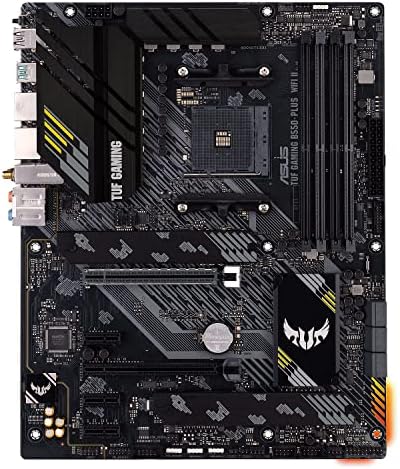

ASUS TUF GAMING B550-PLUS WIFI II AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard

Built for Performance Gaming

AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt 3 header, and Aura Sync RGB lighting support

AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop ProcessorsEnhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durabilityComprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utilityNext-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt 3 header supportMade for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuardAI noise-canceling microphone: provides crystal-clear in-game voice communication

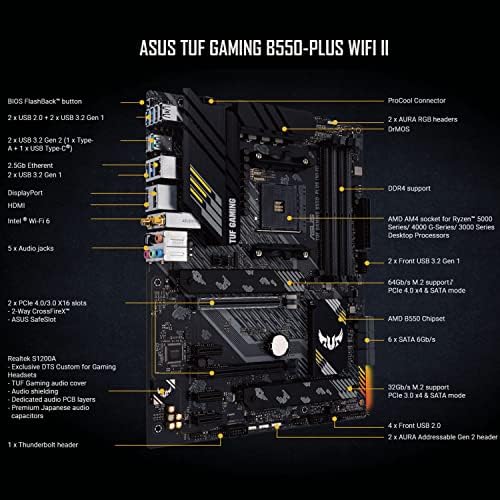

TUF GAMING B550-PLUS WIFI II MOTHEBOARD TECHNICAL SPECIFICATIONS

Chipset B550 Processor Socket Socket AM4 Processor Supported AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors Maximum Memory Supported 128GB Channel Supported Dual Channel HDMI 2.1 1 USB 3.2 Gen 1 5 USB 3.2 Gen 2 2 USB 2.0 ports 4 SATA 6Gb/s 6 x SATA 6Gb/s M.2 2 x M.2 slots (Key M) Form Factor ATX Windows 11 Supported

Cooler by design

A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.

High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.

The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

DrMOS

The onboard VRM of TUF GAMING B550-PLUS WIFI II utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and driver into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen Processors demand.

PCIe 4.0 M.2 (up to 64 Gbps)

TUF Gaming B550 series motherboards support PCIe 4.0 M.2 slot and provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

SafeSlot

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured via a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Networking

The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2 Gbps. Perhaps more importantly for power users, it’s optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Thunderbolt 3 support

An integrated Thunderbolt 3 header supports up to 40 Gbps of aggregate interface bandwidth. One Thunderbolt 3 port can support up to six devices in a daisy-chain, and provide up to 15 watts of power to fast-charge devices.

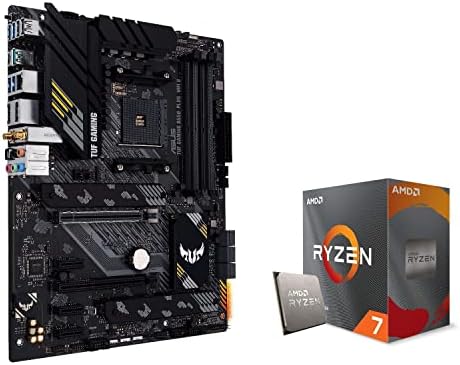

AMD Ryzen 7 5700X CPU Processor and ASUS TUF Gaming B550-PLUS WiFi II Motherboard Bundle Combo,Gaming bundle,Can deliver ultra-fast 100+ FPS performance in the world’s most popular games
AMD Ryzen 7 5700X CPU Processor :8-Core, 16-Thread, based on AMD “Zen 3” architecture,4.6 GHz Max Boost, unlocked for overclocking, 36 MB cache, DDR4-3200 support,Socket AM4 65W,Cooler not included, discrete graphics card required
ASUS TUF Gaming B550-PLUS WiFi II AMD AM4 (3rd Gen Ryzen) ATX Gaming Motherboard,AM4 AMD B550 SATA 6Gb/s
PCIe 4.0, WiFi 6, 2.5Gb LAN, BIOS Flashback, USB 3.2 Gen 2, Addressable Gen 2 RGB Header and Aura Sync)
With Robust Power Design and Optimized Thermal Solution,High-performance Gaming Networking and Gaming Connectivity
