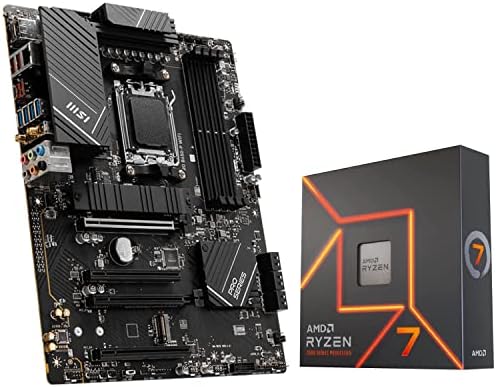

Micro Center AMD Ryzen 7 7700X 8-Core 16-Thread AM5 5.4 GHz Unlocked Desktop Processor Bundle with MSI PRO B650-P WiFi ProSeries Motherboard (AMD AM5, ATX, DDR5, PCIe 4.0)

Price: $739.98 - $499.99
(as of Apr 07, 2024 14:08:04 UTC – Details)

Product Description

This dominant gaming processor can deliver fast 100+ FPS performance in the world’s most popular games8 Cores and 16 processing threads, based on AMD “Zen 4” architecture5.4 GHz Max Boost, unlocked for overclocking, 80 MB cache, DDR5-5200 supportFor the state-of-the-art Socket AM5 platform, can support PCIe 5.0 on select 600 Series motherboardsCooler not included

AMD Ryzen 7 7700X CPU Processor Specification

Cores/ Threads 8/ 16 Max. Boost Clock Up to 5.4GHz Base Clock 4.5GHz L1 Cache 512KB L2+L3 Cache 40MB Default TDP 105W Unlocked for Overclocking Yes CPU Socket AM5 Thermal Solution (PIB) Not included Max. Operating Temperature 95°C PCI Express Version PCIe 5.0 System Memory Type DDR5 Memory Channels 2 Intergrated Graphic AMD Radeon Graphics Graphics Core Count 2 OS Support Windows 11/10 – 64-Bit Edition

MSI PRO B650-P WiFi ProSeries Motherboard Specification

CPU Socket Type AM5 CPU Type Supports AMD Ryzen 7000 Series Desktop Processor Maximum Memory Supported 128GB Channel Supported Dual Channel ECC Supported Non-ECC Buffer Supported Un-buffered PCI Express 4.0 x16 4x PCIe x16 slots SATA 6Gb/s Slot 6 M.2 Slot 2x M.2 slots (Key M, Supports up to PCIe 4.0 x4) Audio Chipset Realtek ALC897/ 7.1 Channels LAN Chipset 1x Realtek 8125BG 2.5Gbps LAN controller Max LAN Speed 2.5Gbps Wireless LAN AMD Wi-Fi RZ616 Bluetooth Supports Bluetooth 5.2*, FIPS, FISMA Form Factor ATX Operating System Support for Windows 11/10 64-bit

Supports AMD Ryzen 7000 processors

The PRO B650-P WIFI motherboard supports AMD Ryzen 7000 processors.

Form factor: ATXBase type: AM5Chipset: AMD B650

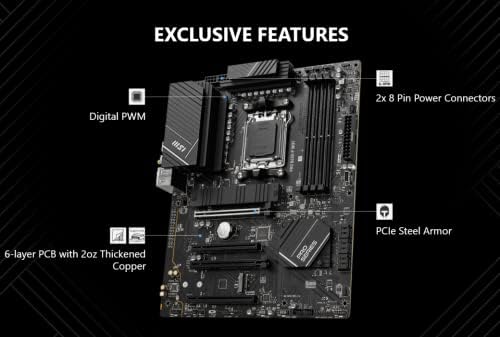

12 phase VRM with 75A Smart Power Stage

With its two 8-pin power ports and exclusive Core Boost technology, the PRO B650-P WIFI is able to deliver high CPU power (up to 170W) to support demanding game settings:

Digital PWM IC12-phase duet-rail CPU power (75A)2-phase SOC power supply1-phase MISC power supply

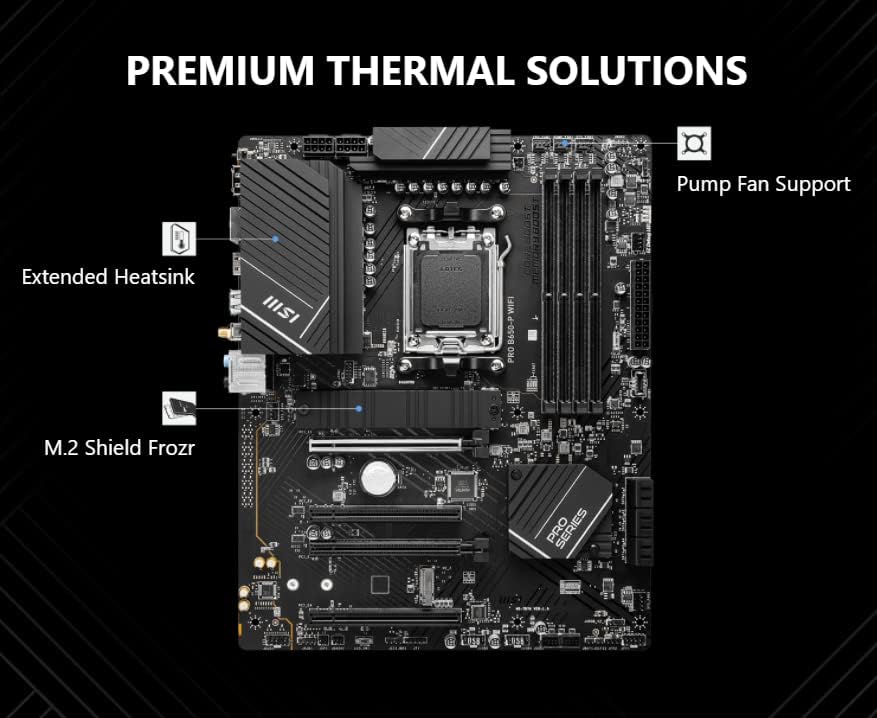

Integrated cooling functions

VRM Cooling: Features an extended heat sink and 7W/mK thermal pads.

PCB Cooling: High quality 6 layer PCB design with 2 oz. Thickened copper improves heat dissipation and reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System cooling: Connect and sync cooling with strategically placed pin headers – including a special pump fan header.

Gen4 M.2 connectors

The PRO B650-P WIFI motherboard has the latest M.2 slots from MSI:

2 x Gen4 x4 64Gb/s slots

Reinforced PCI-e 4.0 x16 slots

The MSI PCI Express Steel Armor slots are attached to the motherboard with additional soldering points to support the weight of heavy graphics cards. When every advantage in the game counts, Steel Armor also shields the contact point from electromagnetic interference:

2 x PCI-e 4.0/3.0 x16 slots* (primarily with steel armor)

*Supports x16/x4

M.2 Shield Frozr

Even the fastest SSDs in the world automatically slow down as the firmware detects excessively high temperatures and throttles performance.

M.2 Shield Frozr is MSI most advanced thermal solution providing the best possible protection to ensure maximum SSD transfer speed.

4 x DDR5 dual channel (6400+ MHz OC)

Memory Boost: A fully insulated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

The memory OC profiles in MSI BIOS are MSI OC LAB tested and can be easily activated with the automatic power settings for optimised storage speed and stability.

*1DPC 1R Max. Overclocking frequency 6400MHz, supports AMD EXPO.

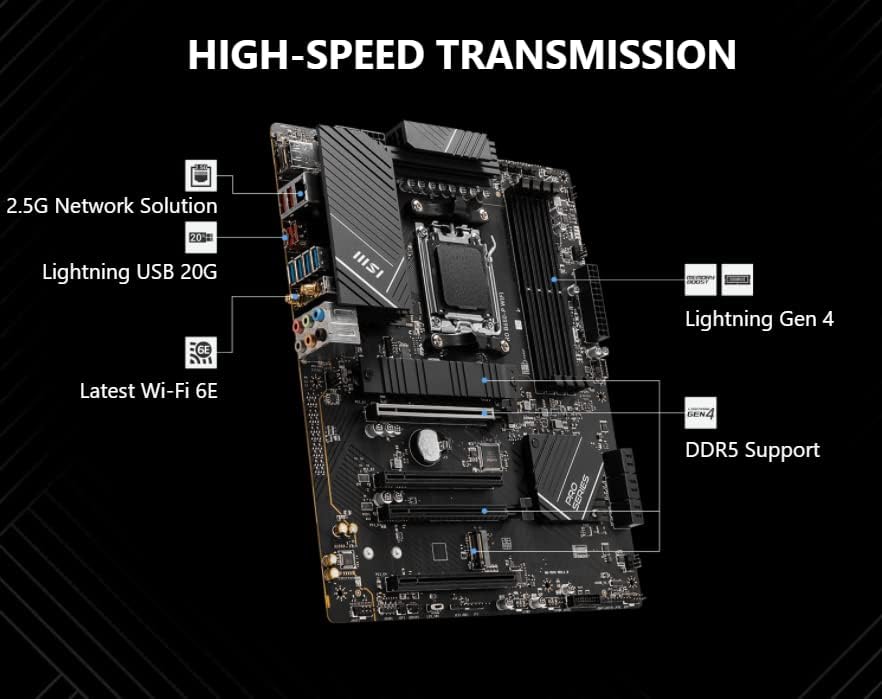

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: A Realtek 2.5Gbps LAN controller ensures a first-class network gaming experience.

Wi-Fi 6E: With an AMD Wi-Fi 6E module (extremely low latency, high bandwidth) and Bluetooth 5.2 technology.

USB 3.2 Generation 2×2 Type-C: Connect to devices and transfer high-bandwidth files: 20Gb/s.

HD Audio: 7.1 channel high definition audio with audio boost.

AMD Ryzen 7 7700X Desktop Processor, 8-Core, 16-Thread, 5.4 GHz Max Boost, unlocked for overclocking, 40 MB cache, DDR5-5200 support, default TDP 105W. This dominant gaming processor can deliver fast 100+ FPS performance in the world’s most popular games
For the state-of-the-art Socket AM5 platform, can support PCIe 5.0 on select 600 Series motherboards. OS Support: Windows 11/ 10-64-Bit Edition. Cooler & Thermal Solution (PIB) not included
MSI PRO B650-P WiFi ProSeries Motherboard, ATX Form Factor, AM5 Socket. Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC), Maximum Memory Capacity 128GB, 2 x M.2 PCIe 4.0 x4 slots, 6 x SATA 6Gb/s ports, USB 3.2 Gen 2×2, Wi-Fi 6E, 2.5G LAN. Supports AMD Ryzen 7000 Series Desktop Processors
Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost./ Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
High Quality PCB: 6-layer PCB made by 2oz thickened copper./ 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection./ AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience. Support for Windows 11 64-bit, Windows 10 64-bit
