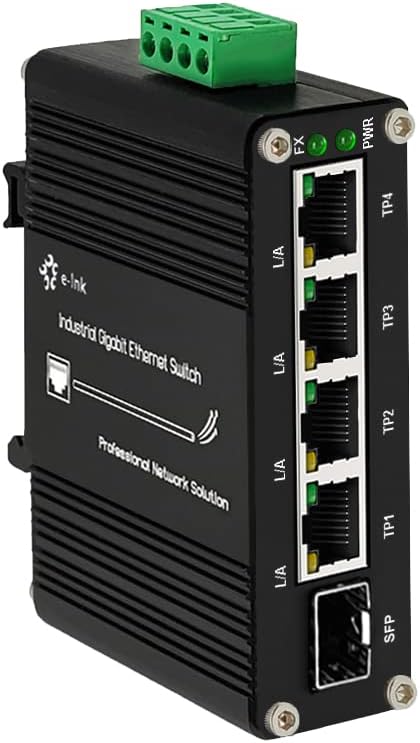

Mini Industrial 4 Port 10/100/1000Mbps Gigabit Ethernet Switch with SFP Din Rail/Wall-Mount 10/100/1000BASE-T RJ45 + 1 100/1000FX (SFP) Support 12-48V DC 10Gbps Switching Capacity

Price: $55.90
(as of Aug 13, 2024 10:02:21 UTC – Details)

Product Description

Industrial Full Gigabit 4 Ports Switch with SFP 12~48V DC

Regarding the choice of power supply: (Power Supply not Included)

Power supply of 12V/0.5A and above can be selected within the input voltage range of 12~48V. However, for the stability of the work, 12V/1A power supply and above are recommended. Of course, we also have a listing of power supply , you can order directly.

Dual Redundant Power Input 12-48V DC

Din Rail Switch support 12~48V DC redundant power input and boost to 48V output. It will solve the problem that you only have 12V or 24V centralized power supply or solar power supply.

Excellent Gigabit Ethernet Switch

Casing Material: Aluminum CaseInput Power: 12~48V DC (Terminal Block)Packet Buffer Memory: 1MbitsMax Packet Length: 9K BytesSwitch Capacity: 10Gbps/non-blockingTransmission Distance: up to 20KMPower Consumption: < 5WDimensions (WxDxH): 90 x 70x 29mm(3.74 x 2.76 x 1.15in)Weight: 250g(0.55lb)

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.3 out of 5 stars
48

4.3 out of 5 stars
48

4.3 out of 5 stars
48

4.4 out of 5 stars
46

4.4 out of 5 stars
46

4.4 out of 5 stars
46

Price

$39.90$39.90 $93.00$93.00 $89.00$89.00
— $160.00$160.00
—
Ethernet Port
5*10/100/1000Base-T RJ45 4*Port 10/100/1000Base-T 802.3af/at PoE + 1*Port 10/100/1000Base-T 4*10/100/1000Base-TX 802.3af/at PoE + 1*1000Base-FX 10*10/100/1000Base-T RJ45 8*10/100/1000Base-TX + 2*1000Base-FX 8*10/100/1000Base-TX 802.3af/at PoE + 2*1000Base-FX
Uplink Port
All 5 RJ45 Ports can be used as Uplink interfaces All 5 RJ45 Ports can be used as Uplink interfaces / All 10 RJ45 Ports can be used as Uplink interfaces / /
PoE Support
/
✓

✓
/ /
✓

PoE Standard
/ IEEE802.3af(15.4W) IEEE802.3at(30W) IEEE802.3af(15.4W) IEEE802.3at(30W) / / IEEE802.3af(15.4W) IEEE802.3at(30W)
PoE Power Output
/ 120W(30W Per Port) 120W(30W Per Port) / / 240W(30W Per Port)
Power Input
12-48V DC,Redundant Power (4-pin Terminal Block) 12-48V DC,Redundant Power (4-pin Terminal Block) 12-48V DC,Redundant Power (4-pin Terminal Block) 12-48V DC,Redundant Power (4-pin Terminal Block) 12~57V DC, Redundant Power (6-pin Terminal Block) 48~57V DC, Redundant Power (6-pin Terminal Block)
Switch Capacity
10Gbps 10Gbps 10Gbps 20Gbps 20Gbps 20Gbps
Power Comsuption
<6W <125W <132W <10W <5W <253W
Processing Type
Store-and-Forward Store-and-Forward Store-and-ForwardStore-and-Forward Store-and-Forward Store-and-Forward Store-and-Forward
Mount Method
Din-Rail&Wall Mount Din-Rail&Wall Mount Din-Rail&Wall Mount Din-Rail Din-Rail Din-Rail

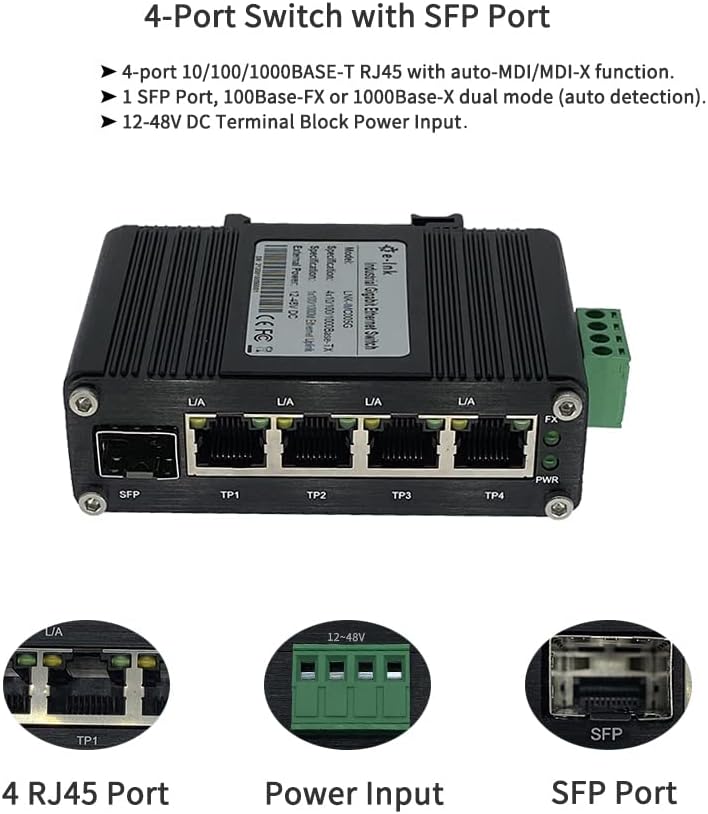

10/100/1000Mbps Ethernet: 4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function. 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection). Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex.
12~48V DC Input: The switch support 12~48V DC Input and boost to 48V output. It will solve the problem that you only have 12V or 24V centralized power supply or solar power supply.
Industrial Grade Quality: Use industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.
Aluminum material: Using Aluminum material with exquisite appearance, good corrosion resistance.
Din-Rail & Wall Mount: The Hardened Ethernet switch come with 35mm Din-rail Clip and Wall mount accessories.
