Mini Industrial 5 Ports Gigabit Ethernet Switch 4×10/100/1000BASE-T 802.3at PoE + 1×10/100/1000T Ethernet Switch Din Rail Mount 12~48V DC

Price: $79.99 - $71.90
(as of Aug 27, 2024 09:02:21 UTC – Details)

Product Description

Package

5-Port Mini Gigabit Industrial Ethernet Switch x 1, Wall-mount Kit x 1, User’s Manual x 1

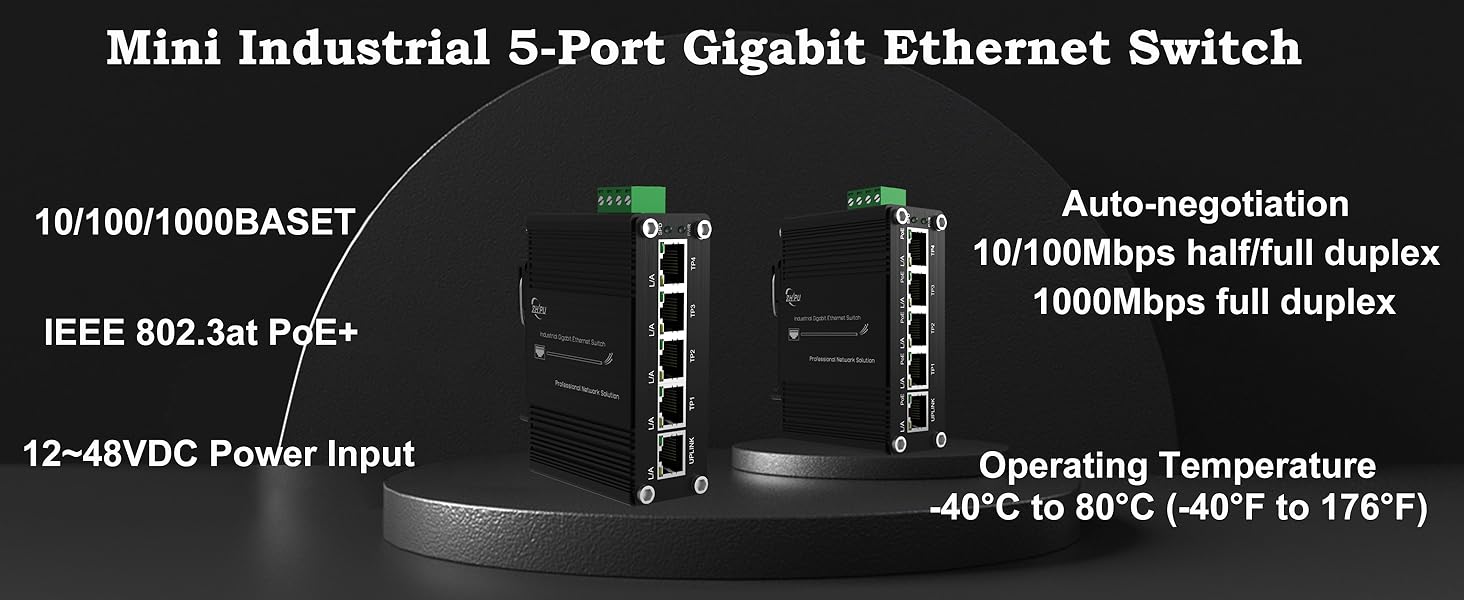

Mini Industrial 5 Ports Gigabit Ethernet Switch

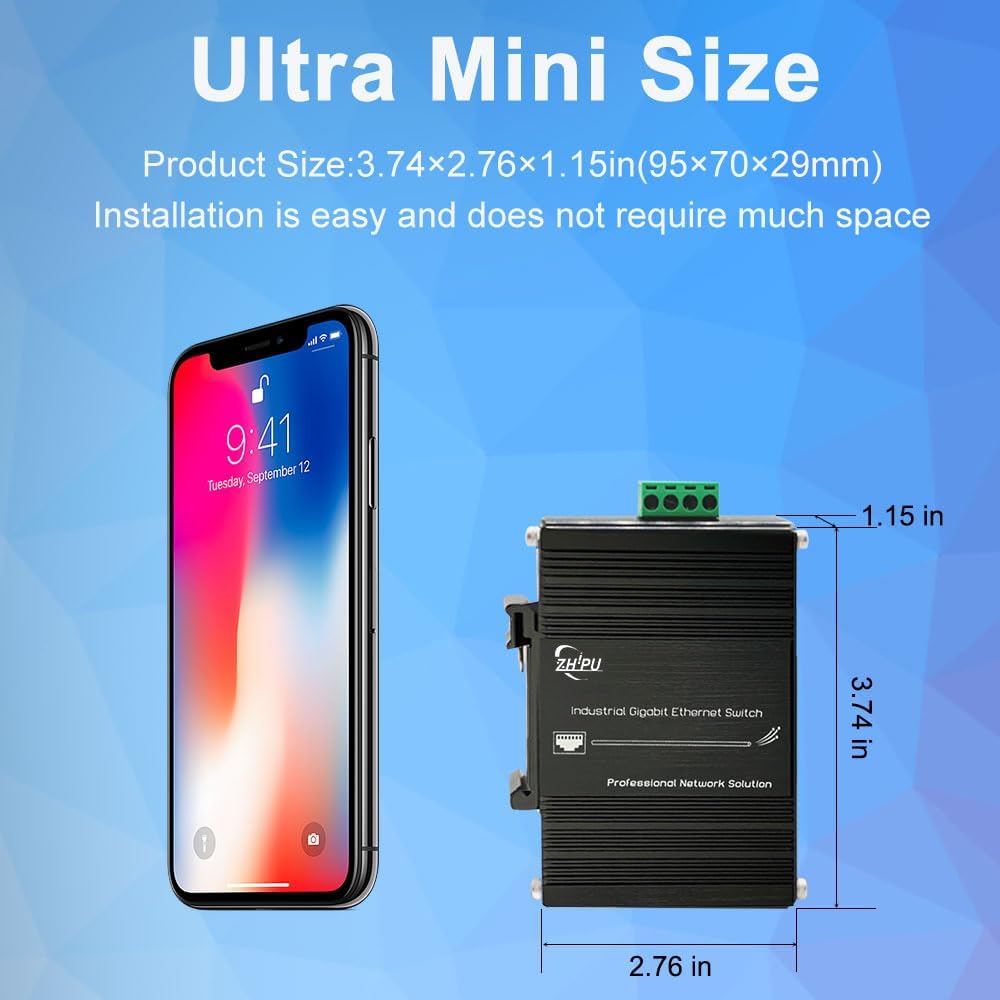

Forward & Filtering Rate 10Mbps/100Mbps/1000Mbps Connector Non-PoE Model: 5 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, PoE Model: 5 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) PoE Standard: IEEE802.3af/at; Power Pin Assignment: 4/5(+), 7/8(-); PoE Budget: Up to 120-watt PoE budget Operating Temperature -40°C to 80°C (-40°F to 176°F) MTBF > 200,000 hrs Input Power 12~48VDC Power Consumption Non-PoE Model: <6W PoE Model: <125W Reverse Polarity Present Power Input Overload Automatic Resettable Dimensions (WxDxH) and Weight 95 x 70 x 29mm; 250g Casing Aluminum Case Mounting Options DIN-Rail

Mini Industrial 5 Ports Gigabit Ethernet Switch

Power Pin Assignment

/

Power Pin Assignment

4/5(+), 7/8(-)

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget

/

PoE Budget

Up to 120W

PoE Budget

Up to 240W

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Input Power

12~48VDC

Input Power

12~48VDC

Input Power

48~57VDC

Power Consumption

<6W

Power Consumption

<125W

Power Consumption

<245W

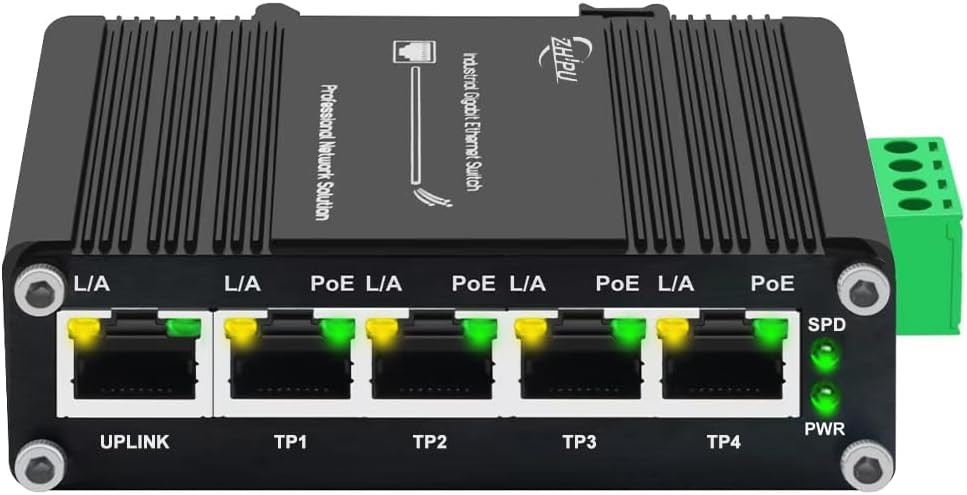

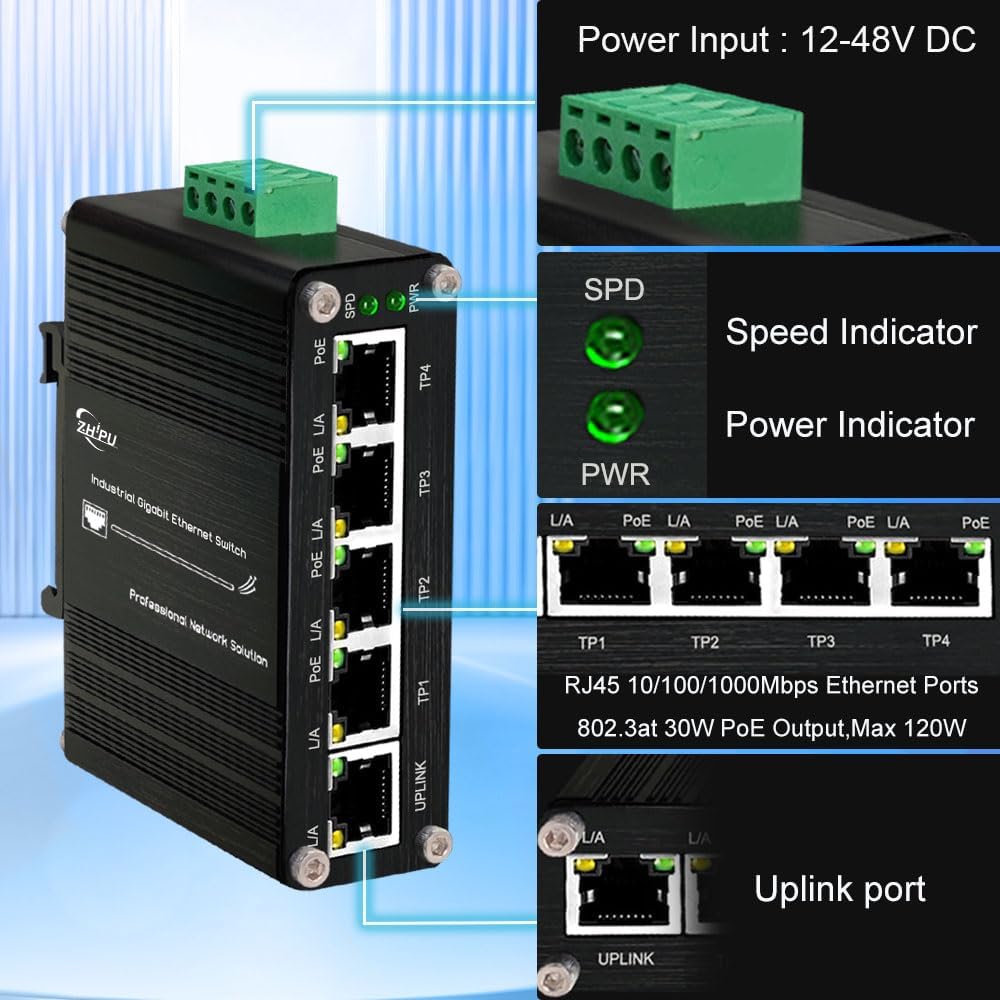

5 ports supporting 𝟏𝟎/𝟏𝟎𝟎/𝟏𝟎𝟎𝟎𝐁𝐀𝐒𝐄𝐓 𝐑𝐉𝟒𝟓 with 𝐈𝐄𝐄𝐄 𝟖𝟎𝟐.𝟑𝐚𝐭 𝐏𝐨𝐄+ Injector (Port-1 to Port-4) for Power over Ethernet functionality
Wide-ranging power input from 𝟏𝟐~𝟒𝟖𝐕𝐃𝐂, providing flexibility in power supply
A substantial PoE budget of up to 𝟏𝟐𝟎 𝐰𝐚𝐭𝐭𝐬 𝐚𝐭 𝟒𝟖𝐕𝐃𝐂, 𝟗𝟎 𝐰𝐚𝐭𝐭𝐬 𝐚𝐭 𝟐𝟒𝐕𝐃𝐂, and 𝟔𝟎 𝐰𝐚𝐭𝐭𝐬 𝐚𝐭 𝟏𝟐𝐕𝐃𝐂, ensuring ample power for connected devices

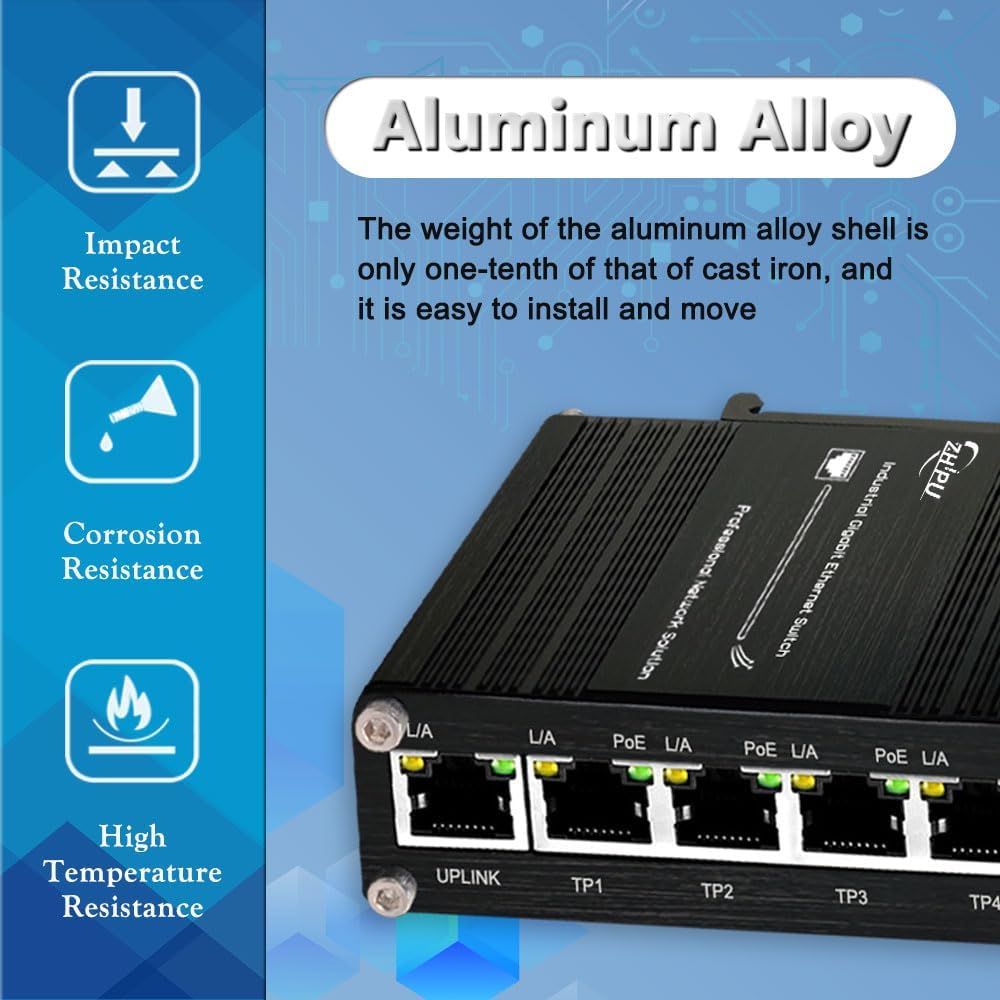

Robust and industry-standard design featuring dustproof and 𝐈𝐏𝟒𝟎-rated close design, housed within a rugged high-strength metal case, and capable of operating in a temperature range of -𝟒𝟎°𝐂 𝐭𝐨 𝟖𝟎°𝐂 (-𝟒𝟎°𝐅 𝐭𝐨 𝟏𝟕𝟔°𝐅)

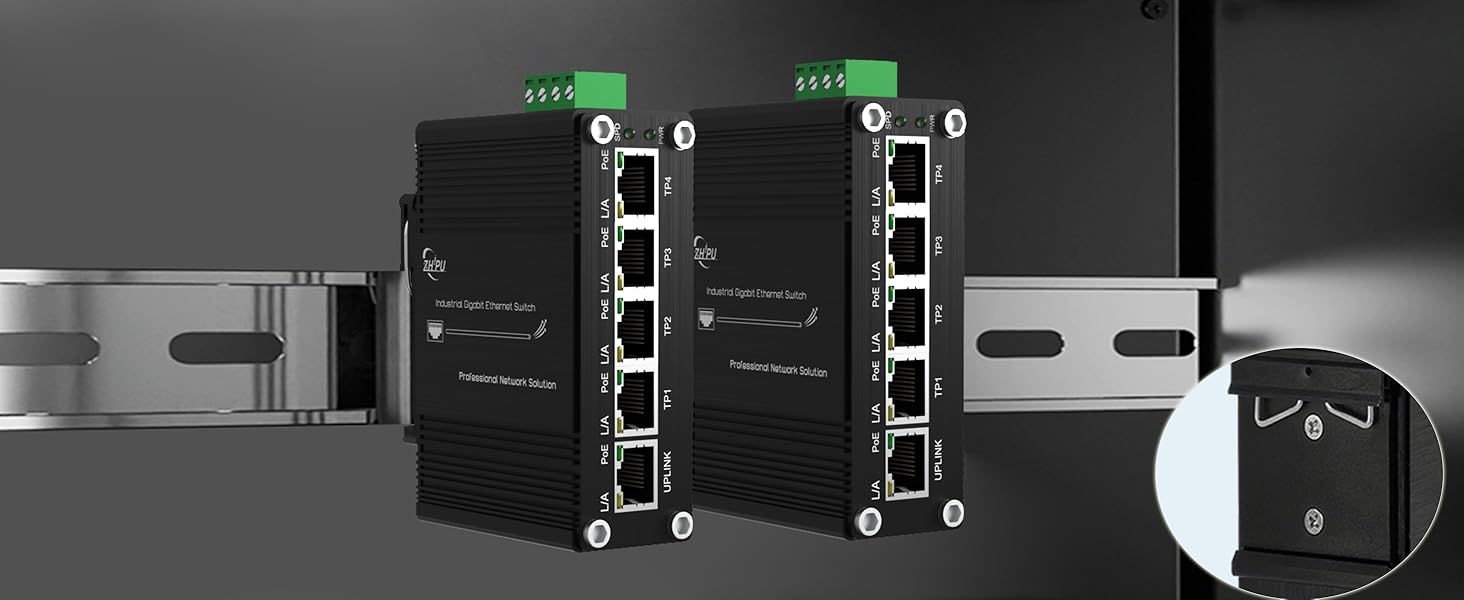

Versatile installation options with support for 𝐃𝐈𝐍-𝐑𝐚𝐢𝐥 𝐚𝐧𝐝 𝐖𝐚𝐥𝐥-𝐦𝐨𝐮𝐧𝐭 installations, enhancing adaptability and deployment choices
