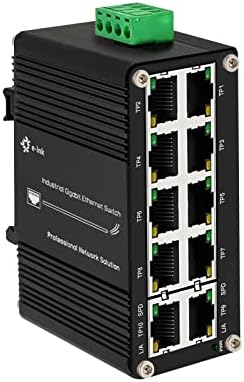

Mini Industrial Switch 10 Ports Gigabit Switch Hardened 10 Port RJ45 10/100/1000Mbps Ethernet Switch Din Rail Mount Outdoor Ethernet Switch, Unmanaged Network Switch (-40 to 176°F) with 12-48V DC

Price: $103.90 - $86.00
(as of Apr 14, 2024 11:48:40 UTC – Details)

Product Description

Industrial Full Gigabit 10 Ports Switch 12~48V DC

Overview:

This Mini Industrial 10 Port 10/100/1000Mbps Gigabit Ethernet Switch supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. This industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch also complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

Regarding the choice of power supply: (Power Supply not Included)

Power supply of 12V/0.5A and above can be selected within the input voltage range of 12~48V. However, for the stability of the work, 12V/1A power supply and above are recommended. Of course, we also have a listing of power supply , you can order directly.

About this item:

Specification:

Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE 802.3x flow controlPacket Buffer Memory: 1MbitMax Packet Length: 9K Bytes.Address Table Size: 4K MAC AddressSwitch Capacity: 20Gbps/non-blockingEthernet Port: RJ45 10/100/1000Mbps EthernetTransmission distance: 100m (328ft)Input Power: 12~48V DCCasing Material: Aluminum CasePower consumption: < 6W

Description: 10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex Industry standard design, dust proof and close design IP40, rugged high-strength metal case

Key Features:

RJ45 – 10/100/1000Mbps Adapative

10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function.Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex.

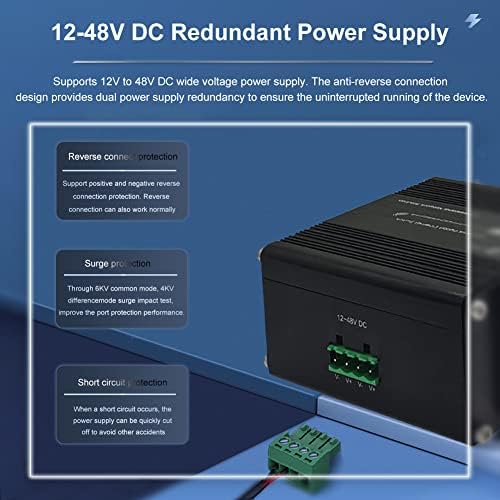

12-48V DC Redundant Power Supply

Adaptive Power Input: 12-48V DC.Support Redundant power input.Support hot plug and hot swap.

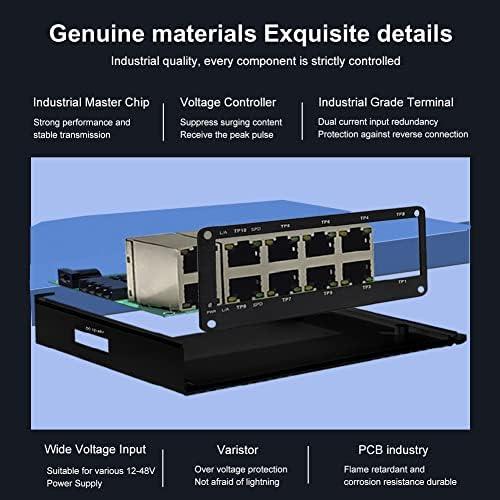

Industrial Grade Quality with Silent Operation

Using Aluminum material with good corrosion resistance.Industrial IP40 protection grade, fanless design, silent operation of the equipment.

Compact Size, Easy to Installation

Dimension: Mini Size (WxDxH): 3.74×2.76×2.3in (95 x 70 x 58 mm).Supports DIN-Rail & Wall-mount installation.

Widely Application:

Application 1

It has IP40 protection grade protection and supports rail-type installation, which can meet the needs of strong interference and installation in the power field.

Application 2

Using industrial grade components, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). Adapt to strong interference and high temperature requirements.

Application 3

Using Aluminum Housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). Adapt to strong interference and high temperature requirements.

Other Application

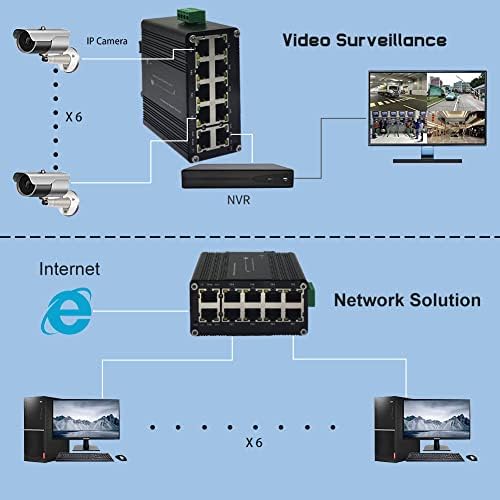

This Switch has stable transmission and strong recognition ability so it is widely apply in the company’s daily office, security monitoring, smart city, video conference etc.

Features:

10/100/1000Mbps Ethernet – The Industrial 10 ports Ethernet Switch have 10 RJ45 ports 10/100/1000Mbps half/full duplex.

12~48V DC Input: The switch support 12~48V DC Input and boost to 48V output. It will solve the problem that you only have 12V or 24V centralized power supply or solar power supply. And also support Redundant power.

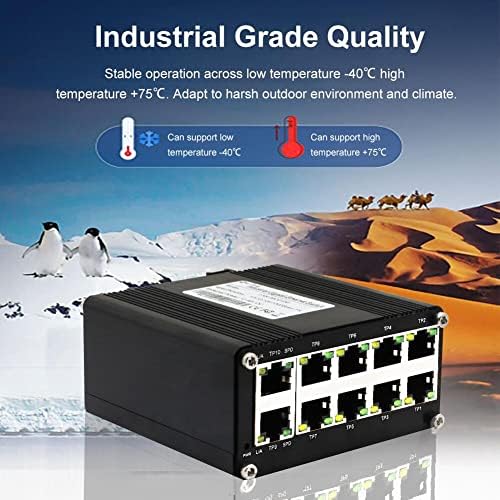

Industrial Grade Quality – The Hardened Mini Gigabit Switch use industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.3 out of 5 stars
40

4.3 out of 5 stars
40

4.3 out of 5 stars
40

4.3 out of 5 stars
40

4.4 out of 5 stars
44

4.4 out of 5 stars
44

Price

$39.90$39.90

$93.00$93.00

$55.90$55.90

$89.00$89.00

$177.00$177.00

$209.00$209.00

Ethernet Port
5*10/100/1000Base-T RJ45 4*Port 10/100/1000Base-T 802.3af/at PoE + 1*Port 10/100/1000Base-T 4*10/100/1000Base-TX + 1*1000Base-FX 4*10/100/1000Base-TX 802.3af/at PoE + 1*1000Base-FX 8*10/100/1000Base-TX + 2*1000Base-FX 8*10/100/1000Base-TX 802.3af/at PoE + 2*1000Base-FX
Uplink Port
All 5 RJ45 Ports can be used as Uplink interfaces All 5 RJ45 Ports can be used as Uplink interfaces / / / /
PoE Support
No Yes No Yes No Yes
PoE Standard
/ IEEE802.3af(15.4W) IEEE802.3at(30W) / IEEE802.3af(15.4W) IEEE802.3at(30W) / IEEE802.3af(15.4W) IEEE802.3at(30W)
PoE Power Output
/ 120W(30W Per Port) / 120W(30W Per Port) / 240W(30W Per Port)
Power Input
12-48V DC,Redundant Power (4-pin Terminal Block) 12-48V DC,Redundant Power (4-pin Terminal Block) 12-48V DC,Redundant Power (4-pin Terminal Block) 12-48V DC,Redundant Power (4-pin Terminal Block) 12~57V DC, Redundant Power (6-pin Terminal Block) 48~57V DC, Redundant Power (6-pin Terminal Block)
Switch Capacity
10Gbps 10Gbps 10Gbps 10Gbps 20Gbps 20Gbps
Power Comsuption
<6W <125W <5W <132W <5W <253W
Processing Type
Store-and-Forward Store-and-Forward Store-and-Forward Store-and-Forward Store-and-Forward Store-and-Forward
Mount Method
Din-Rail&Wall Mount Din-Rail&Wall Mount Din-Rail&Wall Mount Din-Rail&Wall Mount Din-Rail Din-Rail

10/100/1000Mbps Ethernet – The Industrial 10 ports Ethernet Switch have 10 RJ45 ports 10/100/1000Mbps half/full duplex.
12~48V DC Input: The switch support 12~48V DC Input and boost to 48V output. It will solve the problem that you only have 12V or 24V centralized power supply or solar power supply. And also support Redundant power.
Compact Size, Easy to installation – The 10 ports Ethernet Switch size is 3.74×2.76×2.3in, it only need small space to install.
Industrial Grade Quality – The Hardened Mini Gigabit Switch use industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.

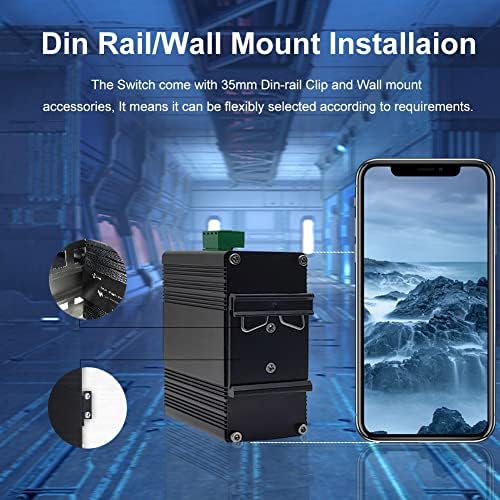

Din-Rail Mount –The Din Rail Mount Ethernet Switch come with Din-rail Clip and support 35mm Din-Rail Mount.
