MokerLink 5 Port PoE+ Industrial Din Rail Switch, 4 Ports PoE+ IEEE802.3af/at, 1 Uplink, 10/100Mbps Fast Ethernet, DIN-Rail & Wall Mount Included

Price: $39.99
(as of Sep 09, 2024 21:02:13 UTC – Details)

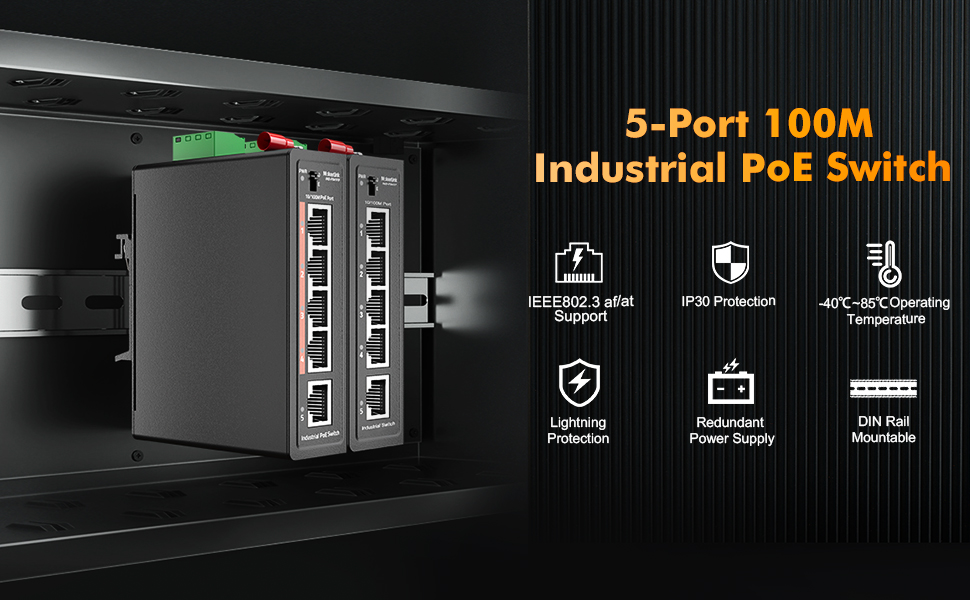

Product Description

Key Features:

MokerLink 5 port 100Mbps industrial ethernet PoE switch, support 4*10/100M PoE ports and 1* 10/100M ethernet port, support DIN-Rail & Wall mounts installation. support power supply input (DC48-55V)，working temperature -40℃~ +75℃，It has passed the industrial environment certification. The reliable industrial design can ensure that your automation system runs without interruption and stability.

This series of industrial POE switches can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a green low power industrial Ethernet switch.

Support 4*10/100M POE ports and 1*10/100M Ethernet portSupport IEEE 802.3, IEEE 802.3u, IEEE802.3x StandardEthernet port supports 10/100M self-adaptationCompatible with both IEEE802.3at（30W）and IEEE802.3af（15.4w）Industrial grade protect design, -40 to 75°C working temperatureHigh strength iron shell, DIN35 Rail installationSupport redundant power supply, support anti reverse.Support port Surge Protection: Common mode 6KV, Differential mode 2KV; ESD 15KV, Contact 8KV

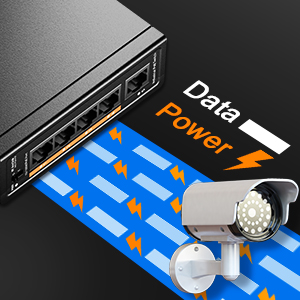

Auto Detects Power Devices

Compatible with IEEE802.3af/at protocol, Industrial PoE switch determines and delivers the exact power supply to your devices with up to 30W power output for per poe port.

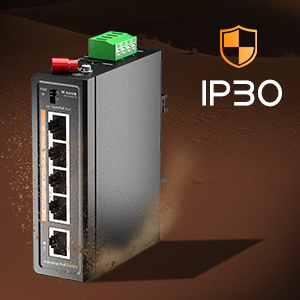

IP30 Protection

5-Port unmanaged industrial poe switch adopt with high strength IP30 protective housing, industrial EMC design to increase the reliability of communication network.

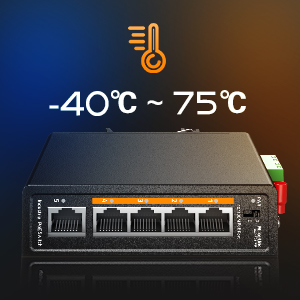

Wide Temperature Operation

MokerLink industrial poe switches are designed with wide temperature support to ensure operation reliability in extreme temperatures ranging from -40ºC to +75ºC.

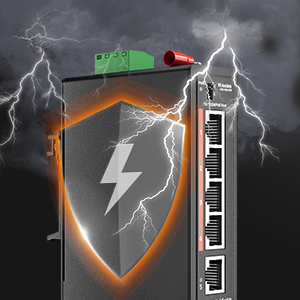

Lightning Protection

The industrial poe switch’s 4KV surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.

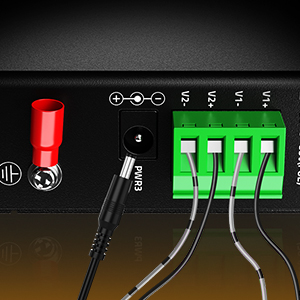

Redundant Power Supply

This industrial poe switch support triple redundant power supply(1*DC input +2*2 pin terminal input). Each of the power supplies will have the capacity to run the device on its own. This makes sure that the switch could operate normally even if one power supply fails.

DIN-Rail & Wall Mountable

Ultra compact industrial poe switche can be mounted on a 35mm din rail and wall(wall mount kit included). Save time and space.

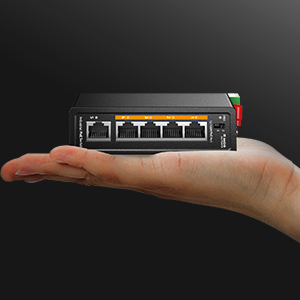

Compact Size

MokerLink industrial poe switches are housed in a compact sturdy metal case. the size is 100*76.5*30mm. you can mount it on the wall or cabinet.

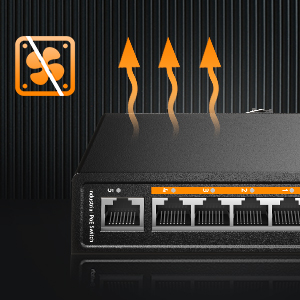

Metal Case & Fanless

The industrial poe switch features with aluminum case and fanless design that ensures noiseless operation and greater reliability over time.

Industrial-grade Electronic Components

The industrial poe switch adopt with high quality of electronic components. Make sure it can be widely used in various industrial scenarios.

Product Specifications

Product Name 5-port 10/100Mbps industrial PoE switch Product Model IND-F041FP Ethernet 4* 10/100Mbps PoE+ ports + 1* 10/100Mbps RJ45 port Bandwidth 1.0Gbps Packet Forwarding 0.744 Mpps Packet Cache 448K PoE Protocol IEEE802.3af （15.4W） IEEE802.3at （30W） Network Protocol IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control) Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) Network Medium 10Base-T : Cat 3, 4, 5 or above UTP/STP(≤100m) 100Base-TX : Cat 5 or above UTP/STP(≤100m) Working Environmen Working Temperature: -40~75°C Storage Temperature: -40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height: Maximum10,000 feet Storage Height: Maximum 10,000 feet LED Indicator PWR (Power Indicate)，1-5 Green Light（Link & Data） PWR: On: Power on Off: Power off 1-5 Green Light (Link & Data): On: Link Connected Flashing: Data Transmit Off: Link Disconnect Product Dimension 100*76.5*30mm Product Weight 0.29 KG Power Voltage Input Voltage : DC 48-55 V Type of input: 4 PIN Industrial Terminal (block V1+V1- V2+ V2-); DC-IN (2.1mm) Packaging List Industrial PoE Switch: 1 PC, User Manual: 1PC, Pull-arm : 1 PC

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.3 out of 5 stars
72

4.3 out of 5 stars
72

4.3 out of 5 stars
72

4.3 out of 5 stars
72

4.1 out of 5 stars
29

4.1 out of 5 stars
29

Price

$43.99$43.99 $69.99$69.99 $74.99$74.99 $95.99$95.99 $29.99$29.99 $39.99$39.99
Ethernet Port
4xGigabit RJ45 Ports+1xGigabit UpLink Port 4xGigabit PoE Ports+1xGigabit UpLink Port 8xGigabit RJ45 Ports 8x100Mbps PoE Ports+2xGigabit UpLink Ports 4x100Mbps RJ45 Ports+1x100Mbps UpLink Port 4x100Mbps PoE+ Ports+1x100Mbps UpLink Port
Support PoE
No Yes No Yes No Yes
PoE Protocol
/ IEEE 802.3af/at / IEEE 802.3af/at / IEEE 802.3af/at
Power Output
24W 60W 24W 96W not included not included
Switch Capacity
14Gbps 14Gbps 16Gbps 16Gbps 1.0Gbps 1.0Gbps
Mount Method
DIN-Rail DIN-Rail DIN-Rail DIN-Rail DIN-Rail & Wall DIN-Rail & Wall
Dimensions (L x W x H)
118*86*39mm 118*86*39mm 143* 101*44mm 143* 101*44mm 100*76.5*30mm 100*76.5*30mm
Weight
0.36kg 0.36kg 0.64kg 0.64kg 0.27kg 0.29kg

This network switch include 4 port PoE ports, 1 port uplink, support 10/100Mbps adaptive, compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3x ethernet standards
The poe port 1-4 support IEEE802.3af/at standard, max 30W per port, can connect multiple poe devices, such as POE camera, poe ap, etc. Please note that passive 24v poe is not supported. His POE input DC voltage is 48-55V, so please use a input voltage above 48V to provide POE, if it is 12V, it cannot provide POE
The shell is made of industrial-grade aluminum alloy, which is more sturdy, compact design and small size, integrated DIN-rail and wall mount kit, installation and disassembly are very simple
IP30 protection grade, working temperature -40~75°C(-40~185°F), super robustness, anti-lightning, anti-static and anti-overload protection, adapt to various harsh environments
1 DC Power and 2 Industrial power(4 pin terminal), total of 3-way power supply is more flexible. Automatic fault switching, anti-reverse connection does not damage the equipment, higher reliability. ***Please note that the power adapter is not included***
Support auto-negotiation, plug and play, no configuration needed, low-power consumption CPU, no fan quiet operation, green energy saving, suitable for various networks, such as home office, computer room, warehouse, factory, compact control box and other industrial scenarios with ethernet access
