MokerLink 8 Port 10Gbps SFP+ Managed Switch, Support 1G SFP and 10G SFP+, 160Gbps Bandwidth Web Managed Network Switch

Price: $129.99
(as of Aug 17, 2024 21:02:20 UTC – Details)

Product Description

Key Features:

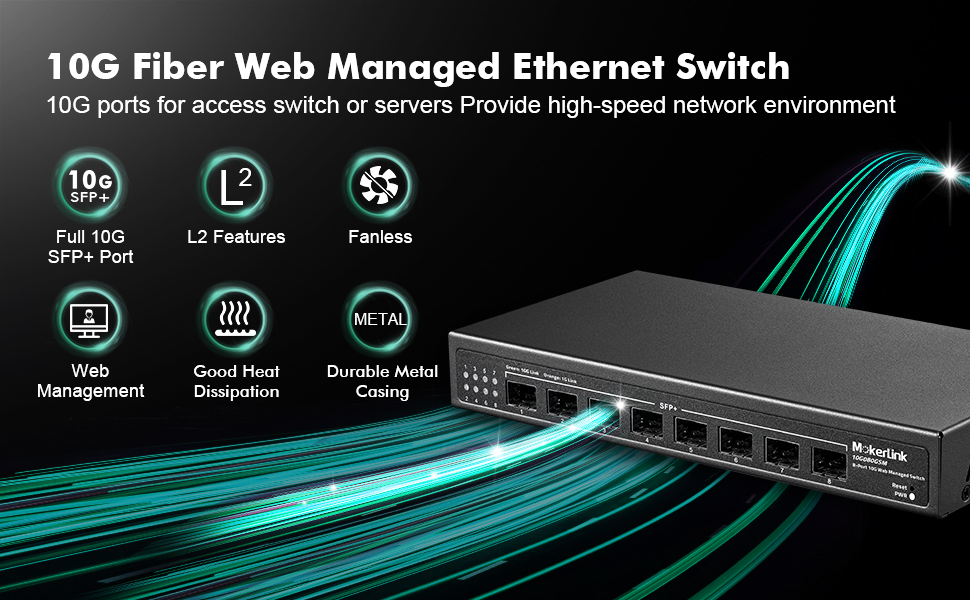

MokerLink 8 port 10G web managed switch upgrading networks by providing a more reliable, stable, seamless network and easily multiplying the network speed by 10 times. It provides 8* 1G/10Gbps SFP+ ports with line speed forwarding capability per port. This series of switches provide advanced network management functions: VLAN, QoS, speed control, port image, fault alarm and firmware online upgrade.

8*10 Gigabit SFP + optical ports are provided to realize line speed forwarding.Each port supports MDI/MDIX automatic flip and duplex / rate self negotiation.10000Mbase-t(x) automatic detection, full / half duplex MDI / mdi-x adaptive.Panel indicator lights monitor working status and help failure analysis.Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard.Support VLAN, QoS data priority.Support cable detection, loop protection

With 10 Gigabit speed, the 10G080GSM brings high-flexibility and high-bandwidth connectivity to WIFI6 AP, router, servers, workstations and other attached devices. It enables you to save time when transferring large files. 12K jumbo frames are also supported to improve network utilization in large files transfer.

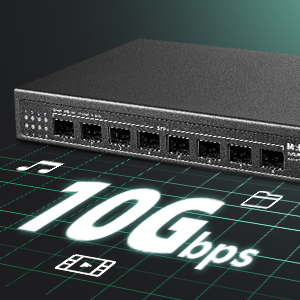

Full 10G Port

The 10G080GSM features non-blocking wire-speed architecture with 160Gbps switching capacity for maximum data throughput. It supports IEEE 802.3x flow control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. An 16K MAC address table provides scalability for even the largest networks.

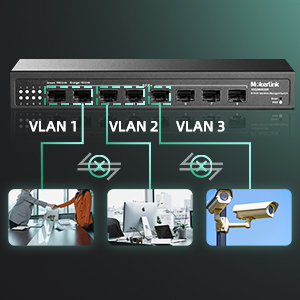

VLAN Support

This 10G web managed switch support IEEE802.1Q VLAN function, By segregating your networks without buying separate equipment for each, you can create virtual boundaries around business units to slow down or stop attacks for higher security.

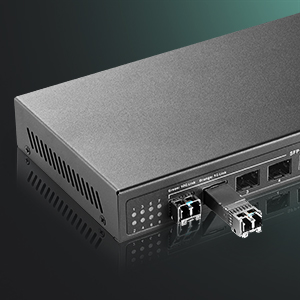

Open SFP Slot

This 10G fiber optic switch is equipped with 8 open SFP Port, lets you customize your connection mode or distance using most MSA-Compliant transceivers.

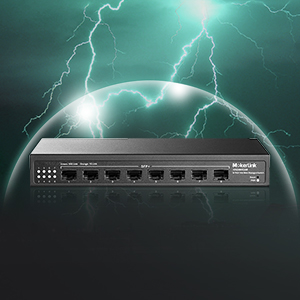

Lighting Protection

The 8 port 10g switch fetures with 3KV surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.

Fanless Quiet Design

Fanless design improve energy efficiency and lower financial cost. Passive cooling achieves high levels of natural convection and heat dissipation by utilizing a heat spreader or a heat sink to maximize the radiation and convection heat transfer modes, It is a solution for switches to maintain optimal operating temperatures without causing much noise.

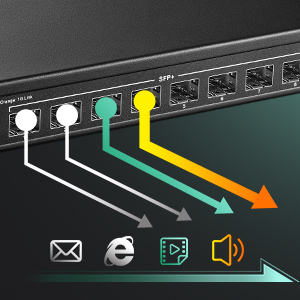

QoS Support

Advanced QoS prioritize critical business traffic such as video conferencing, offering a lag-free network experience that helps the long-term customer and employee relationships.

Product Specifications

Model 10G080GSM Product Name 8 port 10G Fiber ethernet switch Ethernet port 8*1G/10Gbps SFP+ port Switching Capacity 160Gbps Throughput 119.04Mpps Packet Buffer 12MB MAC Address 16K Jumbo Frame 9216bytes Network protocol IEEE802.3 IEEE 802.3z IEEE 802.3ae Working Environment Working Temperature: -10~55°C; Working Humidity: 5%~90%，non-condensing SFP Support Type Multimode dual fiber Single mode single fiber SFP to RJ45 power module Support CPRI mode optical port interconnection Product Dimension (L*W*H) 223mm*103mm*28mm Product Weight 0.71kg Power Input External power supply AC: 100～240V 50-60Hz 0.3A Software Function redundant ring network, VLAN, QoS, speed control, port image, fault alarm and firmware online upgrade.

Add to Cart

Customer Reviews

4.4 out of 5 stars
600

4.4 out of 5 stars
600

2.9 out of 5 stars
4

3.3 out of 5 stars
17

3.0 out of 5 stars
19

Price

—
—
— $129.99$129.99
—
Ethernet
8*10/100/1G/2.5Gbps RJ45 Ports 5*10/100/1G/2.5Gbps RJ45 Ports 4*10/100/1G/2.5Gbps PoE Ports + 5*10/100/1G/2.5Gbps UpLink Port 8*1G/2.5G/10Gbps SFP+ Ports 8*1G/2.5G/10Gbps SFP+ Ports
Managed Support
No No No Yes No
PoE Support
No No Yes No No
Switching Capacity
80Gbps 80Gbps 80Gbps 160Gbps 160Gbps
Jumbo Frame Support

✓

✓

✓

✓

✓

Size
223*103*28mm 160*115*33mm 160*115*33mm 223*103*28mm 223*103*28mm
Weight
0.7kg 0.6kg 0.71kg 0.71kg 0.71kg
Extend Function
Full 2.5G RJ45 Port Full 2.5G RJ45 Port Port 1 support IEEE802.3bt(PoE++) L2 Software Function Full 10G SFP+ Port

10 Gigabit SFP+: 8 x 10Gbps SFP+ ports, enable high-bandwidth connected, auto-adaptive 1G/2.5G/10G optical fiber module, wider rate range.
Web Managed: Powerful management functions, device/port status query and various configurations: such as VLAN, QoS, security, multicast, MAC address table, diagnosis, etc.
160Gbps Bandwidth: switching capacity is 160Gbps, all ports can achieve non-blocking 10G line speed forwarding
Open SFP: Support standard SFP interface optical module, no encryption, such as multi mode, single mode, SFP to RJ45 Modules.***No include SFP module*****
Widely Used: Metal case, LED indicators, fanless design, quiet and stable operation, suitable for high-speed and long-distance fiber transmission.
