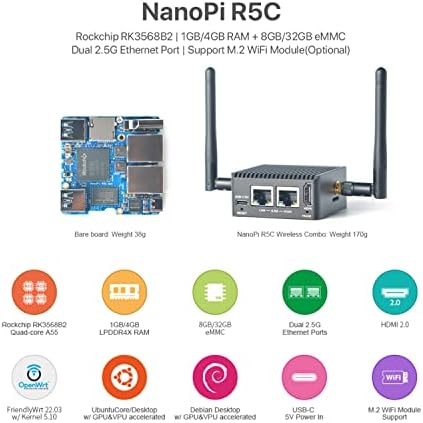

Nanopi R5C Mini WiFi Router OpenWRT with Dual PCIe 2.5Gbps Ethernet M.2 Key E USB Ports 2GB LPDDR4X RAM 32GB eMMC Based in Rockchip RK3568B2 Soc 0.8T NPU for IOT NAS Smart Home Gateway Support Ubuntu

Price: $69.99
(as of Apr 06, 2024 20:13:38 UTC – Details)

From the brand

Carry out your ideas with us!

WayPonDEV team is able to help you to carry out your ideas since we could povide the most complete OEM/ODM service

WayPonDEV team has been dedicated to doing R&D in embeded systems for more than 10 years. Whether you want to customize hardware/software or want to design a computer from scratch, we can proceed it for you.

Our ever-growing product catalog boasts over 2000 components and widgets from IOT sensors, lidars, realsense depth cameras,single board computers, robotic platform, communication modules.

X1 x86 Single Board Computer

X1 x86 SBC can be integrated into various applications such as industrial automation, IoT gateways, robots, and others.

Single Board Computer/Mini PC

Who we are

Having been doing R&D in embedded systems and electronic hardware for more than 10 years. WayPonDEV Team is an experienced robotics and open-source IOT hardware provider and designer, catering to hardware engineers, DIY enthusiasts and interactive designers.

What we have

OEM/ODM Available for Smart Hardware and Accessories

Experienced in International Trading

Global Warehouse cover American,European and Asian region

What we do

Carry out your ideas!

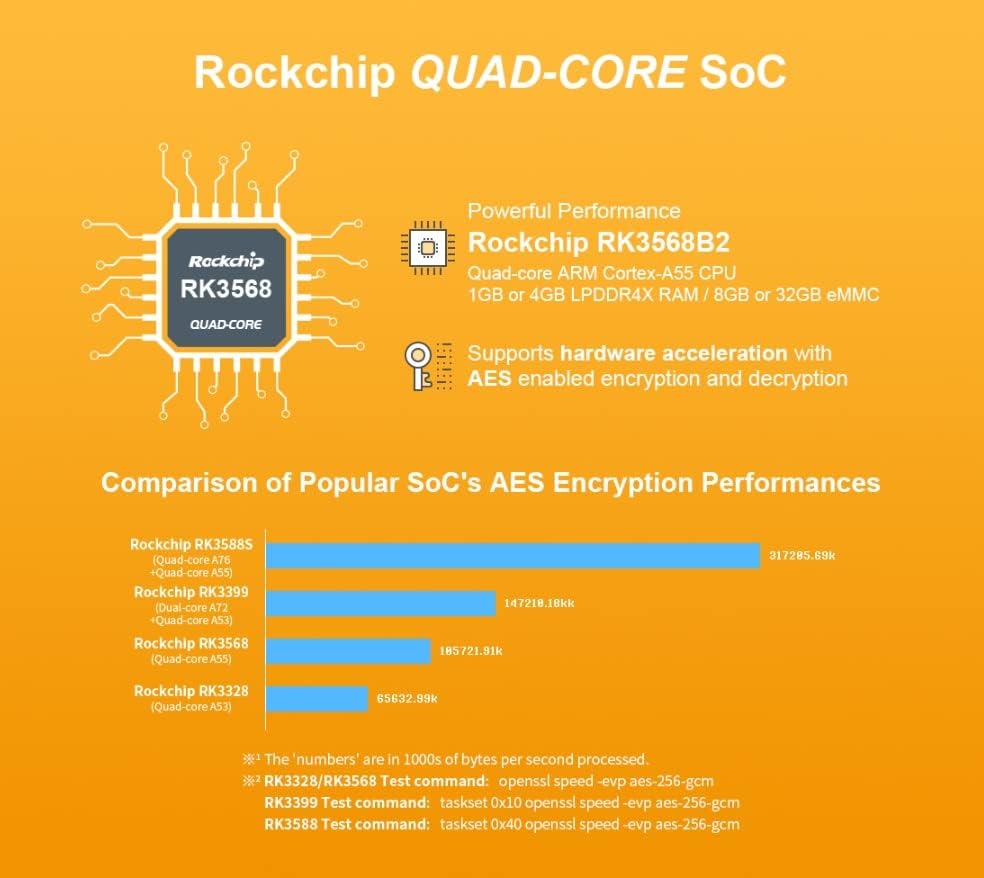

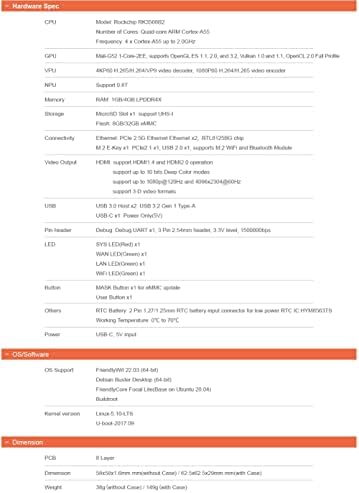

[WIRELESS MOBILE MINI TRAVEL ROUTER] Nanopi R5C Mini Wifi Router Adopt Rockchip RK3568B2 Soc, with 2GB LPDDR4x RAM and 32GB eMMC; CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz; GPU: Mali-G52 1-Core-2EE, supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile; NPU: Support 0.8T.
[OPEN SOURCE and Programmable] It can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more. It can also be used as a command line mode for geeks

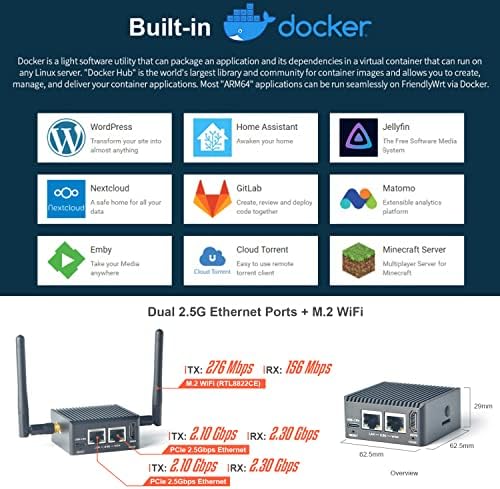

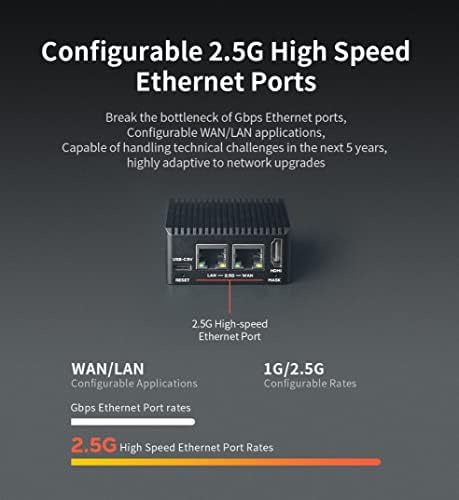

[Dual PCIe 2.5G GBPS ETHERNET PORTS] The NanoPi R5C Mini Router has dual PCIe 2.5Gbps Ethernet ports; M.2 WiFi(RTL8822CE) support 802.11 a/b/g/n/ac protocol,TX rate is 276Mbps,RX rate is 156Mbps.
[LARGER EXTENSIBILITY & Interface] NanoPi R5C Router supports M.2 WiFi and Bluetooth Module, with M.2 Key E: PCIe2.1 x1, USB 2.0 x1 Ports；microSD: support UHS-I; USB: two USB 3.2 Gen 1 Type-A ports; Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level ;1 x HDMI output interface; LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, WL)

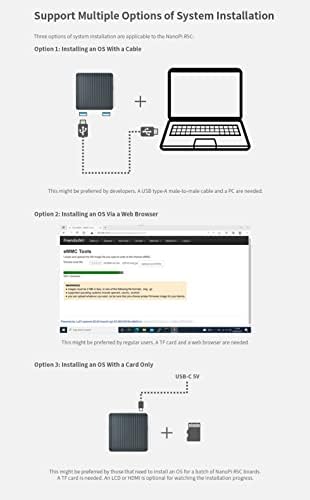

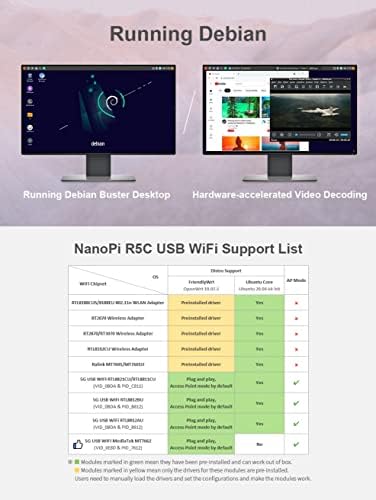

[OS/Software] NanoPi R5C Portable Router Running Android, FriendlyWrt 22.03(64-bit), Debian Buster Desktop (64-bit), FriendlyCore Focal Lite(Base on Ubuntu 20.04), Buildroot; Kernel version: Linux-5.10-LTS/U-boot-2017.09.
[4K Video Decoders and Encoders] NanoPi R5C mini portable travel Router support 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder.
[USER MANUAL] WiKi:”https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R5C”. Pls feel free to email us to get the Datasheet or any questions of this module after you purchased it. How to email us? Click ”forum.youyeetoo.com/” and ask a question.
