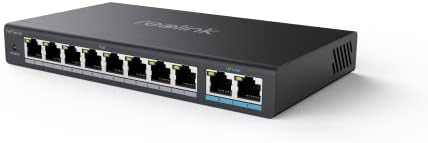

Reolink PoE Switch with 8 PoE Ports, 2 Gigabit Uplink Ports, 120W for All PoE Ports, Ideal for Reolink RLN36 NVR and Reolink PoE IP Cameras, IEEE802.3af/at, Metal Casing, Desktop/Wall Mount, RLA-PS1

Price: $249.98 - $69.99
(as of Apr 12, 2024 09:09:30 UTC – Details)

Product Description

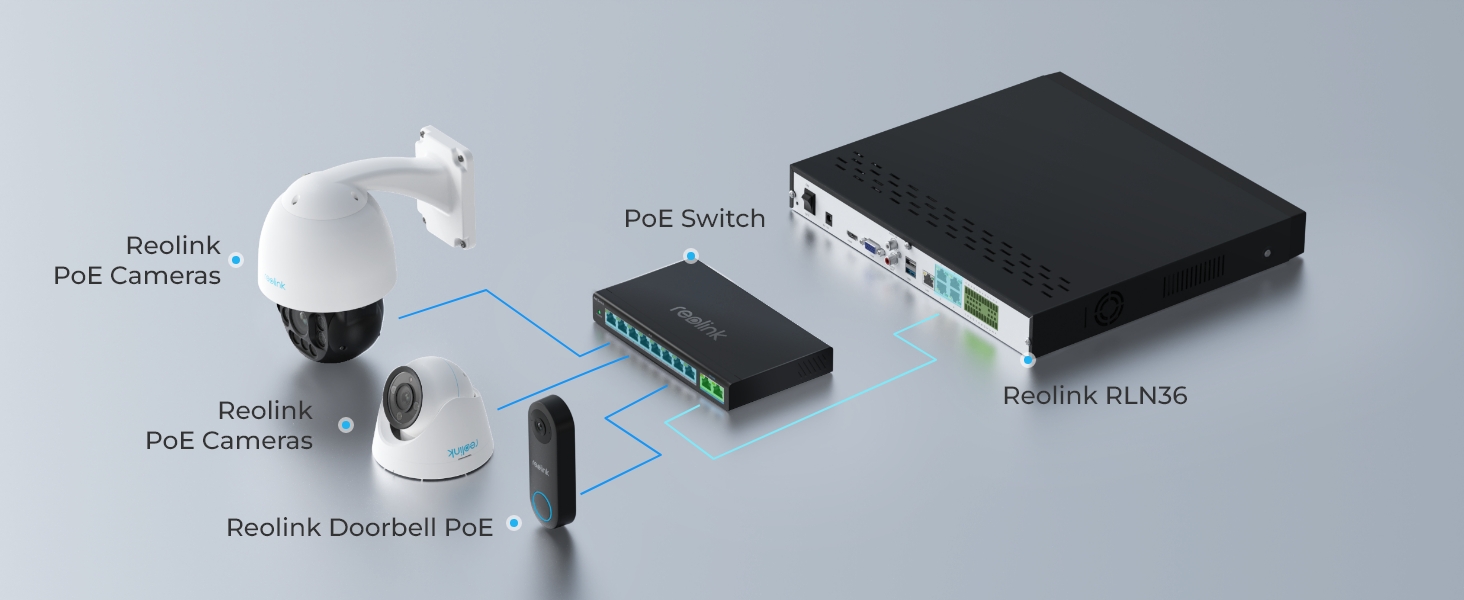

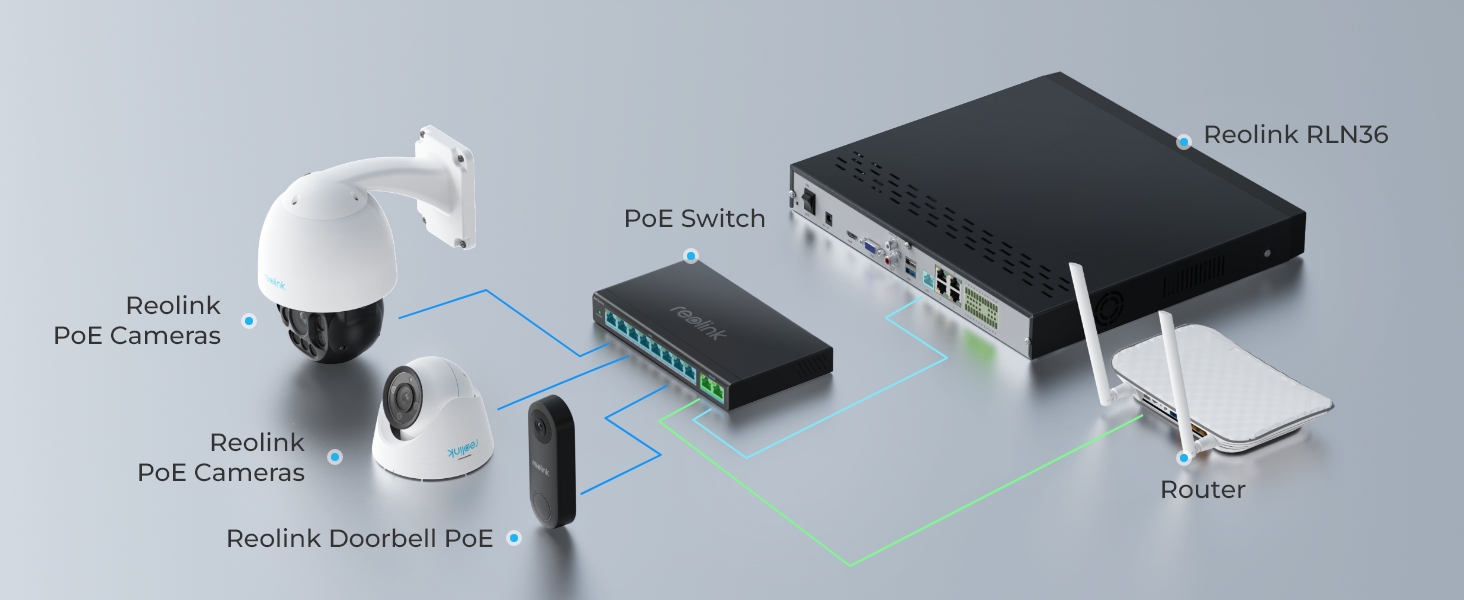

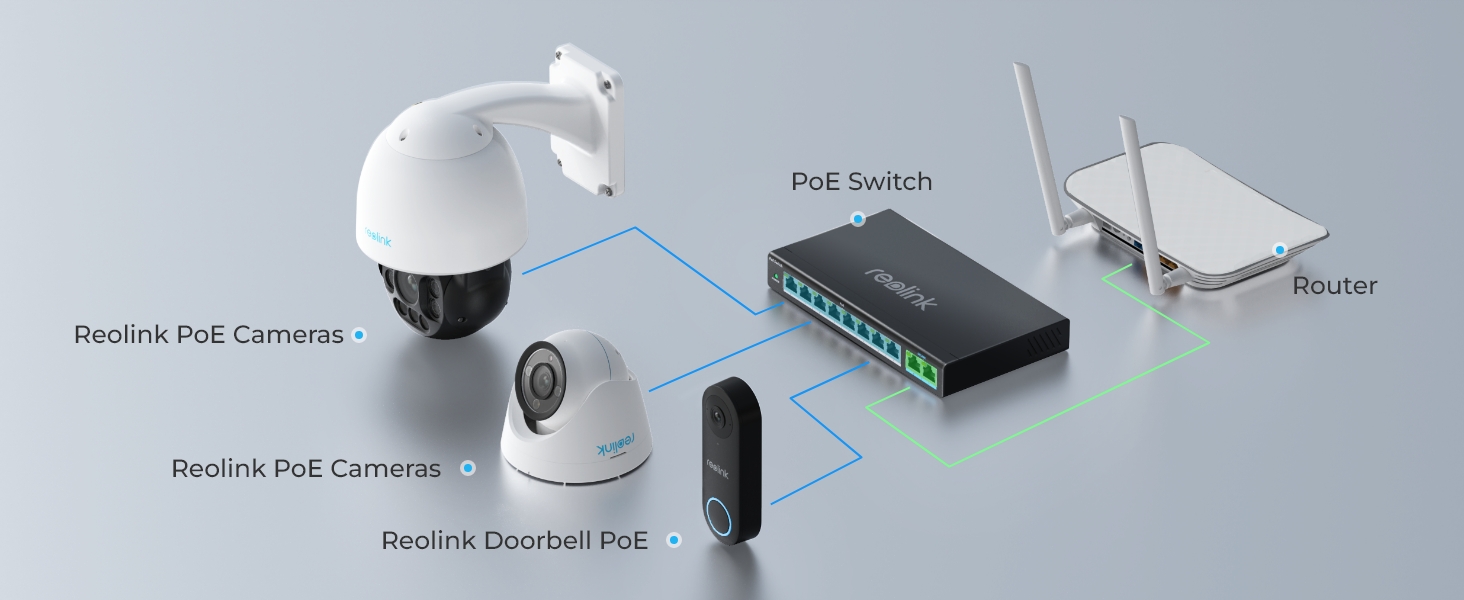

1 Connect without NVR 2 Directly Connect to NVR 3 Connect Same LAN as NVR

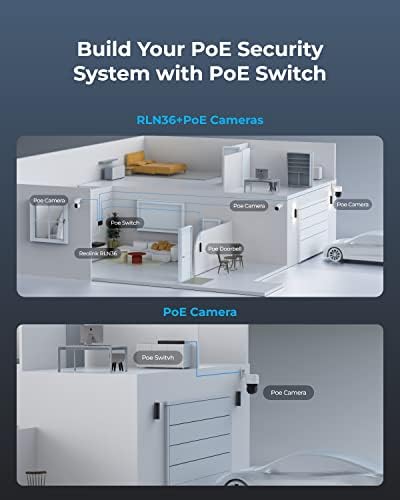

Build Your Own Reolink Security System

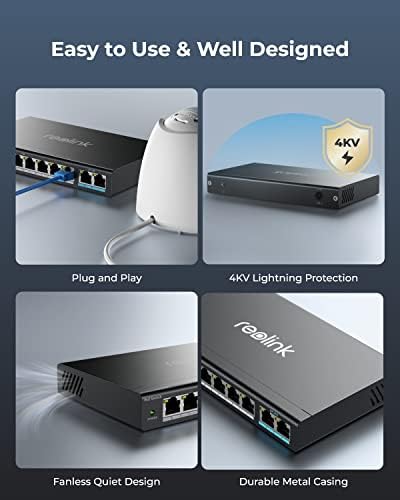

Durable Metal Casing

The interior components of the PoE switch are protected by high-quality metal casing to ensure a long product life.

Applying professional lightning protection, this PoE switch will effectively prevent the power of lightning strikes from damaging connected devices and ensure their long-term service.

Fanless design

The fanless design ensures quiet operation of the PoE switch.

Specifications for Reolink PoE Switch RLA-PS1 8 PoE Ports

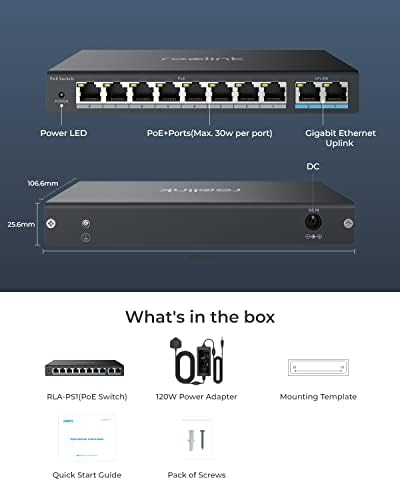

PoE Standard: IEEE 802.3af/ IEEE802.3at Compatible Devices: Compatible With IEEE 802.3af/at Compliant PDs Number of Ports: 8x PoE+ 10/100Mbps RJ45 Ports, 2x 10/100/1000Mbps RJ45 UPLINK Ports Power Consumption: 120W 52V/2.3A PoE Total Budget: 120W Max PoE Power Per Port: 30W Temperature: -10℃～45℃ Humidity: 10%~90%

Which Reolink cameras are compatible with this PoE switch?

Reolink PoE cameras(RLC-510A, RLC-520A, RLC-810A, RLC-820A, RLC-811A, RLC-822A, RLC-833A, RLC-823A, TrackMix PoE, Duo 2 PoE, etc) and other which supports IEEE802.3af/at could work with this Reolink RLA-PS1 PoE switch.

What’s the maximum PoE distance between Reolink PoE cameras and this PoE Switch?

The maximum PoE distance between Reolink PoE cameras and this PoE Switch is 100 meters for data and power transmission, whether for IEEE 802.3af (PoE) or 802.3at (PoE+).

Can this PoE Switch realizes DHCP function / assign an IP address for my Reolink PoE Cameras?

The function of this PoE switch is to supply power to PoE devices, excluding the DHCP function, and can not assign IP address to POE devices. The PoE switch must be connected to a router or NVR.

How does the power management work?

When the total power output of connected devices exceeds 120W, the PoE switch will power off the devices one by one until the power output is below 120W. Therefore, we recommend connecting devices from 1 to 8 according to their importance.

Reolink PoE Products Comparison

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.2 out of 5 stars
895

4.3 out of 5 stars
146

4.3 out of 5 stars
310

4.1 out of 5 stars
107

4.0 out of 5 stars
112

4.4 out of 5 stars
373

4.4 out of 5 stars
485

Price

$119.99$119.99

$109.99$109.99

—

$139.99$139.99

$119.99$119.99

$159.99$159.99

$149.99$149.99

Resolution

8MP(3840×2160)

8MP(3840×2160)

8MP(3840×2160)

8MP(3840×2160)

8MP(3840×2160)

8MP(3840×2160)

8MP(3840×2160)

Smart Human/Vehicle Detection

✔

✔

✔

✔

✔

✔

✔

Zoom

5X Optical Zoom

3X Optical Zoom

5X Optical Zoom

Digital zoom

3X Optical Zoom

Digital zoom

Digital zoom

Pan Tilt

/

/

/

355°Pan, 90°Tilt

355°Pan, 50°Tilt

/

/

Night Vision

Up to 100ft

Up to 100ft

Up to 100ft

Up to 100ft

Up to 40ft

Up to 100ft

Up to 100ft

Color Night Vison

✔

✔

✘

✔

✔

✘

✘

Audio

2-way Audio

2-way Audio

Built-in microphone

2-way Audio

2-way Audio

Built-in microphone

Built-in microphone

Storage

SD Card or NVR (Not include)

SD Card or NVR (Not include)

SD Card or NVR (Not include)

SD Card or NVR (Not include)

SD Card or NVR (Not include)

SD Card or NVR (Not include)

SD Card or NVR (Not include)

Waterproof

✔

✔

✔

✔

✔

✔

✔

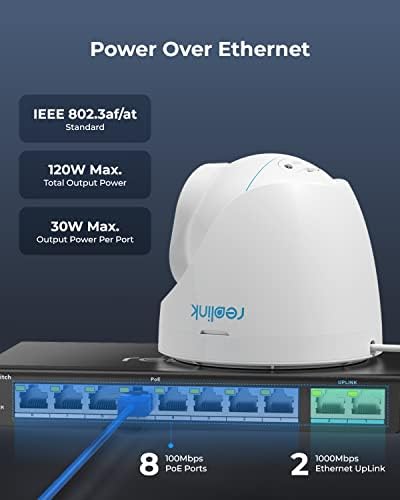

Power Over Ethernet: The 10-Port PoE switch provides a reliable PoE solution featuring 8 PoE ports (10/100Mbps) and 2 Gigabit Ethernet uplink ports (10/100/1000Mbps). Compliant with IEEE802.3af/at standard, it can deliver up to 30W for each PoE port and has a total power budget of 120W for at most 8 PoE devices.

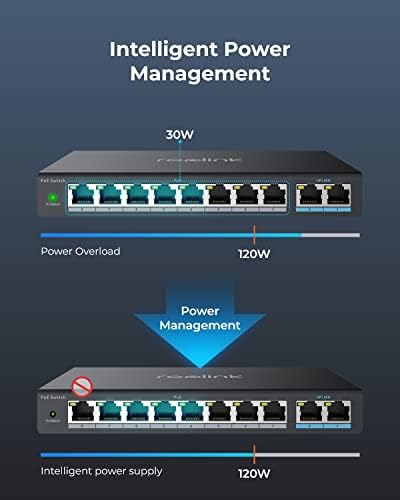

Intelligent Power Management: This PoE switch features the power management mechanism, so when the total allocated power exceeds the power budget (120W), the lower priority PoE port will be powered off one by one until the total power is below the threshold that the PoE switch is capable of supplying, which ensures the high priority PoE port’s power supply and protects the device from power overload.

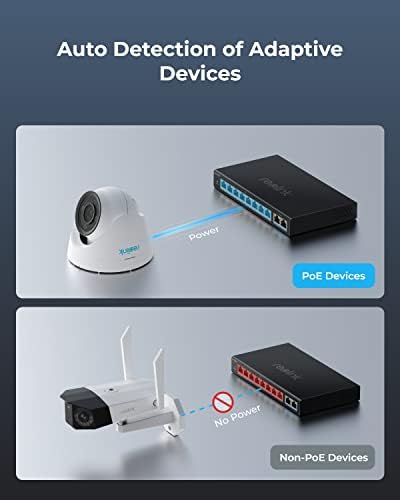

Auto Detection of Adaptive Devices: The PoE switch will automatically detect whether the device connected to its ports is a PoE device and whether it needs to be powered. To avoid damage, it will not supply power to non-PoE devices.
Plug and Play, Easy Set up: Reolink RLA-PS1 PoE switch works perfectly with your PoE cameras with only one Ethernet cable required. Easy to set up even for beginners. You can mount the PoE switch on the wall or desktop, perfect solution for a variety of environments.
Designed to meet your different needs: The PoE switch can be directly connected to your NVR for higher reliability and security, or it can be connected to the same LAN as your NVR to support more features of your cameras. If you don’t have an NVR, you can also connect your PoE camera and router directly through the PoE switch.
