Thermal Grizzly – Delid-Die-Mate – Intel 13th Gen CPU Delid Tool – Processor Heatspreader Removing Tool – Delidding Tool Developed by der8auer – Enhances Cooling

Price: $79.99 - $74.99
(as of Aug 29, 2024 22:02:18 UTC – Details)

Product Description

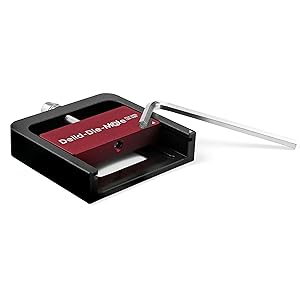

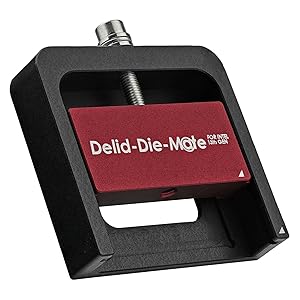

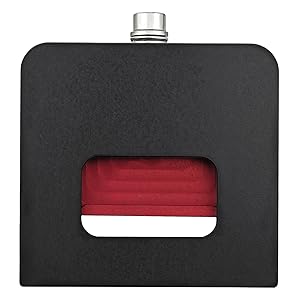

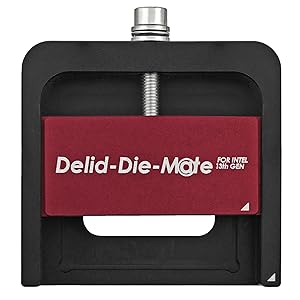

The Delid-Die-Mate Intel 13th Gen (12th/14th Gen compatible) is a tool for removing the heatspreader (delidding) on Intel processors for socket LGA1700

Advantage

By removing the heat spreader, the CPUs can be cooled via “Direct Die”, for example. With the so-called “Direct Die” method, the CPU cooler is mounted directly on the CPU dies and the I/O die of the processor. By omitting the heatspreader in the cooling circuit, a significantly optimised heat transfer from the die to the CPU cooler is possible.

Characteristics Compatible with 12th/13th/14th Intel Core generation Delidding tool Made from aluminium

Why “Delidding” & Direct Die method for Intel processors?

Delidding is the process of removing the processor’s heatspreader. On unsoldered processors, delidding is usually used to replace the thermal interface material (TIM) between the CPU die and the heatspreader with high-quality thermal paste or liquid metal before the heatspreader is remounted.

However, since the 13th generation Intel Core processors are soldered, this is not an option, as removing the indium solder would create too large a gap between the IHS and CPU dies.

Therefore, the 13th Gen Intel Core CPUs are primarily delidded for possible mounting of the CPU cooler directly on the CPU dies. By omitting the heatspreader and mounting the CPU cooler directly on the dies, experience shows that temperatures can be reduced by 10-15 °C if liquid metal such as Conductonaut is used as TIM. A corresponding test with an Intel Core i9-13900K was carried out by content creator and Tech-YouTuber Roman “der8auer” Hartung, professional overclocker and engineer.

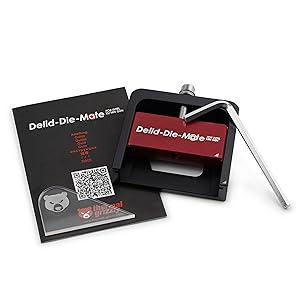

Scope of delivery

Delid-Die-Mate Intel 13th Gen

1x Thermal Grizzly Delid-Die-Mate for Intel 13th Gen processors

Manual & Tools

1x Manual

1x Wrench

1x Cleaning Tool

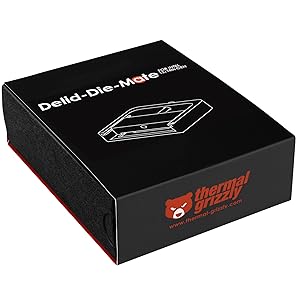

Box

A reusable box for safe and protected storage

DER8AUER DELIDDING TOOL – Compatible with 12th/13th Intel Core generation, developed by Roman “der8auer” Hartung
DURABILITY AND AESTHETICS – Made from black and red anodized aluminum
REMOVES THE HEATSPREADER – Enables more ecient “Direct Die” cooling, resulting in temperature reduction by 10-20°C
IMPROVED COOLING PERFORMANCE – Facilitates better heat dissipation, enhancing the overall cooling eciency of the CPU
EFFORTLESS INSTALLATION – Designed for easy and hassle-free operation, making the delidding process straightforward and efficient
