Thermal Grizzly – Lapping-Tool for Intel 13th/14th Gen CPU Processors – Simple Grinding/Lapping of The Processors Heatspreader – Tool developed by der8auer

Price: $23.99
(as of Sep 10, 2024 22:02:13 UTC – Details)

Product Description

Thermal Grizzly Lapping-Tool For Intel 13th/14th Gen CPU Contact Frame

The Lapping-Tool for Intel’s 13th/14th Gen processors allows the heat spreader to be safely lapped. The CPU is simply mounted on the lapping tool using the enclosed screws. The tolerances of the lapping tool allow the heat spreader to be ground down by 0.2 millimetres. The 13th Gen Lapping Tool is compatible with Intel 12th an 14th Generation Core CPUs. Sandpaper in grit sizes 400, 1200 and 2,500 is included.

Characteristics Simplifies the lapping of the CPU For Intel Core 13th/14th Gen (Compatible with 12th Gen) CNC-milled acrylic glass Complete set with sandpaper Single use recommended

How to use

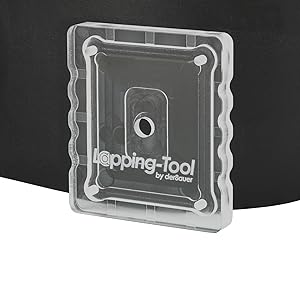

On the lapping tool, there are ridges on the acrylic glass around the CPU. These ridges are 0.2 millimetres high. When the ridges are completely removed, stop sanding.

Compatibility

Processors of the 13th/14th generation are compatible with the 13th/14th Gen Contact Frame as long as they are not ground down more than 0.2 millimetres. The 13th/14th Gen Lapping-Tool is compatible with Intel 12th Generation Core CPUs.

For the largest possible contact area between the IHS and the base plate of the CPU cooler, the latter should also be ground. The lapping tool for Intel’s 13th/14th Gen CPUs comes with a total of three sheets of sandpaper. The enclosed sandpaper has grits of 400, 1200 and 2,500 (one sheet each). The lapping tool for Intel’s 13th/14th Gen CPUs is intended for single use, but can also be used several times. When using multiple times, be especially careful not to sand too much material off the IHS.

Technical specifications

Length: 65 mm Width: 58 mm Height: 9 mm Material: acrylic glass Color: transparent

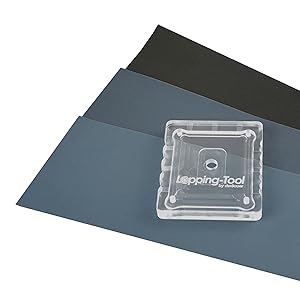

Scope of delivery

Lapping-Tool

The Lapping-Tool specially designed for the Intel 13th/14th Gen Contact Frame

3x Sanding Paper

1x Sanding paper 400 grit

1x Sanding paper 1.200 grit

1x Sanding paper 2.500 grit

Manual & Tools

1x Manual

4x Screws

1x Wrench

4x PU Washer

Bag

An airtight sealable and reusable package

Product Dimensions ‏ : ‎ 3.94 x 1.97 x 0.5 inches; 1.94 ounces
Item model number ‏ : ‎ TG-LT-i13G
Date First Available ‏ : ‎ May 18, 2023
Manufacturer ‏ : ‎ Thermal Grizzly
ASIN ‏ : ‎ B0C5NWKGKD

DESIGNED FOR INTEL 13TH/14TH GEN CONTACT FRAME – Specifically developed to seamlessly work with the Intel 13th/14th Gen Contact Frame
SIMPLIFIES CPU GRINDING – Streamlines the process of grinding the CPU, making it easier and more efficient
PROTECTS THE INTEL 13TH/14TH GEN CONTACT FRAME – Safeguards the delicate Contact Frame during the grinding process
COMPLETE SET WITH SANDPAPER – Includes a comprehensive set of sandpaper, providing all the necessary tools for the task
DEVELOPED BY DER8AUER – Designed by Roman “der8auer” Hartung, a renowned overclocker from Germany, known for his expertise in the field
