TOP1 5.65inch 7-Color e-Paper E-Ink Display Module for Raspberry Pi Pico, 600 × 448 Resolution Screen Advanced Color ePaper (ACeP) Technology, Low Power Wide Viewing Angle

Price: $65.99
(as of Apr 07, 2024 18:47:00 UTC – Details)

5.65inch 7-Color E-Paper E-Ink Display Module For Raspberry Pi Pico, 600×448 Pixels, ACeP 7-Color,Low Power Consumption, Wide Viewing Angle, Paper-Like Displaying Without Electricity

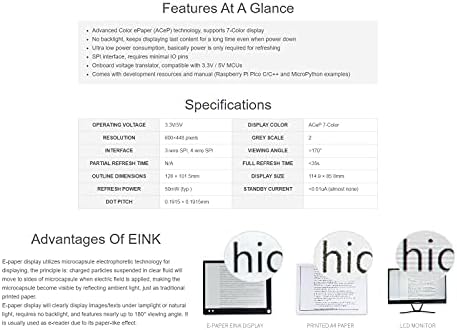

Features

• Advanced Color ePaper (ACeP) technology, supports 7-Color display
• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• SPI interface, requires minimal IO pins
• Onboard voltage translator, compatible with 3.3V / 5V MCUs
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

• OPERATING VOLTAGE:3.3V/5V
• DISPLAY COLOR:ACeP 7-Color
• RESOLUTION:600×448 pixels
• GREY SCALE:2
• INTERFACE:3-wire SPI, 4-wire SPI
• VIEWING ANGLE:>170°
• PARTIAL REFRESH TIME:N/A
• FULL REFRESH TIME:<35s
• OUTLINE DIMENSIONS:128 × 101.5mm
• DISPLAY SIZE:114.9 × 85.8mm
• REFRESH POWER:50mW (typ.)
• STANDBY CURRENT:<0.01uA (almost none)
• DOT PITCH:0.1915 × 0.1915mm

PACKAGE CONTENT

• Pico-ePaper-5.65 x1
• Standoff pack x1

NOTE:Raspberry Pi Pico is NOT included.

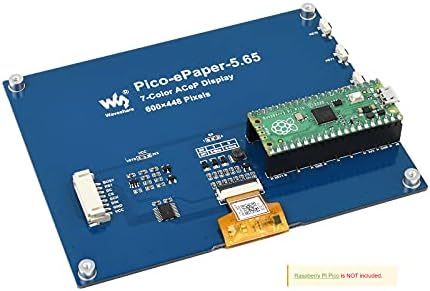

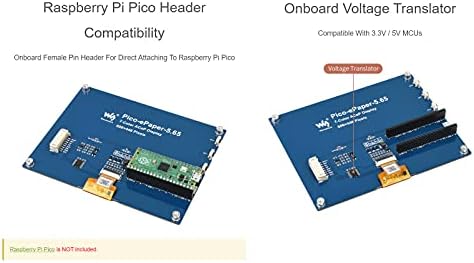

Raspberry Pi Pico Header Compatibility. Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

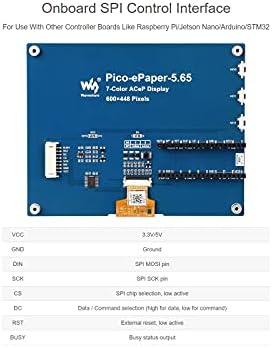

Onboard SPI Control Interface. For Use With Other Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32
Advanced Color ePaper (ACeP) technology, supports 7-Color display
Onboard Voltage Translator. Compatible With 3.3V / 5V MCUs
Applications: Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags…
