VSDISPLAY HD-MI DVI VGA Audio LCD Controller Board for 17″ 17 inch M170ETN01 1 WYD170SKD 01 LVDS 30 PIN LCD Display, for Mod Machine (m170etn011 m170etn01.1 M170QGBN30-01B CD170A54-01)

Price: $24.99
(as of Apr 03, 2024 06:40:14 UTC – Details)

LCD Controller Board:
HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 3A.
Come In Standby Model When Not Input Signal
Standby Model <1W

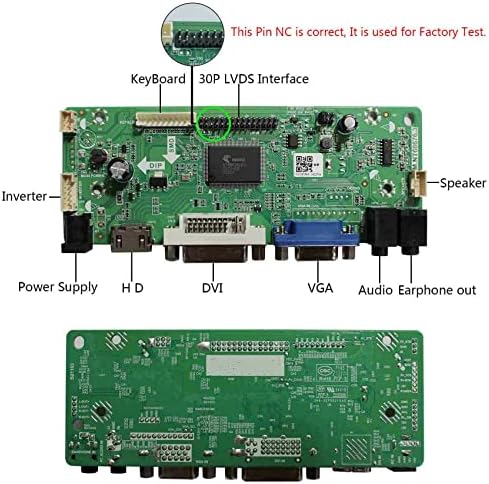

Video Input: HD-MI DVI VGA
Audio Input: HD-MI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

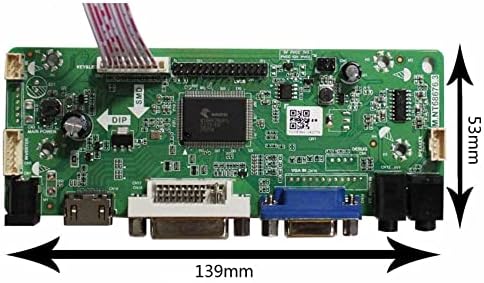

Board Size: 139mm x 53mm x 17mm


The Controller Board Fit To DIY Kit
17” 1280×1024 M170ETN01.1 WYD170SKD-01 M170QGBN30-01B CD170A54-01 A-E00171102-G

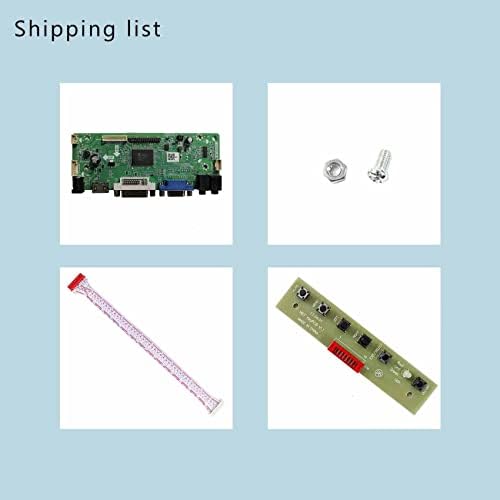

Packing list :

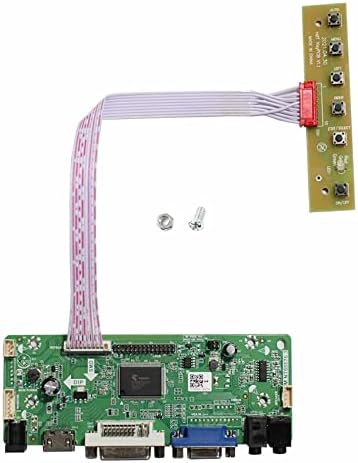

1× HD-MI VGA DVI LCD Controller Board M.NT68676.3 (new version)

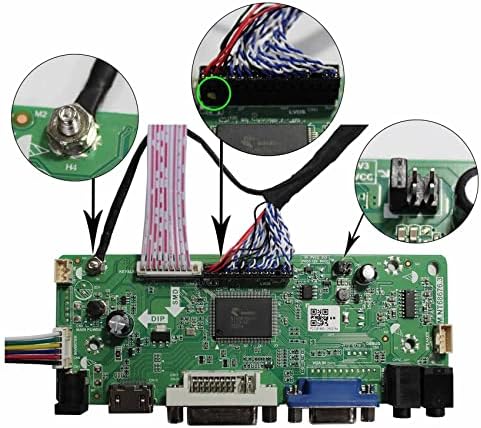

1× Screw And Nut For GND Connection
1× Keyboard With Cable


Note:The controller board does not support flipping the image.


SATISFACTION GUARANTEE:
We care for every customer’s feeling.If this product does not meet or exceed your expectations,please
contact us for refund or replacement.
Perfectly work with monitor M170ETN01 1,M170QGBN30-01B,CD170A54-01 or WYD170SKD 01,A-E00171102-G. It can be used to mod the machines.You can upgrade the cabinet, and use this for the screen conversion. (Please make sure your LCD screen model is M170ETN01 1 or WYD170SKD 01.The model label is usually pasted to the back of the LCD screen. It may need to open the back cover to check the LCD screen model.)
Compatible speaker for this controller board: VSDISPLAY Speaker 8ohm 2W 70mmx33mmx15mm 4Pin Cable for LCD Controller Board M.NT68676.3 (new version) and Other Monitor Driver Board which Have PH2.0 Speaker Connector. ASIN:B07VRYWMDR
Recommend Power Adapter Spec. 12Vdc More than 2A. Connector: 5.5mmx2.1mm. VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output ,Power Supply, US Plug , Fit SC24W-1202000U, Fit for All Types of VSDISPLAY LCD Controller Board ASIN:B07ZNJB5BB (Please note the voltage must be 12V DC. Other voltages may damage the controller board or fail to power on the controller board. The current is recommended to exceed 2A, if the current is too low, the LCD screen may cannot be lighted up.)
Video Input: HD-MI DVI VGA ,Audio Input: HD-MI ,Audio Output: Speaker 4pin Connector. Board Size: 139mmx53mmx17mm (5.47in x 2.09in x 0.67in).
Packing list : 1× HD-MI VGA DVI LCD Controller Board M.NT68676.3 (new version), 1× Screw And Nut For GND Connection, 1× Keyboard With Cable.There is no power adapter,speaker or board case in the packing list. If need , you can get them from VSDISPLAY store (Power Adapter ASIN:B07ZNJB5BB Speaker ASIN:B07VRYWMDR Board Case ASIN:B07XDYZJZW) . Any question,please feel free to contact us.
