waveshare 1.28 inch Round LCD Display for Arduino/Jetson Nano/Raspberry Pi/STM32, 240×240 IPS Screen Monitor 65K RGB Colors, Using SPI Bus, Embedded GC9A01 Driver

Price: $20.59
(as of Apr 03, 2024 14:12:17 UTC – Details)

Overview

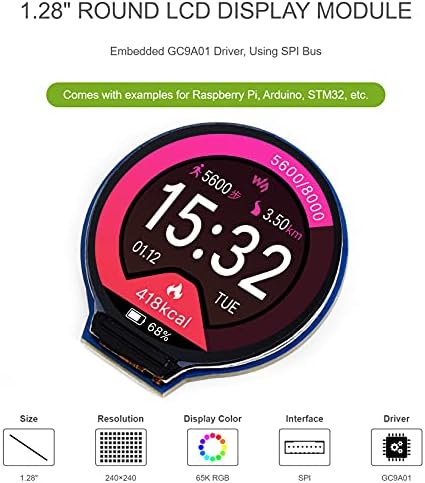

1.28 inch Round LCD Display Module, IPS screen, 65K RGB colors, 240×240 resolution, using SPI bus, embedded GC9A01 driver, comes with examples for Raspberry Pi, Arduino, STM32, etc.

Features
1. 240×240 resolution, 65K RGB colors, clear and colorful displaying effect

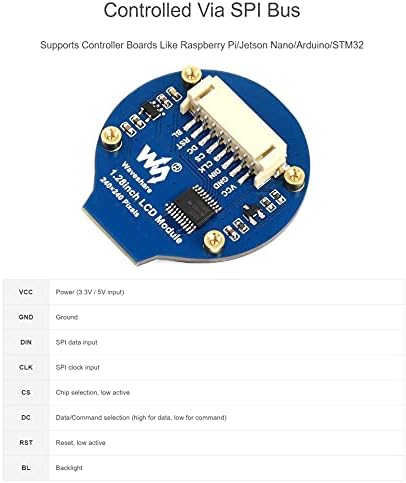

2. This 1.28 inch Round LCD Display uses a 4-line SPI interface for reducing GPIO and fast speed, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32.
3. The driver used in this LCD is GC9A01, with a resolution of 240RGB×240 dots and 129600 bytes of GRAM inside. This LCD supports 12-bits/16-bits/18-bits data bus by MCU interface, which are RGB444, RGB565, RGB666.
4. Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Specification
Operating voltage: 3.3V/5V
Interface: SPI
LCD type: IPS
Controller: GC9A01
Resolution: 240(H)RGB x 240(V)
Display size: Φ32.4mm
Pixel size: 0.135（H）x0.135（V）mm

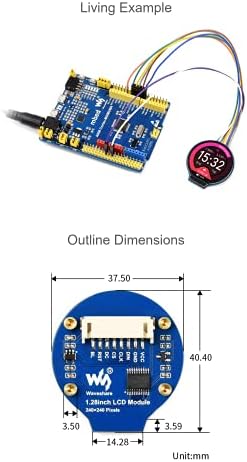

Dimension: 40.4×37.5(mm)Φ37.5(mm)

Package Content
1.28inch LCD Module x1
20cm cable x1

Note
Development Resources and Technical Support are provided, please contact us if you have any problem.

1.28″ LCD 240×240 round high-definition screen display module for Raspberry Pi/Jetson Nano/Arduino/STM32
65K RGB colors monitor, IPS screen, clear and colorful displaying effect
Controlled via 4-wire SPI Bus, minimizes required IO pins, embedded GC9A01 driver, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
Operating voltage: 3.3V/5V, Dimension: 40.4×37.5(mm) Φ37.5(mm)
Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
