waveshare 1.28inch Round LCD Display Module with Touch Panel, 240×240 Resolution, IPS, SPI and I2C Communication

Price: $26.99
(as of Apr 03, 2024 03:48:10 UTC – Details)

Product Description

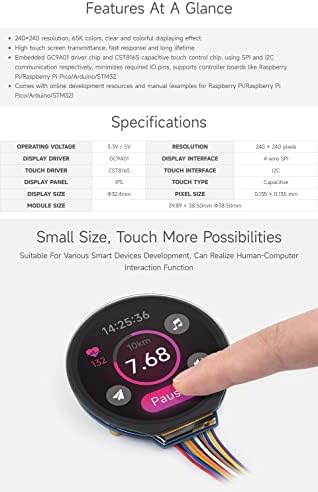

Features At A Glance

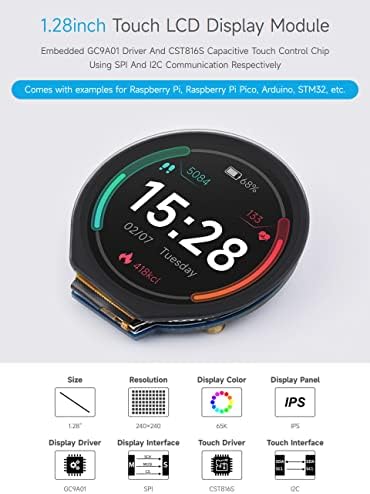

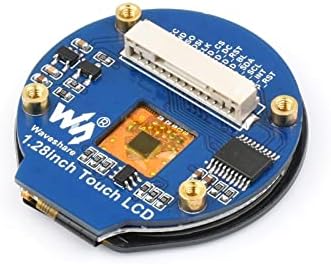

240×240 resolution, 65K colors, clear and colorful displaying effectHigh touch screen transmittance, fast response and long lifetimeEmbedded GC9A01 driver chip and CST816S capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, compatible with Raspberry Pi/Raspberry Pi Pico/STM32 controller boardsWith online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/STM32) Usage Manual: waveshare.com/wiki/1.28inch_Touch_LCD?amazon

Specifications

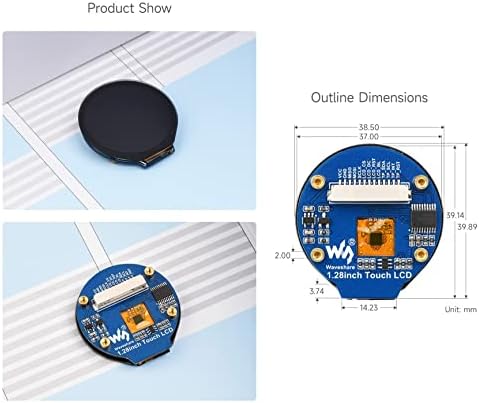

OPERATING VOLTAGE 3.3V / 5V DISPLAY DRIVER GC9A01 TOUCH DRIVER CST816S DISPLAY PANEL IPS DISPLAY SIZE Φ32.4mm RESOLUTION 240 × 240 pixels DISPLAY INTERFACE 4-wire SPI TOUCH INTERFACE I2C TOUCH TYPE Capacitive PIXEL SIZE 0.135 × 0.135 mm MODULE SIZE 39.89 × 38.50mm Φ38.50mm

Provide electronic development resources and manual, please check it carefully before using.

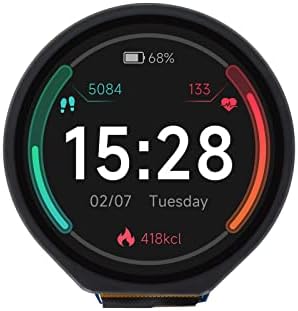

240×240 resolution, 65K colors, clear and colorful displaying effect
High touch screen transmittance, fast response and long lifetime

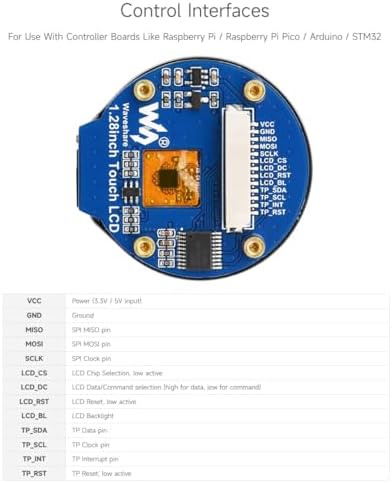

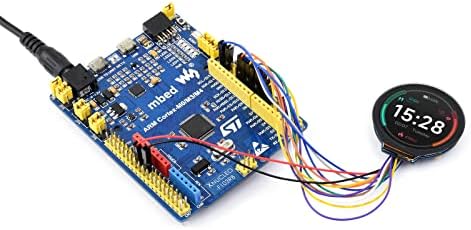

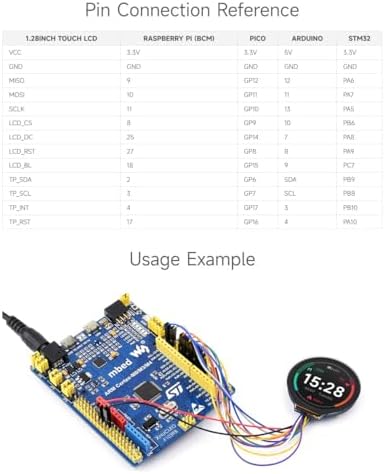

Embedded GC9A01 driver chip and CST816S capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi/Raspberry Pi Pico/STM32
