waveshare 1.3inch LCD Display Module for Raspberry Pi Pico, 240×240 Resolution IPS Screen Display 65K RGB Display Color, SPI Interface with 1x Joystick and 4X User Buttons for Easy Interacting

Price: $13.19
(as of Apr 03, 2024 07:48:12 UTC – Details)

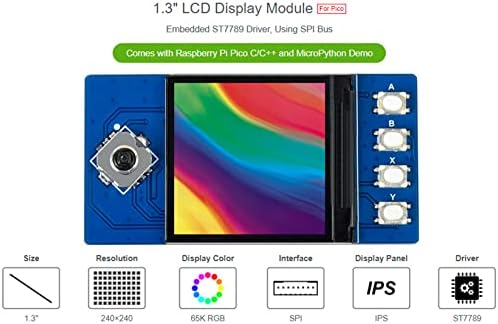

1.3inch LCD Display Module for Raspberry Pi Pico, 65K RGB Colors, 240×240 pixels, SPI Interface
Features

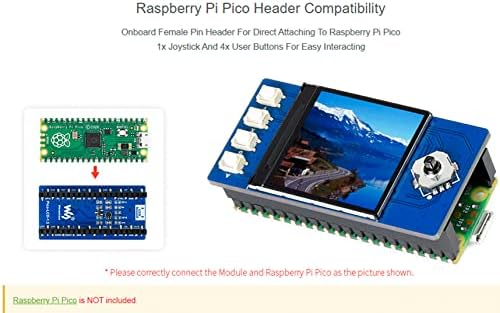

240×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect SPI interface, requires minimal IO pins Raspberry Pi Pico header compatibility:onboard female pin header for direct attaching to Raspberry Pi Pico 1x joystick and 4x user buttons for easy interacting Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

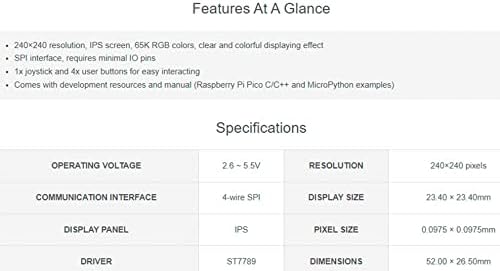

Specifications
Operating voltage :2.6 ~ 5.5V
Resolution : 240×240 pixels
Communication Interface: 4-wire SPI
Display size:23.40 × 23.40mm
Display Panel: IPS
Pixel size: 0.0975 × 0.0975mm
Driver: ST7789

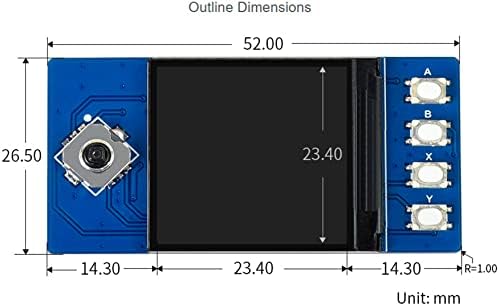

Dimensions : 52.00 × 26.50mm

LCD and the controller

The ST7789VW is a single-chip controller/driver for 262K-color, graphic type TFT-LCD. It consists of 240 source line and 320 gate line driving circuits. The resolution of this LCD is 240 (H) RGB x 240 (V), it supports horizontal mode and vertical mode, and it doesn’t use all the RAM of the controller.
This LCD accepts 8-bits/9-bits/16-bits/18-bits parallel interface, that are RGB444, RGB565, RGB666. The color format used in demo codes is RGB565.
This LCD uses a 4-line SPI interface for reducing GPIO and fast speed.

Online Document/ User Manual
//bit.ly/3SqHLCc

Package Content
Pico-LCD-1.3 x1

1.3inch LCD Display Module for Raspberry Pi Pico,embedded ST7789 driver, using SPI bus
240×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
4-wire SPI interface, requires minimal IO pins
Onboard 1x joystick and 4x user buttons for easy interacting
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
