Waveshare 1.54 Inch E-Ink Display HAT Epaper Display 200×200 Black White Color E-Paper Screen for Raspberry Pi 4B+ 4B 3B+ 3B 2B+ Zero Jetson Nano Ardui SPI Interface

Price: $19.50
(as of Apr 03, 2024 18:46:18 UTC – Details)

Overview

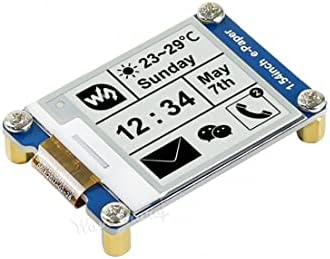

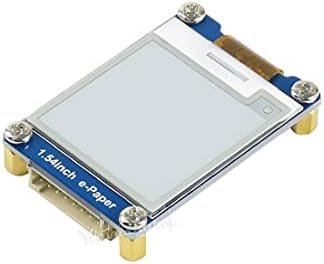

This is an E-Ink display module, 1.54inch, 200×200 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications
such as shelf label, industrial instrument, and so on.

Specifications

Operating voltage: 3.3V/5V

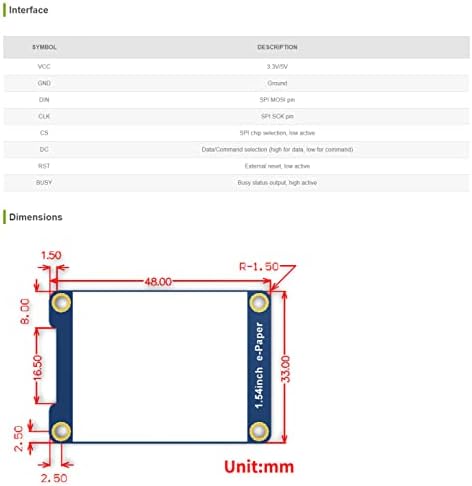

Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 48mm × 33mm
Display size: 27.6mm × 27.6mm
Dot pitch: 0.138 × 0.138
Resolution: 200 × 200
Display color: black, white
Grey level: 2
Partial refresh time: 0.3s
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

Package include

1. 1.54inch e-Paper Module x1
2. PH2.0 20cm 8Pin x1

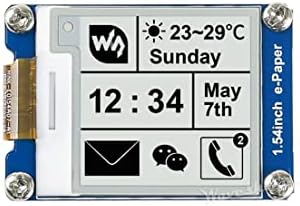

The 1.54 inch e-paper display no backlight, keeps displaying last content for a long time even when power down
This e-ink display monitor comes with SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
The 1.54inch eink screen has onboard voltage translator, compatible with 3.3V/5V MCUs
This waveshare 1.54” epaper HAT is ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Ardui/STM32), just feel free to contact us if you need technical support.
