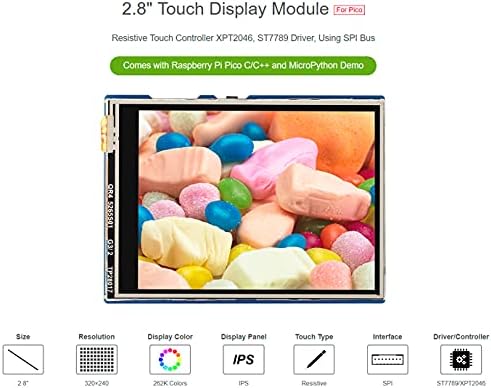

waveshare 2.8inch Resistive Touch Display Module for Raspberry Pi Pico, 320×240 Pixels IPS LCD Screen,Touch Controller XPT2046, SPI Interface, 262K Display Color

Price: $24.49
(as of Apr 04, 2024 02:46:14 UTC – Details)

Overview
2.8inch Touch Display Module for Raspberry Pi Pico, 262K Colors, 32×240 pixels, SPI Interface,resistive touch controller XPT2046, ST7789 driver, using SPI bus

Features
320×240 resolution, IPS screen, 262K colors, clear and colorful displaying effect
Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
MicroSD card slot for storing images and direct displaying them easily, Programable backlight control, power saving, Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

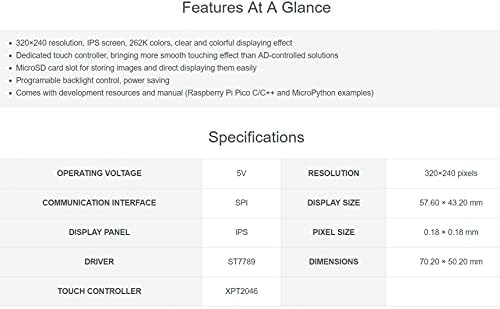

Specifications
Operating voltage: 5V
Resolution: 320×240 pixels
Communication Interface: SPI
Display Panel: IP
Driver: ST7789
Touch Controller: XPT2046
Display size: 57.60 x 43.20 mm
Pixel size: 0.18 x 0.18 mm

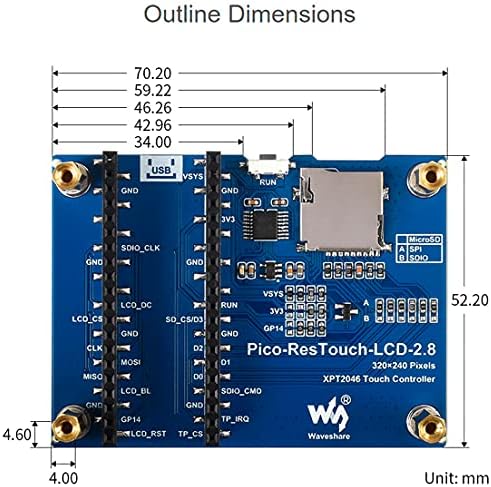

Dimensions: 70.20 x 50.20 mm

User Manual/Online Document
://bit.ly/3TqSeyE

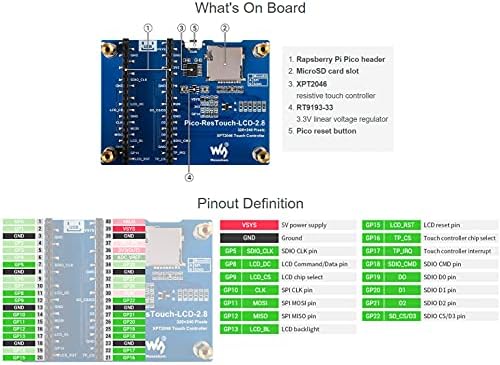

Pin

The built-in controller used by this LCD is ST7789VW, which is an LCD controller with 240 x RGB x 320 pixels, while the pixels of this LCD itself are 240 (H) RGB x 320 (V), and the internal RAM of the LCD has been fully used. The LCD supports 16-bit or 18-bit input color formats per pixel, namely RGB565, and RGB666. The test demo uses RGB565 color format, which is a commonly used RGB format. LCD uses a four-wire SPI communication interface, which can greatly save GPIO ports, At the same time, the communication speed will be faster. The maximum SPI write speed tested is 60MHz.

Package Content
Pico-ResTouch-LCD-2.8 x1
Standoffs pack x1

2.8inch Touch Display Module for Raspberry Pi Pico,resistive touch controller XPT2046, ST7789 driver, using SPI bus
320×240 resolution, IPS screen, 262K colors, clear and colorful displaying effect
Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
MicroSD card slot for storing images and direct displaying them easily
Programable backlight control, power saving
