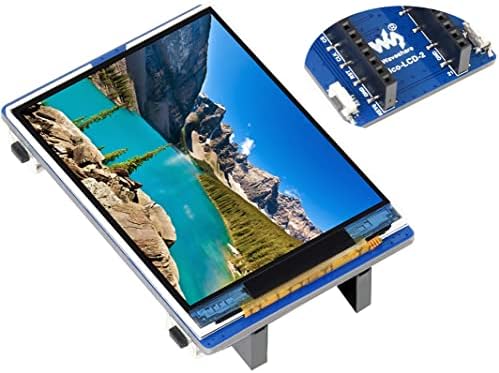

waveshare 2inch LCD Display for Raspberry Pi Pico, 65K RGB Colors 320×240 Pixels IPS Screen, SPI Interface

Price: $19.89
(as of Apr 05, 2024 06:33:49 UTC – Details)

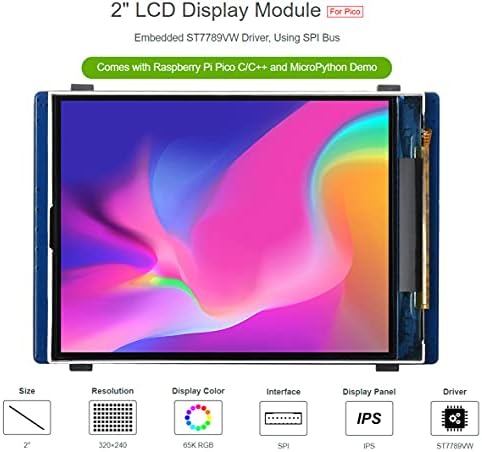

2inch LCD Display Module for Raspberry Pi Pico, 65K RGB Colors, 320×240 pixels, SPI Interface

Features
320×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
SPI interface, requires minimal IO pins
4x user buttons for easy interacting
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

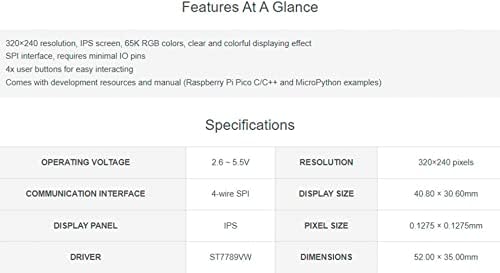

Specifications
Operating voltage: 2.6 ~ 5.5V
Resolution: 320×240 pixels
Communication Interface: 4-wire SP

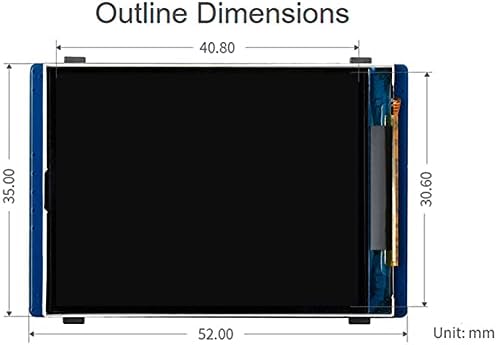

Display size: 40.80 x 30.60mm
Display Panel: IPS
Pixel size: 0.1275 x 0.1275mm
Driver: ST7789VW
Dimensions: 52.00 x 35.00mm

Online Document/ User Manual
://bit.ly/3gXpKyi

LCD & Controller

The built-in controller used in this LCD is ST7789VW, which is an LCD controller with 240 x RGB x 320 pixels, while the pixels of this LCD itself are 240 (H) RGB x 320 (V), and the internal RAMYIJ of the LCD has been fully used.
The LCD supports 12-bit, 16-bit, and 18-bit input color formats per pixel, namely RGB444, RGB565, and RGB666 three color formats, this demo uses RGB565 color format, which is also a commonly used RGB format.
The LCD uses a four-wire SPI communication interface, which can greatly save the GPIO port, and the communication speed will be faster.

PACKAGE CONTENT

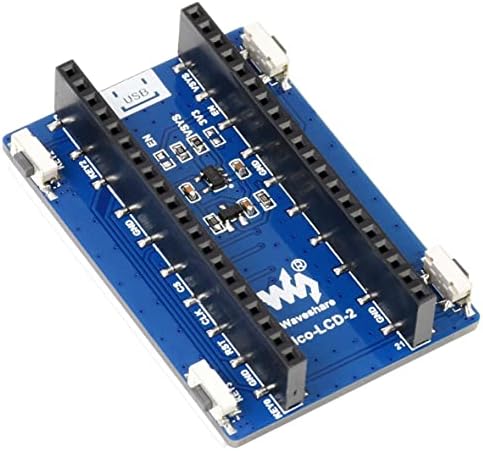

Pico-LCD-2 x1

320×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
SPI interface, requires minimal IO pins
4x user buttons for easy interacting. 6 ~ 5.5V Operating voltage .
IPS Display Panel. ST7789VW Driver.
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
