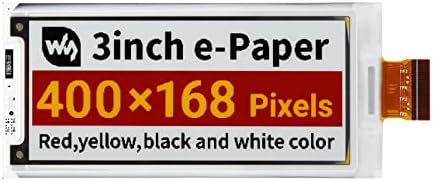

Waveshare 3inch E-Paper (G) Raw Display Compatible with Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/WH/Zero 2W 400×168 Resolution SPI Interface Supports Jetson Nano

Price: $19.99
(as of Apr 03, 2024 17:38:16 UTC – Details)

Product Description

Features At A Glance

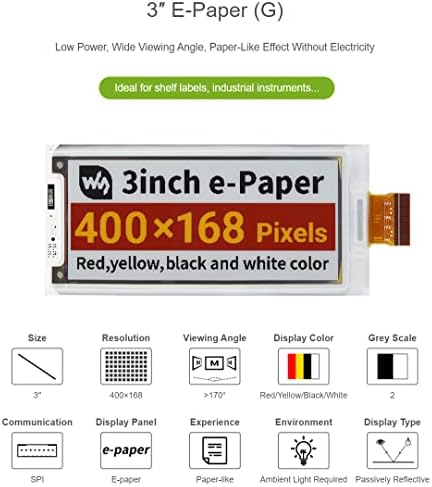

No backlight, keeps displaying last content for a long time even when power downUltra low power consumption, basically power is only required for refreshingComes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications

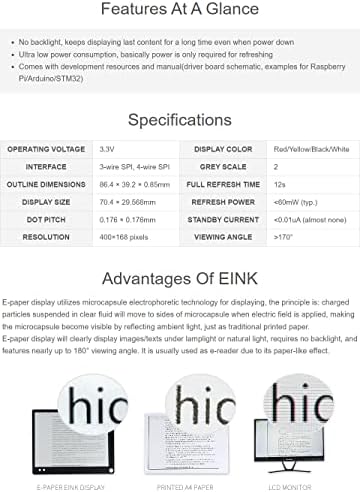

OPERATING VOLTAGE 3.3V INTERFACE 3-wire SPI, 4-wire SPI OUTLINE DIMENSIONS 86.4 × 39.2 × 0.85mm DISPLAY SIZE 70.4 × 29.568mm DOT PITCH 0.176 × 0.176mm RESOLUTION 400×168 pixels DISPLAY COLOR Red/Yellow/Black/White GREY SCALE 2 FULL REFRESH TIME 12s REFRESH POWER <60mW (typ.) STANDBY CURRENT <0.01uA (almost none) VIEWING ANGLE >170°

Feature

Dimension: 3 inchOutline dimension (raw panel): 45.5mm x 36.4mm x 0.91mmOutline dimension (driver board): 47mm x 38mmDisplay dimension: 29.568mm x 29.568mmWorking voltage: 3.3V/5VCommunication interfaces: SPIPixel pitch: 0.176 x 0.176mmResolution: 168 x 168Display color: Black, White, Yellow, RedGray level: 2Full refreshing time: 12 sRefresh Power Consumption: < 60 mW (typ.)Standby current: <0.01uA (close to0)

Note:

Refresh time: The refresh time is the experimental results, the actual refresh time will have errors, and the actual effect shall prevail. There will be a flickering effect during the global refresh process, this is a normal phenomenon.Power consumption: The power consumption data is the experimental results. The actual power consumption will have a certain error due to the existence of the driver board and the actual use situation. The actual effect shall prevail.

Working Principle

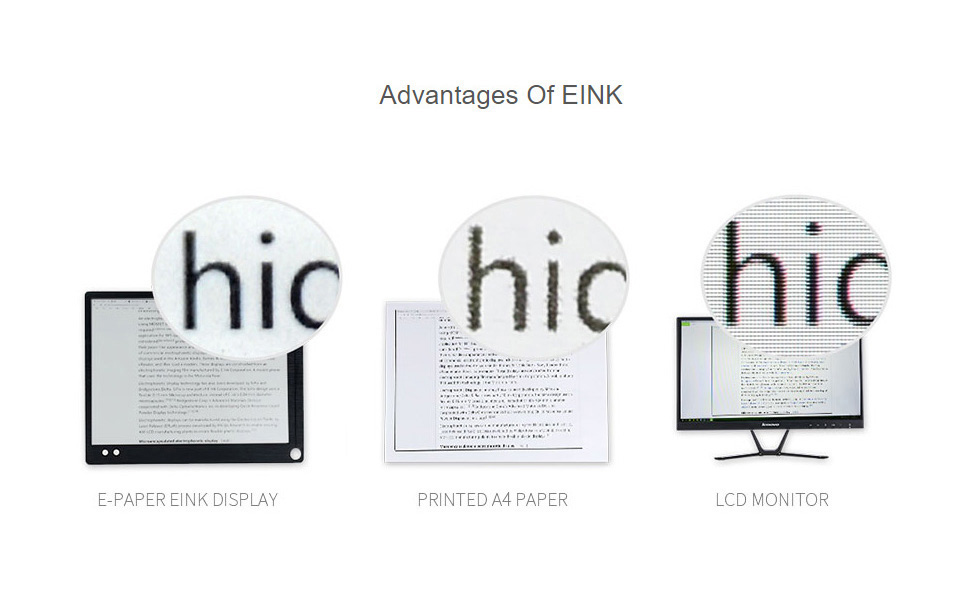

This product is an E-paper device adopting the image display technology of Microencapsulated Electrophoretic Display. The basic principle is that charged nanoparticles suspended in a liquid migrate under the action of an electric field. The E-paper screen display patterns by reflecting the ambient light, so it has no background light requirement. Under ambient light, the E-paper screen still has high visibility with a wide viewing angle of 180 degrees. It is the ideal choice for E-reading.

Provide online user manual, please check the manual carefully before using. With development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32).
Doesn’t support partial refresh. No backlight, keeps displaying last content for a long time even when power down.
Low power, wide viewing angle, paper-like effect without electricity. Ideal for price tags, shelf labels, industrial instruments…
Ultra low power consumption, basically power is only required for refreshing.
Red/Yellow/Black/White display color. Outline dimension (raw panel): 45.5mm x 36.4mm x 0.91mm.
