waveshare 7inch HDMI LCD (C) Capacitive Touch Screen Display Supports Various Systems for All Ver. Raspberry pi 4B/3B/3 B+/2 B/B+/B/A BB Black Banana Pi with Bicolor Case

Price: $52.99
(as of Apr 03, 2024 04:40:11 UTC – Details)

Product Description

Wiki: waveshare.com/wiki/7inch_HDMI_LCD_(C)?amazon

Overview

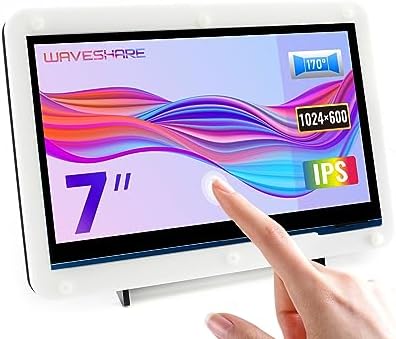

7-inch HDMI display, with a resolution of 1024×600 and a capacitive touch panel, which supports Raspberry Pi and can also be used as a computer monitor.

Features

7-inch IPS screen with a hardware resolution of 1024×600.5-points capacitive touch control.When used with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and RetropieUse as a computer monitor, it supports Windows 11 / 10 / 8.1 / 8 / 7, five-point touch, no need to install any drivers.Support backlight control, more power saving.

About the version

Rev4.1 version

Update the USB touch protocol to improve the compatibility.Brightness is adjustable by USB interface.Modify drive circuit for enhancing the anti-interference ability.Change the touch panel color to black.

Rev3.1 version

The Rev3.1 version mainly changes the touch chip of the Rev2.2 version from GT811 to GT911. The touch effect is better, and the anti-interference ability is enhanced at the same time.This version is fully compatible with Rev2.1 and Rev2.2, and users can replace it with confidence.

Rev2.2 version

Rev2.2 version mainly adds VCOM adjustable potentiometer and related circuits of electromagnetic compatibility on the basis of Rev2.1.This version is fully compatible with the Rev2.1 version, and users can replace it with confidence.

About the version

Rev2.1 version:

Upgrade to IPS screen, with the larger viewing angle and the clearer display effect, I believe you will like it.Use standard HID protocol, you can transplant your own system conveniently.Using with Raspberry Pi, it supports Raspbian / Ubuntu / Kali / Retropie and WIN10 IoT, single touch, no need to install any drivers.Using as a computer monitor, it supports Windows 10 / 8.1 / 8 / 7, five-point touch, no need to install any drivers.

Rev1.1 version:

Using private HID protocol, it is difficult to transplant to your own systemUsing with Raspberry Pi, you need to install a driver when the display connects to Raspbian or Ubuntu systems. and it doesn’t support Kali, Retropie, and Windows 10 IoT.

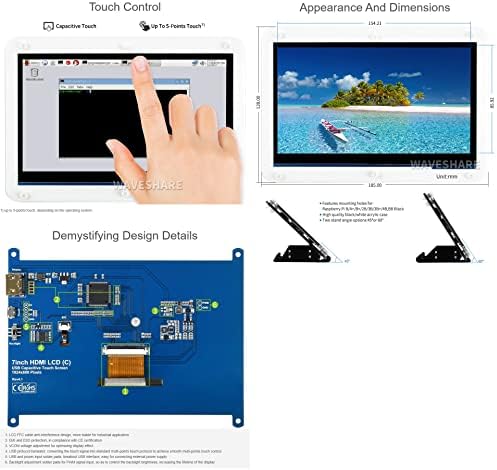

CD FFC cable anti-interference design, more stable for industrial applicationEMI and ESD protection, in compliance with CE certificationVCOM voltage adjustment for optimizing display effectUSB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch controlUSB and power input solder pads, breakout USB interface, easy for connecting external power supplyBacklight adjustment solder pads for PWM signal input, so as to control the backlight brightness, increasing the lifetime of the display

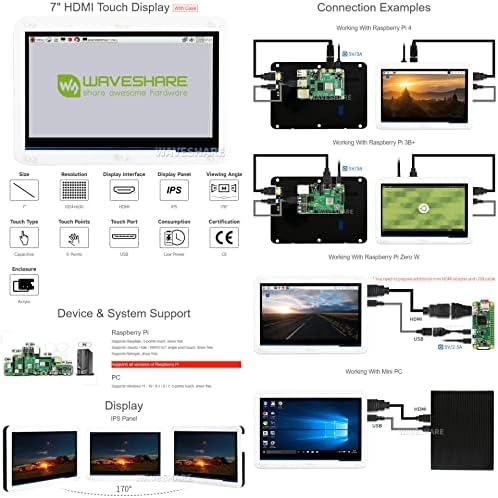

1024×600 high resolution,capacitive touch control,supports Raspberry Pi
Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
comes with Angstrom image
For other mini-PCs, driver is required and should be developed by users
Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
